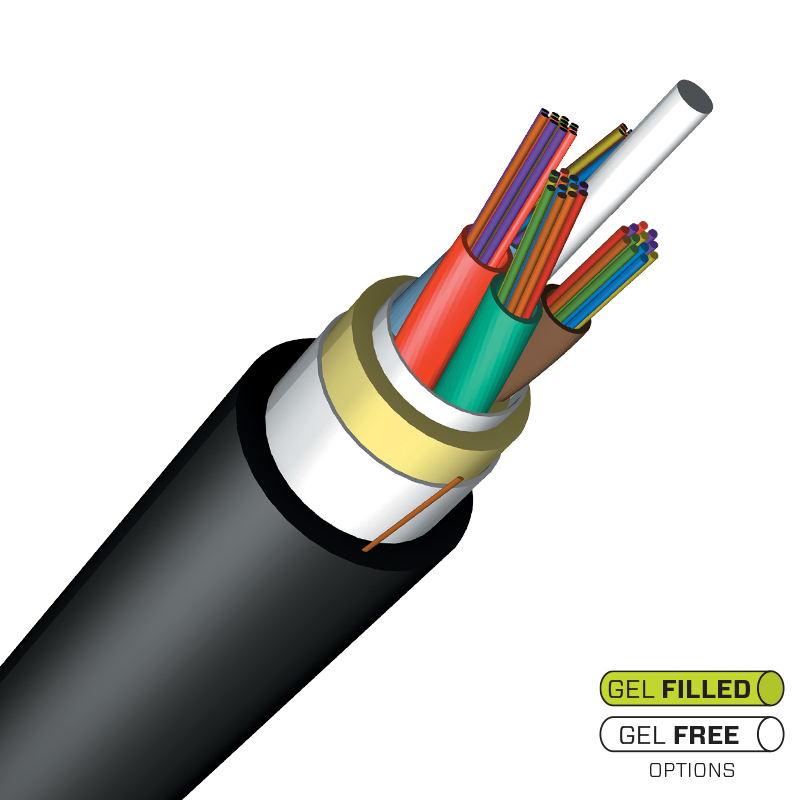

Flex-Span® ADSS Fiber Optic Cable

Flex-Span® ADSS Fiber Optic Cable
Features:

Gel-Filled Tubes are reverse-oscillated to allow slack for mid-span access – up to 288 fibers in cable
– Gel-Free Buffer Tube options available – up to 216 fibers

Pole-to-pole span lengths up to 1100 feet

Single jacket design decreases the diameter and weight when compared to double jacket ADSS cable; thus reducing pole loading

No separation requirement of ADSS from conductors per National Electric Safety Code (NESC) section 235

Build America/Buy America options available
Applications:

Electric utility distribution power lines
– Framed in supply or communications space

Underground duct

Enterprise OSP networks

Fiber-to-the-X networks

PRODUCT DESCRIPTION

AFL Flex-Span All-Dielectric Self-Supporting (ADSS) cable is designed for aerial distribution power lines, as well as underground duct applications. As its name indicates, there are no metallic components and the cable does not require a support or messenger wire. Flex-Span ADSS cables are a single jacket design intended for the shorter pole-to-pole span lengths in a distribution environment. A broad combination of fiber counts and spans lengths in this product family provide network designers with flexibility in their cable selection.
