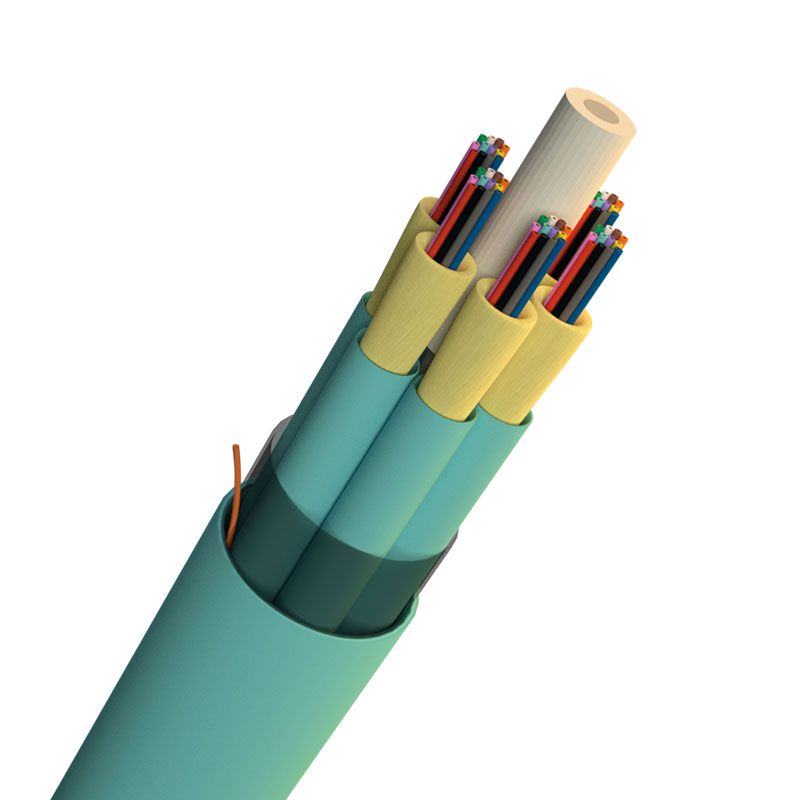

1 FIBER OPTIC CABLE Fiber Optic Cable © 2019, AFL, all rights reserved. PP-1-00166, Revision 1, 5.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Applications • Headend termination to a fiber "backbone" • Termination of fiber rack systems • Intra-building "backbones" • MTP/MPO or MTP to breakout terminations Features • 250 μm fiber with counts from 24 to 216 • 2.0 mm cable diameter • 12-fiber sub-units • LSZH Riser flame-rated jacket • All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within sub-units for use with MT termination Sub-unitized Premise MicroCore ® 2.0 Base-12 – CPR Certified AFL Sub-unitized MicroCore 2.0 Base-12 cables continue to push evolution of high performance premise cabling. Base-12 cable configurations are available in fiber counts up to 216 fibers, utilizing 250 μm fiber. MicroCore 2.0 can support all of your high-density network needs, offering the highest density 2.0 mm fiber cables available. Constructed of the highest quality materials to exacting industry standards, these small-diameter cables provide the solution sought out by today’s structured cabling professionals. Each sub- cable is independently qualified and is suitable for individual routing paths within the rack/panel architecture. This enables a flexibility of design and deployment not available in comparable high- density designs. Designed for direct termination and supportive of both single-fiber and multifiber architectures, this cable family should serve as the backbone to any deployed system. Cables are constructed with AFL MicroCore technology consistent with a long line of market leading designs. Cable Components Technical Information TYPE FIBER COUNT NOMINAL DIAMETER INCHES (MM) WEIGHT LBS/1000 FT (KG/KM) TENSION LBS (N) BENDING RADIUS INCHES (CM) INSTALLATION LONG TERM INSTALLATION LONG TERM 12-FIBER SUBUNITS 24 0.27 (7.0) 33 (49) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) 36 0.27 (7.0) 33 (49) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) 48 0.27 (7.0) 33 (49) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) 60 0.27 (7.0) 44 (66) 150 (660) 45 (198) 4.8 (12.3) 3.2 (8.2) 72 0.32 (8.2) 44 (66) 150 (660) 45 (198) 4.8 (12.3) 3.2 (8.2) 96 0.41 (10.5) 84 (125) 150 (660) 45 (198) 6.2 (15.8) 4.1 (10.5) 144 0.40 (10.3) 67 (100) 150 (660) 45 (198) 6.0 (15.5) 4.0 (10.3) 168 0.50 (12.9) 108 (160) 150 (660) 45 (198) 7.5 (19.4) 5.0 (12.9) 192 0.50 (12.9) 108 (160) 150 (660) 45 (198) 7.5 (19.4) 5.0 (12.9) 216 0.50 (12.9) 108 (160) 150 (660) 45 (198) 7.5 (19.4) 5.0 (12.9) aramid yarn colored fiber outer jacket ber sub-unit 2.0 mm 24, 36 and 48 fiber sub-unit outer jacket aramid yarn for pull strength ripcord member acket it 96 fiber center member flexible outer jacket sub-unit ripcord 144 fiber center member flexible outer jacket sub-unit ripcord aramid yarn colored fiber outer jacket 12 fiber sub-unit 2.0 mm 24, 36 and 48 fiber sub-unit outer jacket aramid yarn for pull strength ripcord 72 fiber center member flexible outer jacket sub-unit ripcord 96 fiber center member flexible outer jacket sub-unit ripcord 144 fiber center member flexible outer jacket sub-unit ripcord aramid yarn colored fiber outer jacket 12 fiber sub-unit 2.0 mm 24, 36 and 48 fiber sub-unit outer jacket aramid yarn for pull strength ripcord fiber center member flexible outer jacket sub-unit ripcord 96 fiber center member flexible outer jacket sub-unit ripcord 144 fiber center member flexible outer jacket sub-unit ripcord aramid yarn colored fiber outer jacket 12 fiber sub-unit 2.0 mm 24, 36 and 48 fiber sub-unit outer jacket aramid yarn for pull strength ripcord 72 fiber center member flexible outer jacket sub-unit ripcord 96 fiber center member flexible outer jacket sub-unit ripcord 144 fiber center member flexible outer jacket sub-unit ripcord aramid yarn colored fiber outer jacket 12 fiber sub-unit 2.0 mm 24, 36 and 48 fiber sub-unit outer jacket aramid yarn for pull strength ripcord 72 fiber center member flexible outer jacket sub-unit ripcord 96 fiber center member flexible outer jacket sub-unit ripcord 144 fiber center member flexible outer jacket sub-unit ripcord © 2019, AFL, all rights reserved. PP-1-00166, Revision 1, 5.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Premise Cable Temperature Specifications TEMPERATURE RANGE RISER LSZH INSTALLATION 0°C to +70°C -20°C to +70°C OPERATION 0°C to +60°C 0°C to +60°C STORAGE -40°C to +70°C -40°C to +70°C Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT CE B2ca - s1a,d0,a1 Cca - s1a,d0,a1 Cable IEC 60332, 60754, 61034 LSZH/ONFR-LS Jacket Telcordia GR-409-CORE Jacket EIA/TIA 568 Jacket ICEA Jacket RoHS REACH Jacket Sub-unitized Premise MicroCore ® 2.0 Base-12 – CPR Certified Ordering Information TYPE FIBER COUNT AFL NO. CPR CERTIFICATION SINGLE-MODE OM3 50 μ m OM4 50 μ m OM5 50 μ m 12-FIBER SUBUNITS 24 GE024920199B:C4C-CCA GE024L201CCB:C4C-BIF-CCA GE024C201CCB:C4C-BIF-CCA GE024W201LLB:C4C-BIF-CCA Cca - s1a,d0,a1 36 GE036920199B:C4C-CCA GE036L201CCB:C4C-BIF-CCA GE036C201CCB:C4C-BIF-CCA GE036W201LLB:C4C-BIF-CCA Cca - s1a,d0,a1 48 GE048920199B:C4C-B2CA GE048L201CCB:C4C-BIF-B2CA GE048C201CCB:C4C-BIF-B2CA GE048W201LLB:C4C-BIF-B2CA B2ca - s1a,d0,a1 60 GE060920199B:C6C-B2CA GE060L201CCB:C6C-BIF-B2CA GE060C201CCB:C6C-BIF-B2CA GE060W201LLB:C6C-BIF-B2CA B2ca - s1a,d0,a1 72 GE072920199B:C6C-B2CA GE072L201CCB:C6C-BIF-B2CA GE072C201CCB:C6C-BIF-B2CA GE072W201LLB:C6C-BIF-B2CA B2ca - s1a,d0,a1 96 GE096920199B:C8C-B2CA GE096L201CCB:C8C-BIF-B2CA GE096C201CCB:C8C-BIF-B2CA GE096W201LLB:C8C-BIF-B2CA B2ca - s1a,d0,a1 144 GE144920199B:CCC-B2CA GE144L201CCB:CCC-BIF-B2CA GE144C201CCB:CCC-BIF-B2CA GE144W201LLB:CCC-BIF-B2CA B2ca - s1a,d0,a1 168 GE168920199B:CIC-B2CA GE168L201CCB:CIC-BIF-B2CA GE168C201CCB:CIC-BIF-B2CA GE168W201LLB:CIC-BIF-B2CA B2ca - s1a,d0,a1 192 GE192920199B:CIC-B2CA GE192L201CCB:CIC-BIF-B2CA GE192C201CCB:CIC-BIF-B2CA GE192W201LLB:CIC-BIF-B2CA B2ca - s1a,d0,a1 216 GE216920199B:CIC-B2CA GE216L201CCB:CIC-BIF-B2CA GE216C201CCB:CIC-BIF-B2CA GE216W201LLB:CIC-BIF-B2CA B2ca - s1a,d0,a1 *Item numbers are built with AFL Standard Fiber, AFL Standard Print with industry standard colors: SMF – Yellow; 50 μ m OM3 and OM4 – Aqua; and 50 μ m OM5 – Lime. Additional Fiber, Print and Color options available, please contact AFL for options.
