Power Meter Connector Adapters
PRODUCT DESCRIPTION

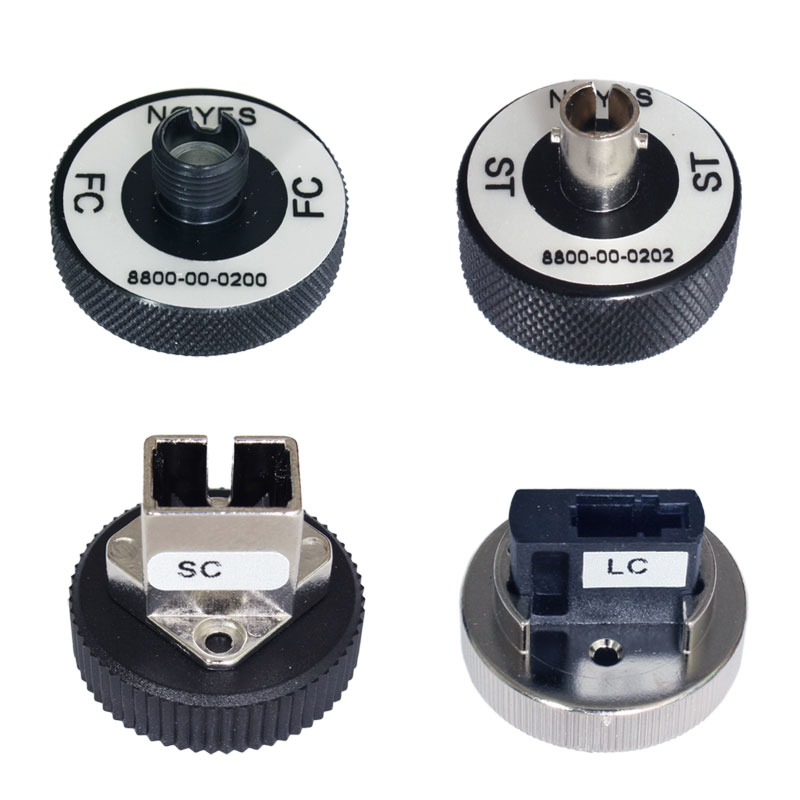

Power Meter Adapter Caps
| Part Number | Description |
|---|---|
| 8800-00-0214 | 2.5 mm Universal (accepts FC, SC, and ST ferrules) |
| 8800-00-0224 | 1.25 mm Universal (accepts LC and MU ferrules) |
| 8800-00-0200 | FC |
| 8800-00-0209 | SC |
| 8800-00-0202 | ST® |
| 8800-00-0225 | LC simplex |
| 8800-00-0221 | E-2000 |
| 8800-00-0226 | MU simplex |
| 8800-00-0219 | 2.5 mm open Universal. Accepts SC duplex, OptiTap connector for measuring optical power. |
| 8800-00-0230 | MT-RJ (A side only). When used for loss testing, “A side only” adapter verifies system polarity |
| 8800-00-0231 | MT-RJ (A side or B side) |
| 8800-00-0203 | SMA |
| 8800-00-0201 | D4 |
| 8800-00-0204 | Biconic |
| 8800-00-0210 | ESCON® |
| 8800-00-0205 | FDDI (for OPM ports only!) |
| 8800-00-0211 | DIN 47256 |
| 8800-00-0212 | Radiall PFO/VFO Adapters for Plastic Optical Fiber (POF) |
| 8800-00-0223 | 1000 mm bare fiber (plastic) |
| 8800-00-0271PR | HP-HFBR-45XX POF Universal |
- For images of adapters refer to Test Port Adapters Reference Guide (PDF) available under Related Documents tab.
- ESCON is a registered trademark of IBM
- ST is a registered trademark of Lucent Technologies
