Indoor/Outdoor Armored Tight Buffered CPC Cables incorporate two to 72 fiber count CPC cables in a jacketed, aluminum interlocking armor. Jacketed aluminum interlocking armor provides the best balance of ruggedness, flexibility and low weight.
1 FIBER OPTIC CABLE Premise Cable © 2016, AFL, all rights reserved. PP-1-00131, Revision 6, 3.7.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued A Indoor/Outdoor Armored Tight Buffered Circular Premise Cable Indoor/Outdoor Armored Tight Buffered CPC Cables incorporate two to 72 fiber count CPC cables in a jacketed, aluminum interlocking armor. Jacketed aluminum interlocking armor provides the best balance of ruggedness, flexibility and low weight. Indoor/Outdoor Armored Distribution cables provide added protection for campus network cabling between buildings where short installation runs allow for cost savings made by utilizing tight buffered cables. Flame rated cables, both OFCP (Plenum) and OFCR (Riser) rated jackets allow these products to be deployed indoors within the premise and retain compliance to applicable flame safety standards. For outdoor applications, the cables utilize both UV-stabilized jacketing materials with anti-fungal additives; core cables also contain water-blocking elements to prevent water migration. Products are approved for use in mining applications. Applications • Building Interconnections (Campus LAN) • I nside plant and outside plant environments • Mining applications Features • Available with 2 to 72 fibers • Low weight jacketed, interlocking armor • OFCP (Plenum) and OFCR (Riser) rated jackets • Moisture-resistant, fungus-resistant and UV-resistant outer jacket Cable Components Fiber Specifications CORE SIZE/ FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION ( dB/km ) OVERFILL LAUNCH MIN. BANDWIDTH ( MHz•km ) EMB C ( MHz•km ) GIGABIT ETHERNET MAX. LINK DISTANCE ( meters ) 10 GIGABIT ETHERNET MAX. LINK DISTANCE ( meters ) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link ™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link ™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1040 550 550 — (W) AFL Wideband Multimode OM5 N/A 1.2 N/A 3,500 500 4,700 1040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000
© 2016, AFL, all rights reserved. PP-1-00131, Revision 6, 3.7.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Premise Cable Temperature Specifications Temperature Range Plenum Riser Installation -10°C to +70°C -20ºC to +75ºC Operating -40°C to +70°C -40ºC to +75ºC Storage -40ºC to +70ºC -40ºC to +75ºC Contact AFL for further details. Qualifications Governing Body Standard Code Component Telcordia GR-20-CORE GR-409-CORE Water-Blocked Cabled Buffer Tube Core Weatherized Cable EIA/TIA 568, 568-A Sub-units ICEA S-104-696 Sub-units RoHS 2002/95/EC Cable MSHA Indoor/Outdoor Armored Tight Buffered Circular Premise Cable Mechanical Data AFL NO. FIBER COUNT NOMINAL DIAMETER inches (mm) WEIGHT lbs TENSION lbs (N) BENDING RADIUS Inches (cm) RISER PLENUM RISER PLENUM RISER PLENUM INSTALL LONGTERM INSTALL LONGTERM INSTALL LONGTERM RISER PLENUM KR002 481801-AIAR KQ002 461801-AIAP 2 0.52 (13.30) 0.52 (13.30) 126 144 150 (660) 45 (198) 300 (1335) 90 (396) 7.8 (19.8) 5.2 (13.2) KR004 481801-AIAR KQ004 501801-AIAP 4 0.52 (13.30) 0.52 (13.30) 128 147 150 (660) 45 (198) 300 (1335) 90 (396) 7.8 (19.8) 5.2 (13.2) KR006 531801-AIAR KQ006 541801-AIAP 6 0.52 (13.30) 0.52 (13.30) 133 169 150 (660) 45 (198) 300 (1335) 90 (396) 7.8 (19.8) 5.2 (13.2) KR008 561801-AIAR KQ008 581801-AIAP 8 0.56 (14.30) 0.56 (14.30) 150 192 150 (660) 45 (198) 300 (1335) 90 (396) 8.4 (21.3) 5.6 (14.2) KR012 651801-AIAR KQ012 611801-AIAP 12 0.56 (14.30) 0.56 (14.30) 155 198 150 (660) 45 (198) 300 (1335) 90 (396) 8.4 (21.3) 5.6 (14.2) KR018 801801-AIAR KQ018 751801-AIAP 18 0.63 (15.90) 0.63 (15.90) 191 204 300 (1335) 90 (396) 300 (1335) 90 (396) 9.5 (24.1) 6.3 (16.0) KR024 871801-AIAR KQ024 791801-AIAP 24 0.68 (17.30) 0.63 (15.90) 214 223 300 (1335) 90 (396) 300 (1335) 90 (396) 10.2 (25.9) 6.8 (17.3) KR024 611881-AIAR — 24 1.02 (25.90) — — 320 — 300 (1335) 90 (396) — — 15.3 (38.9) 10.2 (25.9) KR036 611881-AIAR KQ036 591881-AIAP 36 1.02 (25.90) 0.96 (24.30) 320 320 300 (1335) 90 (396) 300 (1335) 90 (396) 15.3 (38.9) 10.2 (25.9) KR048 611881-AIAR KQ048 591881-AIAP 48 1.02 (25.90) 1.02 (25.90) 320 360 300 (1335) 90 (396) 300 (1335) 90 (396) 15.3 (38.9) 10.2 (25.9) KR060 611881-AIAR KQ060 591881-AIAP 60 1.12 (28.40) 1.12 (28.40) 430 430 300 (1335) 90 (396) 300 (1335) 90 (396) 16.8 (42.7) 11.2 (28.4) KR072 611881-AIAR KQ072 591881-AIAP 72 1.17 (29.70) 1.22 (30.96) 430 500 300 (1335) 90 (396) 300 (1335) 90 (396) 17.6 (44.7) 11.7 (29.7) Fiber Types – Replace asterisk ( ) in AFL number with number in the Fiber Specifications table on previous page.
Features:
- Available with 2 to 72 fibers
- Low weight jacketed, interlocking armor
- OFCP (Plenum) and OFCR (Riser) rated jackets
- Moisture-resistant, fungus-resistant and UV-resistant outer jacket
Applications:
- Building Interconnections (Campus LAN)
- Inside plant and outside plant environments
- Mining applications

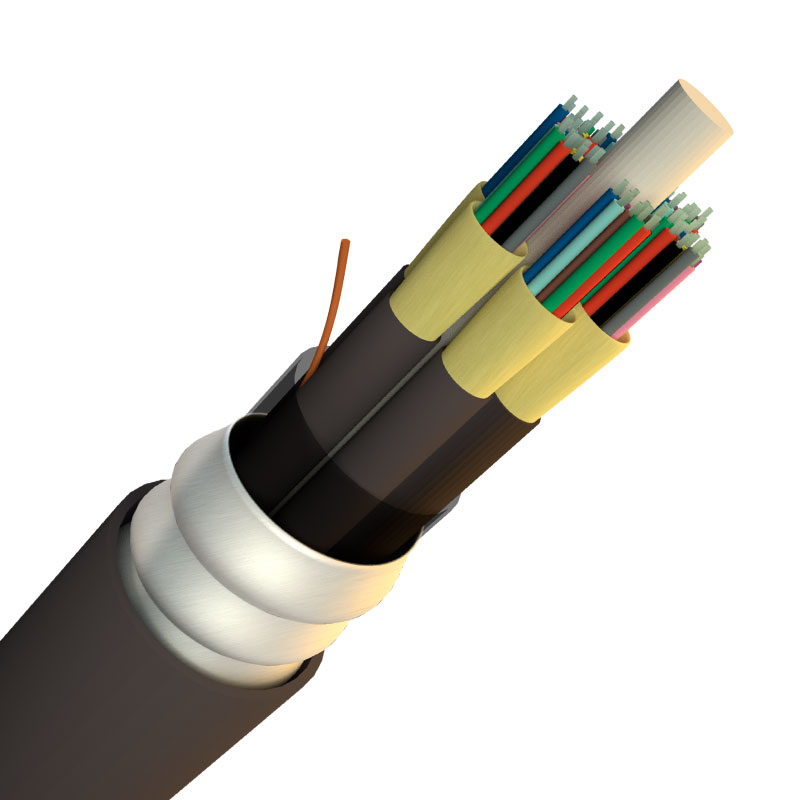

Indoor/Outdoor Armored Tight Buffered CPC Cables incorporate two to 72 fiber count CPC cables in a jacketed, aluminum interlocking armor. Jacketed aluminum interlocking armor provides the best balance of ruggedness, flexibility and low weight.
Indoor/Outdoor Armored Distribution cables provide added protection for campus network cabling between buildings where short installation runs allow for cost savings made by utilizing tight buffered cables. Flame rated cables, both OFCP (Plenum) and OFCR (Riser) rated jackets allow these products to be deployed indoors within the premise and retain compliance to applicable flame safety standards.
For outdoor applications, the cables utilize both UV-stabilized jacketing materials with anti-fungal additives; core cables also contain water-blocking elements to prevent water migration. Products are approved for use in mining applications.
