The Quick Compress GWJ Series Joints are designed for fast and easy installation of Alumoweld® and steel ground wire. By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM-rated strength. The compression joint is pre-filled, eliminating an installation step. Each compression joint has a center stop to ensure proper insertion of the conductor.
16244080c530408699f8cf08187eb53c

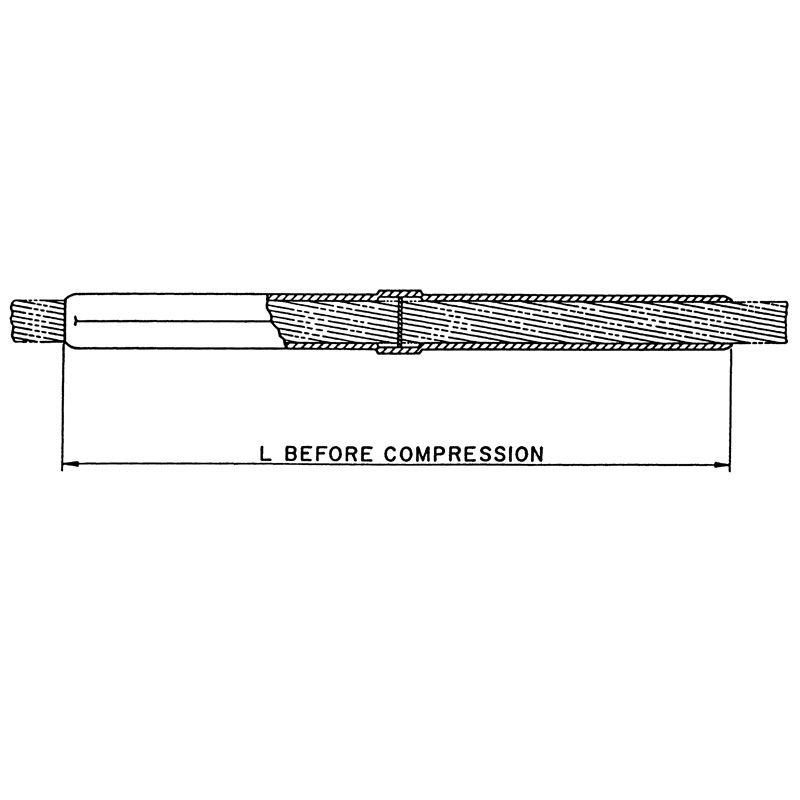

© 2003, AFL, all rights reserved. PP-3-00761, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 256 Quick Compress ® QuickCompress ® – Alumoweld ® & GW The Quick Compress GWJ Series Joints are designed for fast and easy installation of Alumoweld ® and Steel Ground Wire By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The compression joint is pre-filled, eliminating an installation step Each compression joint has a center stop to ensure proper insertion of the conductor Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: A compression joint for No 10 Alumoweld ® , the complete cata - log number is: GWJ12.330 Notes: 1 Installation Instructions for Compression Joints are on page 268 2 For more information on die selection and ordering instructions, see Tools and Equipment section in this catalog Quick Compress Compression Joints for Alumoweld ® and Steel Ground Wire, GWJ Series CATALOG NUMBER CONDUCTOR DIMENSION L DIE SIZE TOTAL WEIGHT SIZE DIAMETER IN MM IN MM LBS KG ALUMOWELD ® GWJ10 251 3 No 10 0 220 5 6 6 62 168 6010GW 0 17 0 08 GWJ10 281 3 No 9 0 247 6 3 6 62 168 6010GW 0 16 0 07 GWJ10 295 3 No 8 0 277 7 0 7 50 191 6010GW 0 17 0 08 GWJ10 324 3 No 7 0 311 7 9 7 50 191 6010GW 0 16 0 07 GWJ12 351 3 No 6 0 349 8 9 9 00 229 6012GW 0 27 0 12 GWJ14 406 3 No 5 0 392 10 0 8 25 210 6014GW 0 38 0 17 GWJ12 330 7 No 10 0 306 7 8 6 50 165 6012GW 0 23 0 1 GWJ12 359 7 No 9 0 343 8 7 9 00 229 6012GW 0 27 0 12 GWJ14 406 7 No 8 0 385 9 8 8 25 210 6014GW 0 38 0 17 GWJ16 484 7 No 7 0 433 11 0 9 62 244 6016GW 0 58 0 26 GWJ16 531 7 No 6 0 486 12 3 11 00 279 6016GW 0 62 0 28 GWJ18 594 7 No 5 0 546 13 9 11 00 279 6018GW 0 73 0 33 GWJ18 530 19 No 10 0 509 12 9 11 00 279 6018GW 0 83 0 38 STEEL GROUND WIRE GWJ12 332 5/16" EHS GW 0 312 7 90 8 81 224 6012GW 0 31 0 14 GWJ14 386 3/8" EHS GW 0 360 9 10 10 50 267 6014GW 0 49 0 22 GWJ16 453 7/16" EHS GW 0 435 11 00 13 25 337 6016GW 0 73 0 33 GWJ18 531 1/2" EHS GW 0 495 12 60 17 00 432 6018GW 1 30 0 59
Features:
- Installed in 40% less time
- One-piece core grip
- Factory pre-filled quick compress connectors are prefilled with AFL Filler Compound (AFC)
Applications:
- Compression joints for Alumoweld and steel ground wire conductors
The Quick Compress® GWJ Series Joints are designed for fast and easy installation of Alumoweld® and steel ground wire. By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM-rated strength. The compression joint is pre-filled, eliminating an installation step. Each compression joint has a center stop to ensure proper insertion of the conductor.
