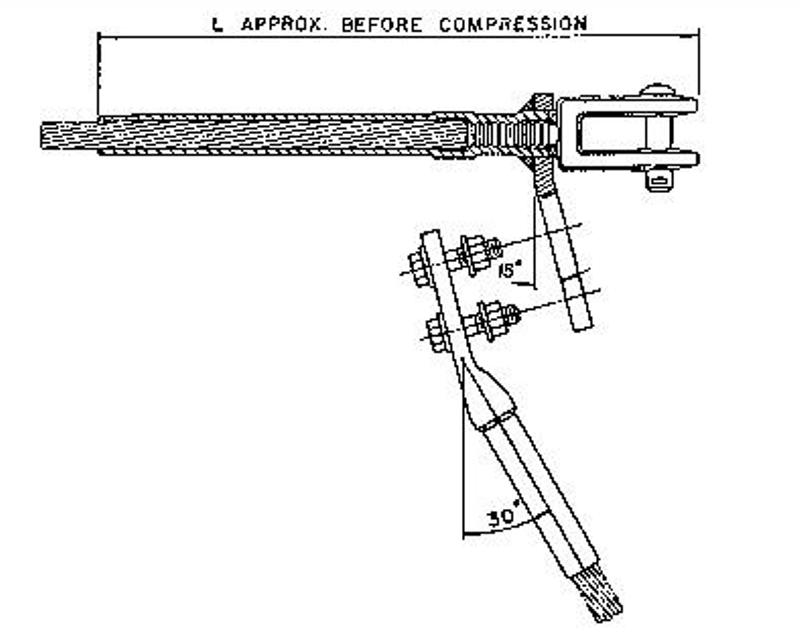

www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00767, Revision 1, 7.18.12 Specifications are subject to change without notice. 103 Standard Compression AWAC ACCESSORIES Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' For Standard Finish, leave blank Step 4: Assemble Catalog Number. Example: For 1/0 6/1 conductor with no terminal, the complete catalog number is: C33210NT Compression Dead Ends—33200 Series for AWAC Conductor, Clevis Type, Single Tongue The 33200 Series Dead End Assembly is specifically designed for AWAC conductors The aluminum body of the dead end is fabricated from AFL seamless drawn aluminum The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight or 30º position All dead ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used Each dead end assembly comes with a dead end body, steel clevis, 15º terminal and aluminum hardware For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Corona bolts are furnished as standard on 15º terminals for these section sizes The square edges of bolted pads on compression accessories could cause Corona in environments greater than or equal to 345 kV Pads with edges and corners rounded can be supplied by adding the catalog suffix "EHV" Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Clevis Dimensions are on page 120 2 Pad Dimensions are on page 117 3 AFL Filler Compound (AFC) Requirements are on page 115 4 Installation Instructions for Dead Ends are on page 133 5 Installation Instructions for Terminals are on page 131 www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00767, Revision 1, 7.18.12 Specifications are subject to change without notice. 104 Standard Compression AWAC ACCESSORIES Compression Dead Ends—33200 Series for AWAC Conductor, Clevis Type, Single Tongue (cont.) DEAD END ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM BODY SINGLE TONGUE STEEL CLEVIS 15º TERMINAL CONNECTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE SIZE STRANDING DIA. ALUMINUM HEX DIES LBS KG IN MM KCMIL AL/AW IN C33210 1/0 6/1 0 390 8611 453 A100X 5111 453 11AH 2 09 0 94 14 12 359 B C33211 1/0 5/2 0 416 8612 516 A100X 5112 516 12AH 2 53 1 15 14 12 359 B C33212 1/0 4/3 0 447 8613 531 A102X 5113 531 13AH 3 79 1 72 15 38 391 B C31213 2/0 6/1 0 438 8612 484 A100X 5112 484 12AH 2 55 1 16 14 12 359 B C33214 2/0 5/2 0 467 8613 542 A102X 5113 542 13AH 3 78 1 72 15 38 391 B C33215 2/0 4/3 0 502 8676 594 A102X 5176 594 76AH 4 05 1 84 17 38 441 B C33216 4/0 6/1 0 552 8613 625 A102X 5113 625 13AH 3 66 1 66 15 38 391 B C33217 4/0 15/4 0 575 8676 656 A102X 5176 656 76AH 3 91 1 78 17 38 441 B C33218 336 4 18/1 0 679 8676 719 A101X 5176 719 76AH 3 57 1 61 17 38 441 B
