The Terminal Connector is designed for AAAC and ACAR conductors. The terminal connector is fabricated from AFL seamless drawn aluminum.
dc6391443a6048128573f9da2acf7eaf

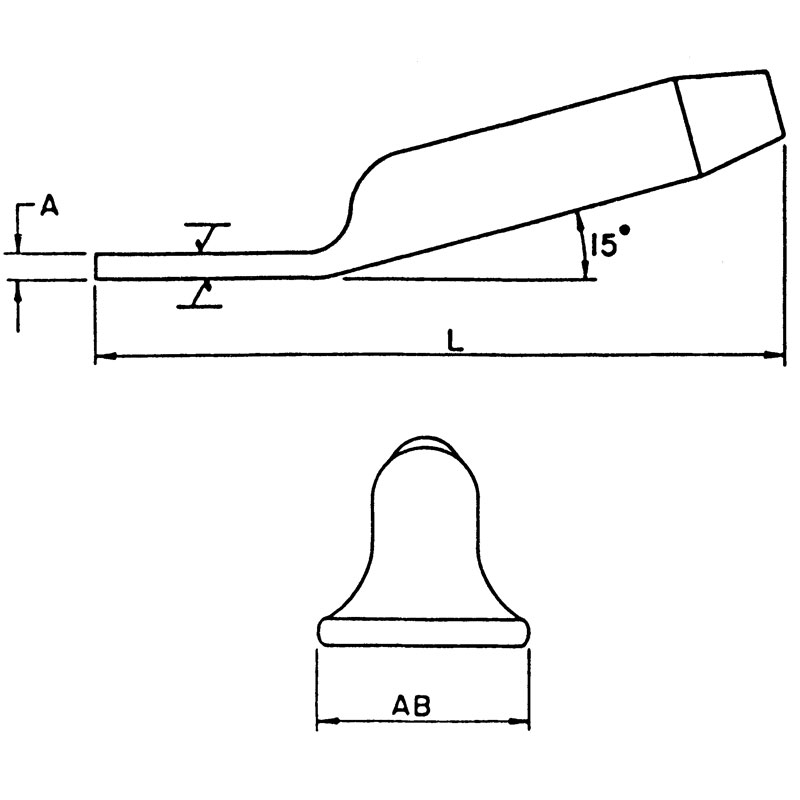

www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 3, 9.26.14 Specifications are subject to change without notice. 101 AAAC & ACAR ACCESSORIES Standard Compression Terminal Connectors—5100 Series for AAAC and ACAR Conductors, 15º The 5100 Series 15º Terminal Connector is designed for AAAC and ACAR conductors The terminal connector is fabricated from AFL seamless drawn aluminum When used with the dead end, the 15º terminal connector can be bolted in either the straight or 30º position All terminal connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor on which it is being used Aluminum hardware is supplied with the 15º terminal connector Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' For Standard Finish, leave blank Step 3: Assemble Catalog Number. Example: For 927 2 Greeley conductor with an EHV finish, the complete catalog number is: 5134.122EHV Assy Catalog Number EHV Finish + Notes: 1 Pad Dimensions are on page 117 2 AFL Filler Compound (AFC) Requirements are on page 115 3 Installation Instructions for Terminals are on page 131 4 Supplied with aluminum hardware TERMINAL CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIA. L A AB KCMIL IN LBS KG IN MM IN MM IN MM 5112 484 — 155 4 4/3 0 447 12AH 0 7 0 32 9 6 244 0 5 13 1 0 25 B 5112 484 Anaheim 155 4 7 0 447 12AH 0 7 0 32 9 6 244 0 5 13 1 0 25 B 5113 542 — 195 7 4/3 0 502 13AH 0 9 0 40 10 8 273 0 5 13 1 3 32 B 5113 542 Amherst 195 7 7 0 502 13AH 0 9 0 40 10 8 273 0 5 13 1 3 32 B 5113 625 — 246 9 4/3 0 563 13AH 0 9 0 39 11 2 284 0 4 11 1 3 32 B 5113 625 Alliance 246 9 7 0 563 13AH 0 9 0 39 11 2 284 0 4 11 1 3 32 B 5114 719 Butte 312 8 19 0 642 14AH 1 0 0 45 10 8 275 0 5 12 1 3 32 B 5124 781 Canton 394 5 19 0 721 24AH 1 8 0 82 12 4 314 0 7 18 1 5 38 B 5124 875 Cairo 465 4 19 0 783 24AH 1 6 0 73 12 6 319 0 6 16 1 5 38 B 5124 875 — 503 6 15/4 0 814 24AH 1 6 0 73 12 6 319 0 6 16 1 5 38 B
www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 3, 9.26.14 Specifications are subject to change without notice. 102 Standard Compression AAAC & ACAR ACCESSORIES TERMINAL CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIA. L A AB KCMIL IN LBS KG IN MM IN MM IN MM 5127 906 Darien 559 5 19 0 858 27AH 2 1 0 95 12 3 313 0 4 10 3 0 76 D 5127 100 — 634 9 12/7 0 914 27AH 1 9 0 86 12 3 313 0 4 10 3 0 76 D 5127 100 — 649 5 18/19 0 928 27AH 1 9 0 86 12 3 313 0 4 10 3 0 76 D 5127 100 — 649 5 24/13 0 928 27AH 1 9 0 86 12 3 313 0 4 10 3 0 76 D 5127 100 — 649 5 30/7 0 928 27AH 1 9 0 86 12 3 313 0 4 10 3 0 76 D 5130 109 Elgin 652 4 19 0 927 30AH 2 7 1 23 13 6 346 0 5 13 3 0 76 D 5127 100 — 657 3 15/4 0 930 27AH 1 9 0 86 12 3 313 0 4 10 3 0 76 D 5130 109 Flint 740 8 37 0 991 30AH 2 7 1 23 13 6 346 0 5 13 3 0 76 D 5130 116 — 853 7 18/19 1 063 30AH 2 6 1 18 13 9 354 0 5 12 3 0 76 D 5130 116 — 853 7 24/13 1 063 30AH 2 6 1 18 13 9 354 0 5 12 3 0 76 D 5130 116 — 853 7 30/7 1 063 30AH 2 6 1 18 13 9 354 0 5 12 3 0 76 D 5134 122 Greeley 927 2 37 1 108 34AH 3 7 1 68 14 1 359 0 7 18 3 0 76 D 5134 122 — 927 2 18/19 1 108 34AH 3 7 1 68 14 1 359 0 7 18 3 0 76 D 5134 122 — 927 2 24/13 1 108 34AH 3 7 1 68 14 1 359 0 7 18 3 0 76 D 5134 122 — 927 2 30/7 1 108 34AH 3 7 1 68 14 1 359 0 7 18 3 0 76 D 5134 122 — 1024 5 18/19 1 165 34AH 3 7 1 68 14 1 359 0 7 18 3 0 76 D 5134 122 — 1024 5 24/13 1 165 34AH 3 7 1 68 14 1 359 0 7 18 3 0 76 D 5134 122 — 1024 5 30/7 1 165 34AH 3 7 1 68 14 1 359 0 7 18 3 0 76 D 5134 128 — 1080 6 18/19 1 196 34AH 3 6 1 64 14 3 363 0 6 16 3 0 76 D 5134 128 — 1080 6 24/13 1 196 34AH 3 6 1 64 14 3 363 0 6 16 3 0 76 D 5134 128 — 1080 6 30/7 1 196 34AH 3 6 1 64 14 3 363 0 6 16 3 0 76 D 5138 138 — 1127 0 42/19 1 222 34AH 3 4 1 55 14 6 370 0 6 15 3 0 76 D 5134 128 — 1172 3 18/19 1 246 34AH 3 6 1 64 14 3 363 0 6 16 3 0 76 D 5134 128 — 1172 3 24/13 1 246 34AH 3 6 1 64 14 3 363 0 6 16 3 0 76 D 5134 128 — 1180 6 24/13 1 212 34AH 3 6 1 64 14 3 363 0 6 16 3 0 76 D 5138 150 — 1534 0 42/19 1 427 38AH 4 5 2 05 15 8 400 0 8 20 3 0 76 D 5138 150 — 1534 0 54/7 1 427 38AH 4 5 2 05 15 8 400 0 8 20 3 0 76 D 5144 159 — 1691 0 -- 1 498 44AH 7 4 3 36 18 0 457 0 8 20 4 0 102 E 5140 162 — 1700 0 42/19 1 502 40AH 5 3 2 41 17 4 443 0 7 18 4 0 102 E 5140 162 — 1700 0 54/7 1 502 40AH 5 3 2 41 17 4 443 0 7 18 4 0 102 E 5148 184 — 2303 5 54/37 1 750 48AH 9 0 4 09 20 0 508 0 9 22 4 0 102 E 5148 184 — 2303 5 63/28 1 750 48AH 9 0 4 09 20 0 508 0 9 22 4 0 102 E 5148 184 — 2338 0 42/19 1 762 48AH 9 0 4 09 20 0 508 0 9 22 4 0 102 E Terminal Connectors—5100 Series for AAAC and ACAR Conductors, 15º (cont.)
Features:
- ANSI C119.4 Class A qualified
- Designed for limited tension use; maintaining a minimum of 40% of the ASTM-rated strength of the conductor
- Standard NEMA pad spacing
- Both sides of the pad are finished, creating excellent contact surfaces
- Available in straight, 15 and 90 degree angles
- Permanent markings for ease of installation and identification
Applications:
- Compression terminal for AAAC and ACAR conductors
The Terminal Connector is designed for AAAC and ACAR conductors. The terminal connector is fabricated from AFL seamless drawn aluminum.
All terminal connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor on which it is being used.
