Los soportes de bronce para tubos de bus están diseñados para conectar los tubos de bus a los aisladores en círculos de pernos de 3, 5 y 7 pulgadas. AFL ofrece soportes de bus fijos, deslizantes, verticales y de expansión.
0404a973ff1249859851295871ad551c
38 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00388, Revision 1, 8.6.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PA, PAP Bus Support For Circle Mount Insulators A single cap four bolt bus support for mounting on insulator bolt circle positions. Type PA clamps bus directly to insulator while type PAP is provided with an under saddle conforming to bus diameter for higher clamping pressure. Both types can be furnished with cap screws for cap mounting or bolts and nuts for base mounting. Unless otherwise specificed supports are furnished for cap and mounting as illustrated. Material Copper Alloy Hardware Everdur bolts, lockwashers Ordering Information CATALOG NUMBER SPS B0LT CIRCLE DIMENSIONS IN INCHES BOLT SIZE A B H W PA PAP PA PAP PA50-3 PAP50-3 1/2 3 3/4 3 1/4 1 3/8 1 11/16 3 1/4 1/2 PA50-5 PAP50-5 1/2 5 3/4 4 15/16 1 1/2 1 13/16 4 15/16 5/8 PA75-3 PAP75-3 3/4 3 7/8 3 1/4 1 9/16 1 15/16 3 1/4 1/2 PA75-5 PAP75-5 3/4 5 7/8 4 15/16 1 11/16 2 1/16 4 15/16 5/8 PA100-3 PAP100-3 1 3 1 3 1/4 1 3/4 2 1/8 3 1/4 1/2 PA100-5 PAP100-5 1 5 1 4 15/16 2 2 5/16 4 15/16 5/8 PA125-3 PAP125-3 1 1/4 3 1 1/8 3 1/4 2 1/8 2 7/15 3 1/4 1/2 PA125-5 PAP125-5 1 1/4 5 1 1/8 4 15/16 2 3/8 2 11/16 4 15/16 5/8 PA150-5 PAP150-5 1 1/2 5 1 1/4 4 15/16 2 7/16 2 3/4 4 15/16 5/8 PA200-5 PAP200-5 2 5 1 1/2 4 15/16 2 3/4 3 1/16 4 15/16 5/8 PA250-5 PAP250-5 2 1/2 5 1 3/4 4 15/16 3 5/16 3 5/8 4 15/16 5/8 PA PAP B W H PA PAP H A W CUSTOMER PIPE
39 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00389, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PB, PBP Bus Support With Two Unit Cap A two unit cap clamping bus support for mounting on insulator bolt circle positions. Type PB clamps bus directly to insulator while type PBP is provided with two independent matching bus saddles. Available for either cap or base mounting. Unless otherwise specified supports are furnished for cap mounting as illustrated. Material Copper Alloy Hardware Everdur bolts, lockwashers Ordering Information CATALOG NUMBER SPS B0LT CIRCLE DIMENSIONS IN INCHES A B H J W BOLT SIZE PB50-3 PBP50-3 1/2 3 3/4 1 5/16 1 3/8 1 11/16 3 1/4 1/2 PB50-5 PBP50-5 1/2 5 3/4 1 3/8 1 1/2 1 13/16 4 15/16 5/8 PB75-3 PBP75-3 3/4 3 7/8 1 5/16 1 9/16 1 15/16 3 1/4 1/2 PB75-5 PBP75-5 3/4 5 7/8 1 3/8 1 11/16 2 1/16 4 15/16 5/8 PB100-3 PBP100-3 1 3 1 1 1/2 1 3/4 2 1/8 3 1/4 1/2 PB100-5 PBP100-5 1 5 1 1 5/8 2 2 5/16 4 15/16 5/8 PB125-3 PBP125-3 1 1/4 3 1 1/8 1 1/2 2 1/8 2 7/16 3 1/4 1/2 PB125-5 PBP125-5 1 1/4 5 1 1/8 1 5/8 2 3/8 2 11/16 4 15/16 5/8 PB150-5 PBP150-5 1 1/2 5 1 1/4 1 3/4 2 7/16 2 3/4 4 15/16 5/8 PB200-5 PBP200-5 2 5 1 1/2 1 3/4 2 3/4 3 1/16 4 15/16 5/8 PB250-5 PBP250-5 2 1/2 5 1 3/4 1 7/8 3 5/16 3 5/8 4 15/16 5/8 PB PBP B W H PB PBP W J A B CUSTOMER PIPE
© 2011, AFL, all rights reserved. PP-3-00397, Revision 2, 5.8.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 40 Bronze Bus Supports Bronze Bus Supports TYPE PL Pipe Bus Support Slide or Tight Fit A two bolted clamp type high strength bronze bus support. This unit is non-magnetic and corrosion resistant. The design of this support permits a minimum radius of gyration about the support mounting thus minimizing cantilever stresses. Type PL is both a tight and slip fit action clamp with either action obtained by reversing cap. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Ordering Information CATALOG NUMBER SPS BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE A B F PL75-3 3/4 3 1 3/8 1 1/2 4 1/4 1/2 PL75-5 3/4 5 1 1 1/2 6 1/4 1/2 PL100-3 1 3 1 5/8 1 1/2 4 1/4 1/2 PL100-5 1 5 1 1/8 1 1/2 6 1/4 1/2 PL125-3 1 1/4 3 1 3/4 1 11/16 4 1/4 1/2 PL125-5 1 1/4 5 1 3/8 1 11/16 6 1/4 1/2 PL150-3 1 1/2 3 2 1 11/16 4 1/4 1/2 PL150-5 1 1/2 5 1 1/2 1 11/16 6 1/4 1/2 PL200-3 2 3 2 3/8 1 11/16 4 1/4 1/2 PL200-5 2 5 2 1/4 1 11/16 6 1/4 1/2 PL250-3 2 1/2 3 2 5/8 1 3/4 4 1/4 1/2 PL250-5 2 1/2 5 2 1/2 1 3/4 6 1/4 1/2 PL300-3 3 3 2 7/8 1 13/16 5 3/4 5/8 PL300-5 3 1/2 5 3 1 3/4 6 1/4 5/8 B 3/8 A F CUSTOMER PIPE
41 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00399, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PLC Bus Support For Tubular Bus To Insulator A bus support for mounting a tubular bus to a 3/4-10 NC 2 center tapped insulator. The center tap mounting permits any angular arrangement for bus positioning while a reversible cap allows for slip fit or tight clamping on bus. Other thread sizes for center mounting can be readily supplied. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES BOLT SIZE A B W PLC50 1/2 1 3/4 1 3/4 2 3/8 3/8 PLC75 3/4 2 1 1/2 2 9/16 3/8 PLC100 1 2 1 1/2 2 7/8 3/8 PLC125 1 1/4 2 1/4 2 3 1/2 1/2 PLC150 1 1/2 2 1/2 2 3 13/16 1/2 PLC200 2 2 3/4 2 1/4 4 1/4 1/2 PLC250 2 1/2 3 1/8 2 1/4 4 3/4 1/2 PLC300 3 3 5/8 2 1/2 5 7/8 5/8 PLC350 3 1/2 4 2 1/2 6 3/8 5/8 PLC400 4 4 1/2 2 1/2 6 7/8 5/8 B 3/8 A W 3/4 CUSTOMER PIPE
42 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00402, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PSC Bus Support For Two Tubular Busses A bus support for joining and supporting two tubular buses on a post type insulator. Designed for a high resistance to impact or sustained cantilever and torsional stresses. Nuts and bolts are furnished for a base mounting or slotted cap mounting or cap screws for an insulator cap mounting. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Note For tin plating add "-SN" to end of catalog number. Ordering Information CATALOG NUMBER SPS BOLT CIRCLE DIMENSIONS IN INCHES A L BOLT SIZE PSC75-3 3/4 3 2 3 1/2 3/8 PSC75-5 3/4 5 2 1/4 3 1/2 3/8 PSC100-3 1 3 2 4 1/2 3/8 PSC100-5 1 5 2 1/4 4 1/2 3/8 PSC125-3 1 1/4 3 2 1/4 5 1/2 1/2 PSC125-5 1 1/4 5 2 3/8 5 1/2 1/2 PSC150-3 1 1/2 3 2 1/2 5 3/4 1/2 PSC150-5 1 1/2 5 2 1/2 5 3/4 1/2 PSC200-3 2 3 2 3/4 6 1/2 PSC200-5 2 5 2 3/4 6 1/2 PSC250-3 2 1/2 3 3 1/8 6 1/2 PSC250-5 2 1/2 5 3 1/8 6 1/2 PSC300-5 3 5 3 5/8 7 5/8 PSC350-5 3 1/2 5 4 8 5/8 PSC400-5 4 5 4 1/2 8 3/4 5/8 A L CUSTOMER PIPE
43 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00404, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PSD, PSD-U Bus Support, Pipe, Slide or Tight Fit A heavy duty bus support clamp designed with a low bus center point height to reduce cantilever action and withstand high stresses. For PSD series, reversible clamps permit tight or slip fit assembly. For PSD-U series, U-bolt provides tight fit. Entire unit is non-magnetic and corrosion resistant. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Ordering Information CATALOG NUMBER CATALOG NUMBER U-BOLT SPS BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE A F L PSD75-3 PSD75-3-U 3/4 3 2 4 1/4 6 3/4 1/2 PSD75-5 PSD75-5-U 3/4 5 2 1/4 6 1/4 9 1/2 PSD100-3 PSD100-3-U 1 3 2 4 1/4 7 1/2 PSD100-5 PSD100-5-U 1 5 2 1/4 6 1/4 9 1/2 PSD125-3 PSD125-3-U 1 1/4 3 2 1/4 4 1/4 7 1/4 1/2 PSD125-5 PSD125-5-U 1 1/4 5 2 3/8 6 1/4 9 1/2 1/2 PSD150-3 PSD150-3-U 1 1/2 3 2 1/2 4 1/4 7 1/4 1/2 PSD150-5 PSD150-5-U 1 1/2 5 2 1/2 6 1/4 9 1/2 1/2 PSD200-3 PSD200-3-U 2 3 2 3/4 4 1/4 7 1/4 1/2 PSD200-5 PSD200-5-U 2 5 2 3/4 6 1/4 9 1/2 1/2 PSD250-3 PSD250-3-U 2 1/2 3 3 1/8 4 1/4 7 3/4 1/2 PSD250-5 PSD250-5-U 2 1/2 5 3 1/8 6 1/4 10 1/2 PSD300-3 PSD300-3-U 3 3 3 5/8 7 3/4 4 1/4 5/8 PSD300-5 PSD300-5-U 3 5 3 5/8 10 6 1/4 5/8 PSD300-7 PSD300-7-U 3 7 3 5/8 12 1/4 8 1/2 5/8 PSD350-3 PSD350-3-U 3 1/2 3 4 7 3/4 4 1/4 5/8 PSD350-5 PSD350-5-U 3 1/2 5 4 10 6 1/4 5/8 PSD400-3 PSD400-3-U 4 3 4 1/2 7 3/4 4 1/4 5/8 PSD400-5 PSD400-5-U 4 5 4 1/2 10 6 1/4 5/8 PSD400-7 PSD400-7-U 4 7 4 1/2 12 1/4 8 1/2 5/8 PSD500-3 PSD500-3-U 5 3 5 8 4 1/4 5/8 PSD500-5 PSD500-5-U 5 5 5 10 6 1/4 5/8 PSD500-7 PSD500-7-U 5 7 5 12 3/4 8 1/2 5/8 PSD600-3 PSD600-3-U 6 3 5 1/2 8 1/4 4 1/4 5/8 PSD600-5 PSD600-5-U 6 5 5 1/2 10 1/2 6 1/4 5/8 PSD600-7 PSD600-7-U 6 7 5 1/2 12 3/4 8 1/2 5/8 PSD800-7 PSD800-7-U 8 7 6 7/8 12 3/4 8 1/2 5/8 PSD PSD-U A L 3/8 PSD 3/8 PSD-U A F CUSTOMER PIPE
44 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00411, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PSRE Low Mounting Variable Bus Support An inexpensive low mounting variable bus support clamp. The wide range of conductor sizes accommodated by a reversible cap minimizes the number of clamps to cover a given range of bus sizes. Furnished complete with cap screws for cap mounting or with bolts, nuts, and lockwashers for base mounting. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES MIN MAX BOLT CIRCLE A F W BOLT SIZE PSRE75-3 1/4 1 1/16 3 1 1/2 4 1/4 2 1/2 3/8 PSRE125-3 13/16 1 11/16 3 1 5/8 4 1/4 3 1/2 1/2 PSRE200-3 1 5/8 2 3/8 3 1 5/8 4 1/4 4 1/4 1/2 PSRE75-5 1/4 1 1/16 5 1 1/2 6 1/4 2 1/2 3/8 PSRE125-5 13/16 1 11/16 5 1 5/8 6 1/4 3 1/2 1/2 PSRE200-5 1 5/8 2 3/8 5 1 5/8 6 1/4 4 1/4 1/2 A W 1 3/8 F
45 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00416, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PSS, PSS-CH Pipe Bus Support Slide or Tight Fit A high strength copper support for securing a tubular bus to a post or pedestal type insulator. Reversible cap permits rigid or slip fit on conductor. Designed with a high resistance to impact and sustained cantilever and torsion stresses. Entire unit is non- magnetic and corrosion resistant. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Note For a chatter spring add suffix "CH" to catalog number. Ordering Information CATALOG NUMBER SPS B0LT CIRCLE DIMENSIONS IN INCHES BOLT SIZE STANDARD CHATTER SPRING A B F T W PSS50-3 PSS50-3-CH 1/2 3 1 3/4 2 1/2 4 1/4 3/8 2 5/8 1/2 PSS50-5 PSS50-5-CH 1/2 5 2 1/8 2 1/2 6 1/4 3/8 2 5/8 1/2 PSS75-3 PSS75-3-CH 3/4 3 2 2 3/4 4 1/4 3/8 2 13/16 1/2 PSS75-5 PSS75-5-CH 3/4 5 2 1/4 2 3/4 6 1/4 3/8 2 13/16 1/2 PSS100-3 PSS100-3-CH 1 3 2 2 3/4 4 1/4 3/8 3 1/16 1/2 PSS100-5 PSS100-5-CH 1 5 2 1/4 2 3/4 6 1/4 3/8 3 1/16 1/2 PSS125-3 PSS125-3-CH 1 1/4 3 2 1/4 3 4 1/4 3/8 3 13/32 1/2 PSS125-5 PSS125-5-CH 1 1/4 5 2 3/8 3 6 1/4 3/8 3 13/32 1/2 PSS150-3 PSS150-3-CH 1 1/2 3 2 1/2 3 4 1/4 3/8 3 21/32 1/2 PSS150-5 PSS150-5-CH 1 1/2 5 2 1/2 3 6 1/4 3/8 3 21/32 1/2 PSS200-3 PSS200-3-CH 2 3 2 3/4 3 1/4 4 1/4 3/8 4 1/8 1/2 PSS200-5 PSS200-5-CH 2 5 2 3/4 3 1/4 6 1/4 3/8 4 1/8 1/2 PSS250-3 PSS250-3-CH 2 1/2 3 3 1/8 3 1/4 4 1/4 3/8 4 5/8 1/2 PSS250-5 PSS250-5-CH 2 1/2 5 3 1/8 3 1/4 6 1/4 3/8 4 5/8 1/2 PSS300-3 PSS300-3-CH 3 3 3 5/8 3 3/4 4 1/4 7/16 4 5/8 5/8 PSS300-5 PSS300-5-CH 3 5 3 5/8 3 3/4 6 1/4 7/16 4 5/8 5/8 PSS350-3 PSS350-3-CH 3 1/2 3 4 3 3/4 4 1/4 7/16 6 1/8 5/8 PSS350-5 PSS350-5-CH 3 1/2 5 4 3 3/4 6 1/4 7/16 6 1/8 5/8 PSS400-3 PSS400-3-CH 4 3 4 1/2 3 3/4 4 1/4 7/16 6 5/8 5/8 PSS400-5 PSS400-5-CH 4 5 4 1/2 3 3/4 6 1/4 7/16 6 5/8 5/8 PSS450-3 PSS450-3-CH 4 1/2 3 4 3/4 3 3/4 4 1/4 7/16 7 1/8 5/8 PSS450-5 PSS450-5-CH 4 1/2 5 4 3/4 3 3/4 6 1/4 7/16 7 1/8 5/8 PSS500-3 PSS500-3-CH 5 3 5 3 3/4 4 1/4 7/16 7 5/8 5/8 PSS500-5 PSS500-5-CH 5 5 5 3.75 6 1/4 7/16 7 5/8 5/8 PSS600-5 PSS600-5-CH 6 5 6 3.75 6 1/4 7/16 7 5/8 5/8 A F B W T CUSTOMER PIPE
46 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00415, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE PSSR, PSSR-CH Tubular Bus Support A high strength bronze support for securing a tubular bus to a post or pedestal type insulator. Fully adjustable to any angle within a complete circle (360°) with the advantage of four bolts maintaining angular setting as well as mounting pressure. Reversible cap permits rigid or slip fit on conductor. Supplied with cap screws for insulator cap mounting or bolts and nuts for base mounting. Unless otherwise specified cap screws are supplied. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Note Add suffix "CH" to catalog number for chatter spring. EX: PSSR200-5-CH Ordering Information CATALOG NUMBER SPS BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE CAP STANDARD CHATTER SPRING A B PSSR50-3 PSSR50-3-CH 1/2 3 1 3/4 2 1/8 3/8 PSSR50-5 PSSR50-5-CH 1/2 5 2 1/8 2 1/8 3/8 PSSR75-3 PSSR75-3-CH 3/4 3 2 2 1/8 3/8 PSSR75-5 PSSR75-5-CH 3/4 5 2 1/4 2 1/8 3/8 PSSR100-3 PSSR100-3-CH 1 3 2 2 1/8 3/8 PSSR100-5 PSSR100-5-CH 1 5 2 1/4 2 1/8 3/8 PSSR125-3 PSSR125-3-CH 1 1/4 3 2 1/4 2 1/4 1/2 PSSR125-5 PSSR125-5-CH 1 1/4 5 2 3/8 2 1/4 1/2 PSSR150-3 PSSR150-3-CH 1 1/2 3 2 1/2 2 1/2 1/2 PSSR150-5 PSSR150-5-CH 1 1/2 5 2 1/2 2 1/2 1/2 PSSR200-3 PSSR200-3-CH 2 3 2 3/4 2 3/4 1/2 PSSR200-5 PSSR200-5-CH 2 5 2 3/4 2 3/4 1/2 PSSR250-3 PSSR250-3-CH 2 1/2 3 3 1/8 3 1/2 PSSR250-5 PSSR250-5-CH 2 1/2 5 3 1/8 3 1/2 PSSR300-3 PSSR300-3-CH 3 3 3 5/8 3 1/4 5/8 PSSR300-5 PSSR300-5-CH 3 5 3 5/8 3 1/4 5/8 PSSR350-3 PSSR350-3-CH 3 1/2 3 4 3 1/4 5/8 PSSR350-5 PSSR350-5-CH 3 1/2 5 4 3 1/4 5/8 PSSR400-3 PSSR400-3-CH 4 3 4 1/2 3 1/4 5/8 PSSR400-5 PSSR400-5-CH 4 5 4 1/2 3 1/4 5/8 A B
47 Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00418, Revision 1, 1.5.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 Bronze Bus Supports TYPE PSV Vertical Pipe Bus Support A right angle bus support clamp for mounting the bus vertically on an insulator. Can be readily supplied for either 3 inch or 5 inch bolt circle for cap or base mounting. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Ordering Information CATALOG NUMBER SPS BOLT CIRCLE DIMENSIONS IN INCHES CANTILEVER FORCE LBS F H S T W ALLOWABLE ULTIMATE PSV100-3 1 3 4 1/4 4 3/8 9/16 3/8 3 1/8 1920 2750 PSV150-3 1 1/2 3 4 1/4 4 3/4 9/16 3/8 3 11/16 2000 2880 PSV150-5 1 1/2 5 6 1/4 4 3/4 11/16 3/8 3 11/16 4130 5950 PSV200-3 2 3 4 1/4 5 1/2 9/16 3/8 4 1/8 2080 2990 PSV200-5 2 5 6 1/4 4 3/4 11/16 3/8 4 1/8 4430 6380 PSV250-3 2 1/2 3 4 1/4 5 1/2 9/16 13/32 4 5/8 2160 3110 PSV250-5 2 1/2 5 6 1/4 4 3/4 11/16 13/32 4 5/8 4590 6610 PSV300-3 3 3 4 1/4 5 5/16 9/16 13/32 5 5/8 2240 3230 PSV300-5 3 5 6 1/4 5 5/16 11/16 13/32 5 5/8 4870 7010 PSV350-3 3 1/2 3 4 1/4 4 7/8 9/16 13/32 6 1/8 2720 3920 PSV350-5 3 1/2 5 6 1/4 5 1/2 11/16 13/32 6 1/8 5030 7240 PSV400-3 4 3 4 1/4 4 7/8 9/16 13/32 6 5/8 2820 4060 PSV400-5 4 5 6 1/4 4 7/8 11/16 3/8 6 5/8 5350 7700 T W S F H
48 AFLglobal.com 1 (800) 866-7385 © 2011, AFL, all rights reserved. PP-3-00444, Revision 1, 4.29.2024 Specifications are subject to change without notice. 48 Bronze Bus Supports TYPE SBC Sliding Bus Support For Tubular Bus A sliding bus support coupler for standard pipe size tubular bus. Finds wide application where short membered tubular buses are to be joined and supported on structural members or insulators.Complete unit is corrosion resistant and nonmagnetic. Material Copper Alloy Hardware Everdur bolts, nuts, lockwashers, washers, stainless steel cotter pin Mounting hardware galvanized steel Ordering Information CATALOG NUMBER SPS BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE A L SBC75-3 3/4 3 2 3 1/2 3/8 SBC75-5 3/4 5 2 1/4 3 1/2 3/8 SBC100-3 1 3 2 4 1/2 3/8 SBC100-5 1 5 2 1/4 4 1/2 3/8 SBC125-3 1 1/4 3 2 1/4 5 1/2 1/2 SBC125-5 1 1/4 5 2 3/8 5 1/2 1/2 SBC150-3 1 1/2 3 2 1/2 5 3/4 1/2 SBC150-5 1 1/2 5 2 1/2 5 3/4 1/2 SBC200-3 2 3 2 3/4 6 1/2 SBC200-5 2 5 2 3/4 6 1/2 SBC250-3 2 1/2 3 3 1/8 6 1/2 SBC250-5 2 1/2 5 3 1/8 6 1/2 SBC300-5 3 5 3 5/8 7 5/8 SBC350-5 3 1/2 5 4 8 5/8 SBC400-5 4 5 4 1/2 8 3/4 5/8 A L 1 1/4
49 Bronze Bus Supports Bronze Bus Supports © 2011, AFL, all rights reserved. PP-3-00445, Revision 0, 2.21.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE SBS Sliding Bus Support For Tubular Bus A sliding bus support for standard pipe size tubular bus. The clamp and bracket constitute a rigid member while free axial movement is effected between the bracket and mounting base. Support also permits mounting of tubular buses at slight angular deviation. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Mounting hardware galvanized steel Ordering Information CATALOG NUMBER SPS BOLT CIRCLE DIMENSIONS IN INCHES A B BOLT SIZE SBS100-3 1 3 2 2 1/8 3/8 SBS100-5 1 5 2 1/4 2 1/8 3/8 SBS125-3 1 1/4 3 2 1/4 2 5/8 1/2 SBS125-5 1 1/4 5 2 3/8 2 5/8 1/2 SBS150-3 1 1/2 3 2 1/2 2 7/8 1/2 SBS150-5 1 1/2 5 2 1/2 2 7/8 1/2 SBS200-3 2 3 2 3/4 3 1/2 SBS200-5 2 5 2 3/4 3 1/2 SBS250-3 2 1/2 3 3 1/8 3 1/8 1/2 SBS250-5 2 1/2 5 3 1/8 3 1/8 1/2 SBS300-5 3 5 3 5/8 3 1/4 5/8 SBS350-5 3 1/2 5 4 3 1/4 5/8 SBS400-5 4 5 4 1/2 3 3/8 5/8 A B 1 1/4

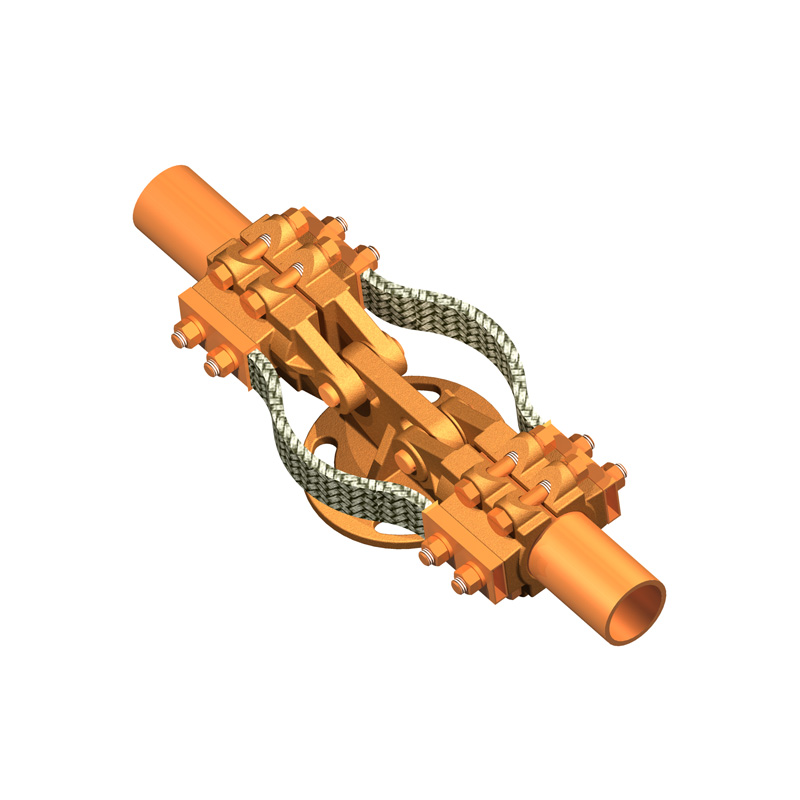

© 2011, AFL, all rights reserved. PP-3-00588, Revision 1, 5.9.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 54 Bronze Bus Supports Bronze Bus Supports TYPE XBC Copper Bus Support Coupler A bus support coupler with a flexible braid linkage designed to conduct the full rated load of the tubular buses and at the same time permit free axial movement of each bus member. The shackle type fitting allows slight angular deviation of the buses from the horizontal where they cannot be kept on a true plane. Material Copper Alloy Hardware Everdur bolts, nuts, lockwashers, galvanized steel clevis pin, and stainless steel cotter pin Ordering Information CATALOG NUMBER SPS BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE B H XBC50-3 1/2 3 2 5/8 1 3/4 3/8 XBC50-5 1/2 5 2 5/8 2 1/8 3/8 XBC75-3 3/4 3 3 2 3/8 XBC75-5 3/4 5 3 2 1/4 3/8 XBC100-3 1 3 3 2 3/8 XBC100-5 1 5 3 2 1/4 3/8 XBC125-3 1 1/4 3 3 2 1/4 1/2 XBC125-5 1 1/4 5 3 2 3/8 1/2 XBC150-3 1 1/2 3 3 1/4 2 1/2 1/2 XBC150-5 1 1/2 5 3 1/4 2 1/2 1/2 XBC200-3 2 3 3 1/4 2 3/4 1/2 XBC200-5 2 5 3 1/4 2 3/4 1/2 XBC250-3 2 1/2 3 3 1/4 3 1/8 1/2 XBC250-5 2 1/2 5 3 1/4 3 1/8 1/2 XBC300-3 3 3 3 3/4 3 5/8 5/8 XBC300-5 3 5 3 3/4 3 5/8 5/8 XBC350-3 3 1/2 3 3 3/4 4 5/8 XBC350-5 3 1/2 5 3 3/4 4 5/8 XBC400-3 4 3 4 4 1/2 5/8 XBC400-5 4 5 4 4 1/2 5/8 XBC600-5 6 5 6 3/4 5 1/2 5/8 B H
Características:
- Disponible con círculos de pernos de 3, 5 y 7 pulgadas
- Aleación de bronce
- Herrajes Everdur
- Cumple las normas de NEMA CC1
Aplicaciones:
- Calificada para 230 kV
- Subestación
- Tubo de bus de cobre
Los soportes de bronce para tubos de bus están diseñados para conectar los tubos de bus a los aisladores en círculos de pernos de 3, 5 y 7 pulgadas.
AFL ofrece soportes de bus fijos, deslizantes, verticales y de expansión.
