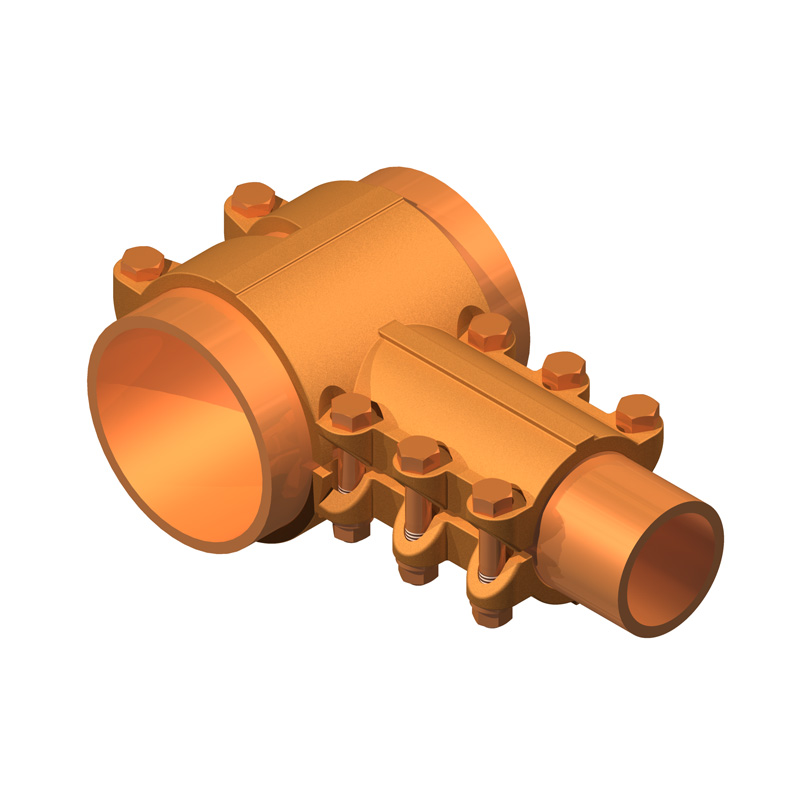

Los conectores en T de bronce atornillados para tubos de bus de 230 kV están diseñados para realizar una conexión en T en la construcción de buses. El conector se puede utilizar en tubos Schedule 40 y Schedule 80.
0404a973ff1249859851295871ad551c
82 Bronze Elbows Tee & V ee Connectors © 2011, AFL, all rights reserved. PP-3-00250, Revision 2, 3.18.14 Specifications are subject to change without notice. Bronze Elbows Tee & Vee Connectors www.AFLglobal.com or 800-890-8878 TYPE BP, BPA-75, BPA-80 Standard, 75 degree and 80 degree Tee Connector A two piece all copper tee connector designed for maximum efficiency and reliability. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers BP BPA-75 BPA-80 75º 80º A S.P.S. RUN B S.P.S. TAP BP A S.P.S. RUN S.P.S. TAP B BP
83 Bronze Elbows Tee & V ee Connectors © 2011, AFL, all rights reserved. PP-3-00250, Revision 2, 3.18.14 Specifications are subject to change without notice. Bronze Elbows Tee & Vee Connectors www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES BOLT SIZE STANDARD 75 DEG 80 DEG RUN TAP A B BP100-75 BPA100-75-75 BPA100-75-80 1 3/4 2-3/4 2-3/4 1/2 BP100-100 BPA100-100-75 BPA100-100-80 1 1 2-3/4 2-3/4 1/2 BP125-75 BPA125-75-75 BPA125-75-80 1-1/4 3/4 3 2-3/4 1/2 BP125-100 BPA125-100-75 BPA125-100-80 1-1/4 1 3 2-3/4 1/2 BP125-125 BPA125-125-75 BPA125-125-80 1-1/4 1-1/4 3 3 1/2 BP150-100 BPA150-100-75 BPA150-100-80 1-1/2 1 3 2-3/4 1/2 BP150-125 BPA150-125-75 BPA150-125-80 1-1/2 1-1/4 3 3 1/2 BP150-150 BPA150-150-75 BPA150-150-80 1-1/2 1-1/2 3 3 1/2 BP200-100 BPA200-100-75 BPA200-100-80 2 1 3-1/4 2-3/4 1/2 BP200-125 BPA200-125-75 BPA200-125-80 2 1-1/4 3-1/4 3 1/2 BP200-150 BPA200-150-75 BPA200-150-80 2 1-1/2 3-1/4 3 1/2 BP200-200 BPA200-200-75 BPA200-200-80 2 2 3-1/4 3-1/4 1/2 BP250-100 BPA250-100-75 BPA250-100-80 2-1/2 1 3-1/4 2-3/4 1/2 BP250-125 BPA250-125-75 BPA250-125-80 2-1/2 1-1/4 3-1/4 3 1/2 BP250-150 BPA250-150-75 BPA250-150-80 2-1/2 1-1/2 3-1/4 3 1/2 BP250-200 BPA250-200-75 BPA250-200-80 2-1/2 2 3-1/4 3-1/4 1/2 BP250-250 BPA250-250-75 BPA250-250-80 2-1/2 2-1/2 3-1/4 3-1/4 1/2 BP300-100 BPA300-100-75 BPA300-100-80 3 1 3-1/4 2-3/4 1/2 BP300-125 BPA300-125-75 BPA300-125-80 3 1-1/4 3-1/4 3 1/2 BP300-150 BPA300-150-75 BPA300-150-80 3 1-1/2 3-1/4 3 1/2 BP300-200 BPA300-200-75 BPA300-200-80 3 2 3-1/4 3-1/4 1/2 BP300-250 BPA300-250-75 BPA300-250-80 3 2-1/2 3-1/4 3-1/4 1/2 BP300-300 BPA300-300-75 BPA300-300-80 3 3 3-3/4 3-3/4 5/8 BP350-100 BPA350-100-75 BPA350-100-80 3-1/2 1 3-1/4 2-3/4 1/2 BP350-125 BPA350-125-75 BPA350-125-80 3-1/2 1-1/4 3-1/4 3 1/2 BP350-150 BPA350-150-75 BPA350-15080 3-1/2 1-1/2 3-1/4 3 1/2 BP350-200 BPA350-200-75 BPA350-200-80 3-1/2 2 3-1/4 3-1/4 1/2 BP350-250 BPA350-250-75 BPA350-250-80 3-1/2 2-1/2 3-3/4 3-3/4 5/8 BP350-300 BPA350-300-75 BPA350-300-80 3-1/2 3 3-3/4 3-3/4 5/8 BP350-350 BPA350-350-75 BPA350-350-80 3-1/2 3-1/2 3-3/4 3-3/4 5/8 BP400-125 BPA400-125-75 BPA400-125-80 4 1-1/4 3-1/4 3 1/2 BP400-150 BPA400-150-75 BPA400-150-80 4 1-1/2 3-1/4 3 1/2 BP400-200 BPA400-200-75 BPA400-200-80 4 2 3-1/4 3-1/4 1/2 BP400-250 BPA400-250-75. BPA400-250-80 4 2-1/2 3-1/4 3-1/4 1/2 BP400-300 BPA400-300-75 BPA400-300-80 4 3 3-3/4 3-3/4 5/8 BP400-350 BPA400-350-75 BPA400-350-80 4 3-1/2 3-3/4 3-3/4 5/8 BP400-400 BPA400-400-75 BPA400-400-80 4 4 3-3/4 3-3/4 5/8 BP500-150 BPA500-150-75 BPA500-150-80 5 1-1/2 3-1/2 3 1/2 BP500-200 BPA500-200-75 BPA500-200-80 5 2 3-1/2 3-1/4 1/2 BP500-250 BPA500-250-75 BPA500-250-80 5 2-1/2 3-1/2 3-1/4 1/2 BP500-300 BPA500-300-75 BPA500-300-80 5 3 4 3-3/4 5/8 BP500-350 BPA500-350-75 BPA500-350-80 5 3-1/2 4 3-3/4 5/8 BP500-400 BPA500-400-75 BPA500-400-80 5 4 4 3-3/4 5/8 BP500-500 BPA500-500-75 BPA500-500-80 5 5 4 4 5/8 BP600-250 BPA600-250-75 BPA600-250-80 6 2-1/2 3-1/2 3-1/2 1/2 BP600-300 BPA600-300-75 BPA600-300-80 6 3 4 3-3/4 5/8 BP600-350 BPA600-350-75 BPA600-350-80 6 3-1/2 4 3-3/4 5/8 BP600-400 BPA600-400-75 BPA600-400-80 6 4 4 3-3/4 5/8 BP600-500 BPA600-500-75 BPA600-500-80 6 5 4 4 5/8 BP600-600 BPA600-600-75 BPA600-600-80 6 6 4 4 5/8 TYPE BP, BPA-75, BPA-80 Standard, 75 degree and 80 degree Tee Connector
www.AFLglobal.com or 800-890-8878 86 Bronze Elbows T ee & V ee Connectors © 2011, AFL, all rights reserved. PP-3-00256, Revision 3, 8.10.18 Specifications are subject to change without notice. Bronze Elbows Tee & Vee Connectors TYPE BPE Copper Heavy Duty Tee For Tubular Bus A heavy duty tee connector for standard and extra heavy size of tubular bus. Designed to provide a minimum of four bolts for each conductor. Made of high strength high conductivity copper alloy and designed with a conductive area and contact surface to insure cooler-than-bus operation at maximum load conditions. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES BOLT SIZE RUN TAP B L BPE50-50 1/2 1/2 2.50 4.50 3/8 BPE75-50 3/4 1/2 2.50 4.75 3/8 BPE75-75 3/4 3/4 2.69 4.75 3/8 BPE100-50 1 1/2 2.50 5.25 3/8 BPE100-75 1 3/4 2.69 5.38 3/8 BPE100-100 1 1 2.94 5.50 3/8 BPE125-50 1 1/4 1/2 2.50 5.88 3/8 BPE125-75 1 1/4 3/4 2.69 6.00 3/8 BPE125-100 1 1/4 1 2.88 6.25 1/2 BPE125-125 1 1/4 1 1/4 3.81 7.00 1/2 BPE150-50 1 1/2 1/2 2.50 5.94 3/8 BPE150-75 1 1/2 3/4 2.69 6.06 3/8 BPE150-100 1 1/2 1 2.94 6.13 3/8 BPE150-125 1 1/2 1 1/4 3.81 7.25 1/2 BPE150-150 1 1/2 1 1/2 4.00 7.69 1/2 BPE200-50 2 1/2 4.13 6.88 1/2 BPE200-75 2 3/4 2.69 6.38 3/8 BPE200-100 2 1 2.94 6.75 3/8 BPE200-125 2 1 1/4 3.81 7.50 1/2 BPE200-150 2 1 1/2 4.00 8.06 1/2 BPE200-200 2 2 4.50 8.25 1/2 B L
www.AFLglobal.com or 800-890-8878 87 Bronze Elbows T ee & V ee Connectors © 2011, AFL, all rights reserved. PP-3-00256, Revision 3, 8.10.18 Specifications are subject to change without notice. Bronze Elbows Tee & Vee Connectors TYPE BPE Copper Heavy Duty Tee For Tubular Bus Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES BOLT SIZE RUN TAP B L BPE250-50 2 1/2 1/2 2.50 7.00 3/8 BPE250-75 2 1/2 3/4 2.69 7.00 3/8 BPE250-100 2 1/2 1 2.94 7.13 3/8 BPE250-125 2 1/2 1 1/4 3.81 8.38 1/2 BPE250-150 2 1/2 1 1/2 4.00 8.56 1/2 BPE250-200 2 1/2 2 4.50 8.75 1/2 BPE250-250 2 1/2 2 1/2 5.00 8.94 1/2 BPE300-50 3 1/2 2.00 8.38 3/8 BPE300-75 3 3/4 2.69 8.38 3/8 BPE300-100 3 1 2.94 8.50 3/8 BPE300-125 3 1 1/4 3.81 9.25 1/2 BPE300-150 3 1 1/2 4.00 9.38 1/2 BPE300-200 3 2 4.50 9.50 1/2 BPE300-250 3 2 1/2 5.00 9.63 1/2 BPE300-300 3 3 6.00 9.75 5/8 BPE300-400 3 4 6.63 10.38 5/8 BPE350-50 3 1/2 1/2 2.50 8.75 3/8 BPE350-75 3 1/2 3/4 2.69 8.75 3/8 BPE350-100 3 1/2 1 2.94 8.88 3/8 BPE350-125 3 1/2 1 1/4 3.81 9.75 1/2 BPE350-150 3 1/2 1 1/2 4.00 9.88 1/2 BPE350-200 3 1/2 2 4.50 10.00 1/2 BPE350-250 3 1/2 2 1/2 5.00 10.13 1/2 BPE350-300 3 1/2 3 6.00 10.75 5/8 BPE350-350 3 1/2 3 1/2 6.50 10.88 5/8 BPE400-50 4 1/2 2.50 9.13 3/8 BPE400-75 4 3/4 2.69 9.13 3/8 BPE400-100 4 1 2.94 9.25 3/8 BPE400-125 4 1 1/4 3.81 10.25 1/2 BPE400-150 4 1 1/2 4.00 10.38 1/2 BPE400-200 4 2 4.50 10.50 1/2 BPE400-250 4 2 1/2 5.00 10.69 1/2 BPE400-300 4 3 6.00 11.19 5/8 BPE400-350 4 3 1/2 6.50 11.31 5/8 BPE400-400 4 4 7.00 11.44 5/8
Características:
- Aleación de bronce
- Ajuste externo de la tubería de bus para la tubería de bus SCH 40 y SCH 80
- Herrajes Everdur
Aplicaciones:
- Calificada para 230 kV
- Subestación
- Tubo de bus de cobre
Los conectores en T de bronce atornillados para tubos de bus de 230 kV están diseñados para realizar una conexión en T en la construcción de buses. El conector se puede utilizar en tubos Schedule 40 y Schedule 80.
