La borne à compression HiTemp 15 degrés est spécialement conçue et fabriquée pour offrir une meilleure dissipation de la chaleur. Les accessoires à compression HiTemp d'AFL sont conçus pour fonctionner 25 à 30 % plus froidement que le conducteur, ce qui prolonge sa durée de vie. La gamme de produits HiTemp est conçue pour fonctionner jusqu'à 250°C.
1fbcd62ab59f460cb0daead450ca6727

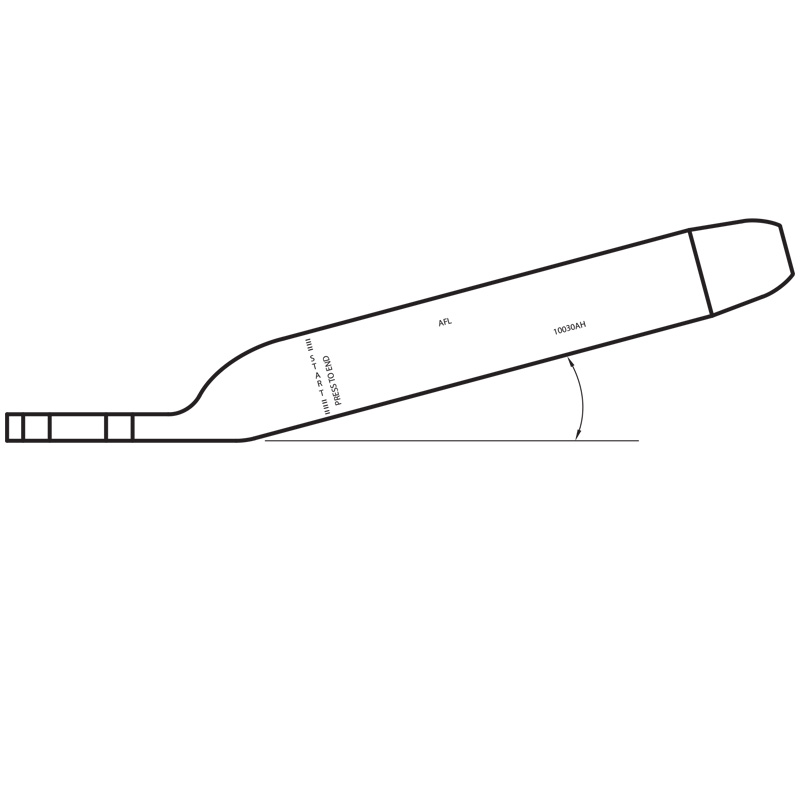

7 15° and Straight Terminals for ACCC T PRESS TO END 10030AH S A R T AFL Catalog Number Configuration for 15 ° and Straight Terminals B11403 AFL Code Notes 1. For 345 kV and above, add suffix "EHV" to AFL No. For example, B11403-AZEHV-ACCC. 2. For more information, contact AFL at 1.800.866.7385. 3. Additional angles available upon request. 15° Blank = voltage <345 kV EHV = voltage ≥ 345 kV EHV AFL NO. ACCC CONDUCTOR DIAMETER CORE DIAMETER WEIGHT CORE RATED STRENGTH COND. RATED STRENGTH TERMINAL 15 ° STRAIGHT TERMINAL SIZE (KCMIL) (MM²) (IN) (MM) (IN) (MM) (LB/ KFT) (KG/ KM) (LBF) (KN) (LBF) (KN) B11403-K-ACCC B11938-K-ACCC HELSINKI 297 150.6 0.616 15.65 0.235 5.97 317 471 13,600 60.4 15,500 68.9 B11403-G-ACCC B11938-G-ACCC JAIPUR 309 156.7 0.650 16.50 0.305 7.75 349 519 22,900 101.7 24,900 110.8 B11403-BB-ACCC B11938-BB-ACCC ZADAR 356 180.3 0.673 17.09 0.280 7.11 386 574 19,300 85.7 21,600 96.1 B11403-BC-ACCC B11938-BC-ACCC ROVINJ 378 191.6 0.673 17.10 0.235 5.97 392 583 13,600 60.4 16,000 71.2 B11403-L-ACCC B11938-L-ACCC COPENHAGEN 434 219.9 0.720 18.29 0.235 5.97 444 661 13,600 60.4 16,400 72.8 B11403-M-ACCC B11938-M-ACCC REYKJAVIK 440 223.1 0.741 18.82 0.280 7.11 466 694 19,300 85.7 22,100 98.3 B11403-BD-ACCC B11938-BD-ACCC GDANSK 491 248.7 0.756 19.20 0.235 5.97 499 743 13,600 60.4 16,700 74.3 B11403-N-ACCC B11938-N-ACCC GLASGOW 467 236.7 0.769 19.53 0.305 7.75 492 732 22,900 101.7 25,900 115.0 B11403-P-ACCC B11938-P-ACCC CASABLANCA 540 273.6 0.807 20.50 0.280 7.11 561 834 19,300 85.7 22,700 101.1 B11403-R-ACCC B11938-R-ACCC MONTE CARLO 451 228.5 0.818 20.78 0.415 10.54 537 799 42,300 188.3 45,200 201.2 B11403-S-ACCC B11938-S-ACCC ULS MONTE CARLO 451 228.5 0.819 20.79 0.415 10.54 537 799 50,700 225.6 53,600 238.6 B11403-B-ACCC B11938-B-ACCC LISBON 623 315.5 0.858 21.79 0.280 7.11 637 948 19,300 85.7 23,300 103.5 B11403-F-ACCC B11938-F-ACCC OSLO 619 313.8 0.882 22.40 0.345 8.76 659 981 29,300 130.2 33,200 147.8 B11403-T-ACCC B11938-T-ACCC AMSTERDAM 725 367.4 0.927 23.55 0.305 7.75 740 1101 22,900 101.7 27,500 122.4 B11403-X-ACCC B11938-X-ACCC ULS 25mm 753 381.8 0.984 25.00 0.415 10.54 817 1216 50,700 225.6 55,600 247.2 B11403-W-ACCC B11938-W-ACCC BRUSSELS 832 421.4 0.990 25.15 0.320 8.13 850 1265 25,200 112.0 30,500 135.7 B11403-Y-ACCC B11938-Y-ACCC ULS LEIPZIG 802 406.4 0.990 25.15 0.375 9.53 842 1253 41,300 183.5 46,600 207.3 B11403-BE-ACCC B11938-BE-ACCC STOCKHOLM 2L 914 463.3 1.039 26.39 0.345 8.76 937 1395 29,300 130.2 35,100 156.2 B11403-BE-ACCC B11938-BE-ACCC STOCKHOLM 3L 895 453.7 1.039 26.39 0.345 8.76 919 1368 29,300 130.2 35,000 155.7 B11403-Z-ACCC B11938-Z-ACCC WARSAW 1002 507.5 1.091 27.71 0.345 8.76 1021 1520 29,300 130.2 35,700 158.7 B11403-A-ACCC B11938-A-ACCC DUBLIN 1035 524.5 1.108 28.14 0.375 9.53 1064 1583 34,600 153.8 41,200 183.3 B11403-AB-ACCC B11938-AB-ACCC HAMBURG 1078 546.4 1.127 28.63 0.345 8.76 1093 1627 29,300 130.2 36,200 160.9 B11403-AC-ACCC B11938-AC-ACCC KOLKATA 1073 543.5 1.127 28.63 0.375 9.53 1104 1643 34,600 153.8 41,400 184.0 B11403-AD-ACCC B11938-AD-ACCC ULS MAHAKAM 1075 544.9 1.142 29.01 0.415 10.54 1127 1677 50,700 225.6 57,600 256.3 B11403-AE-ACCC B11938-AE-ACCC MILAN 1120 567.7 1.146 29.11 0.345 8.76 1133 1686 29,300 130.2 36,400 162.1 B11403-AF-ACCC B11938-AF-ACCC ROME 1169 592.5 1.177 29.90 0.375 9.53 1192 1774 34,600 153.8 42,100 187.1 B11403-AG-ACCC B11938-AG-ACCC VIENNA 1242 629.2 1.198 30.43 0.345 8.76 1245 1853 29,300 130.2 37,200 165.5 B11403-AH-ACCC B11938-AH-ACCC BUDAPEST 1319 668.3 1.240 31.50 0.375 9.53 1333 1984 34,600 153.8 43,000 191.4 B11403-AK-ACCC B11938-AK-ACCC PRAGUE 1363 690.7 1.251 31.78 0.345 8.76 1364 2031 29,300 130.2 38,000 169.0 B11403-AL-ACCC B11938-AL-ACCC ULS PRAGUE 1363 690.7 1.251 31.78 0.345 8.76 1364 2031 34,900 155.1 43,800 194.8 B11403-AM-ACCC B11938-AM-ACCC MUMBAI 1353 685.4 1.251 31.78 0.375 9.53 1367 2035 34,600 153.8 43,200 192.0 B11403-H-ACCC B11938-H-ACCC MUNICH 1447 733.1 1.293 32.84 0.375 9.53 1458 2170 34,600 153.8 43,800 195.0 B11403-AN-ACCC B11938-AN-ACCC LONDON 1498 759.0 1.315 33.40 0.385 9.78 1511 2248 36,400 162.1 46,000 204.8 ACCC
8 15° and Straight Terminals for ACCC (cont.) AFL NO. ACCC CONDUCTOR DIAMETER CORE DIAMETER WEIGHT CORE RATED STRENGTH COND. RATED STRENGTH TERMINAL 15 ° STRAIGHT TERMINAL SIZE (KCMIL) (MM²) (IN) (MM) (IN) (MM) (LB/ KFT) (KG/ KM) (LBF) (KN) (LBF) (KN) B11403-AP-ACCC B11938-AP-ACCC PARIS 1606 813.7 1.345 34.16 0.345 8.76 1590 2366 29,300 130.2 39,600 175.9 B11403-AW-ACCC B11938-AW-ACCC BORDEAUX 1738 880.8 1.408 35.76 0.415 10.54 1859 2766 42,300 188.3 53,500 237.9 B11403-AS-ACCC B11938-AS-ACCC ANTWERP 1865 944.8 1.451 36.86 0.385 9.78 1855 2760 36,400 162.1 48,400 215.2 B11403-AT-ACCC B11938-AT-ACCC ULS ANTWERP 1865 944.8 1.451 36.86 0.385 9.78 1855 2760 43,500 193.5 55,600 247.3 B11403-E-ACCC B11938-E-ACCC BERLIN (MADRID-ICE) 1986 1006.5 1.504 38.20 0.415 10.54 1982 2949 42,300 188.3 55,100 245.0 B11403-AX-ACCC B11938-AX-ACCC MADRID 1999 1013.0 1.504 38.20 0.385 9.78 1981 2948 36,400 162.1 49,200 219.1 B11403-AZ-ACCC B11938-AZ-ACCC ATHENS 2782 1409.6 1.762 44.75 0.415 10.54 2732 4066 42,300 188.3 60,200 267.6
Aluminium spécialement trempé
Matrices standard AH et SH
