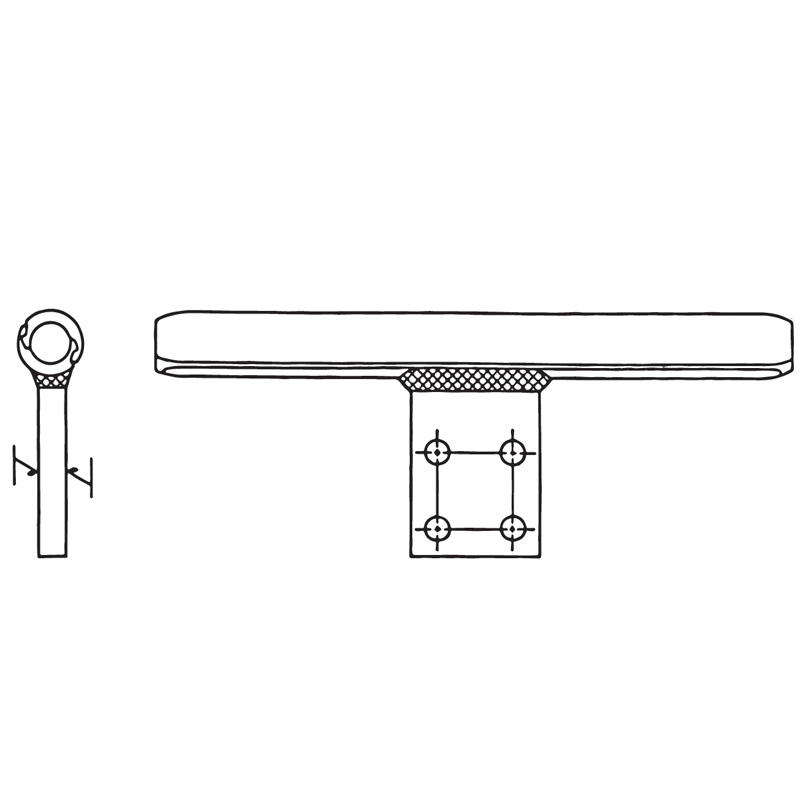

Le raccord en T boulonné HiTemp est spécialement conçu et fabriqué pour offrir une meilleure dissipation de la chaleur. Les accessoires de compression HiTemp d'AFL sont conçus pour fonctionner 25 à 30 % plus froid que le conducteur, ce qui prolonge sa durée de vie. La gamme de produits HiTemp est conçue pour fonctionner jusqu'à 250°C.
1fbcd62ab59f460cb0daead450ca6727
13 Bolted Tee Tap for ACCC Catalog Number Configuration for Bolted Tee Taps D11567 AFL Code Notes 1. For 345 kV and above, add suffix"EHV" to AFL No. For example: D11567-LEHV-ACCC 2. For more information, contact AFL at 1.800.866.7385. Blank = voltage <345 kV EHV = voltage ≥ 345 kV EHV AFL NO. ACCC CONDUCTOR DIAMETER CORE DIAMETER WEIGHT CORE RATED STRENGTH COND. RATED STRENGTH BOLTED TEE TAP SIZE (KCMIL) (MM²) (IN) (MM) (IN) (MM) (LB/ KFT) (KG/ KM) (LBF) (KN) (LBF) (KN) D11567-K-ACCC PASADENA 305 154.4 0.616 15.65 0.235 5.97 321 478 13,600 60.4 15,500 68.9 D11567-K-ACCC HELSINKI 297 150.6 0.616 15.65 0.235 5.97 317 471 13,600 60.4 15,500 68.9 D11567-G-ACCC JAIPUR 309 156.7 0.650 16.50 0.305 7.75 349 519 22,900 101.7 24,900 110.8 D11567-BB-ACCC ZADAR 356 180.3 0.673 17.09 0.280 7.11 386 574 19,300 85.7 21,600 96.1 D11567-BC-ACCC ROVINJ 378 191.6 0.673 17.10 0.235 5.97 392 583 13,600 60.4 16,000 71.2 D11567-BC-ACCC OSTRICH (OCEANSIDE) 383 194.2 0.680 17.27 0.235 5.97 396 589 13,600 60.4 16,000 71.2 D11567-L-ACCC LINNET (LA JOLLA) 430 218.1 0.720 18.29 0.235 5.97 440 655 13,600 60.4 16,300 72.5 D11567-L-ACCC COPENHAGEN 434 219.9 0.720 18.29 0.235 5.97 444 661 13,600 60.4 16,400 72.8 D11567-M-ACCC ORIOLE (OXNARD) 439 222.3 0.741 18.82 0.280 7.11 463 689 19,300 85.7 22,100 98.3 D11567-M-ACCC REYKJAVIK 440 223.1 0.741 18.82 0.280 7.11 466 694 19,300 85.7 22,100 98.3 D11567-BD-ACCC GDANSK 491 248.7 0.756 19.20 0.235 5.97 499 743 13,600 60.4 16,700 74.3 D11567-N-ACCC GLASGOW 467 236.7 0.769 19.53 0.305 7.75 492 732 22,900 101.7 25,900 115.0 D11567-N-ACCC WACO 454 230.1 0.770 19.56 0.305 7.75 485 721 22,900 101.7 25,800 114.8 D11567-P-ACCC LAREDO 530 268.4 0.807 20.50 0.280 7.11 548 816 19,300 85.7 22,700 101.0 D11567-P-ACCC CASABLANCA 540 273.6 0.807 20.50 0.280 7.11 561 834 19,300 85.7 22,700 101.1 D11567-R-ACCC MONTE CARLO 451 228.5 0.818 20.78 0.415 10.54 537 799 42,300 188.3 45,200 201.2 D11567-S-ACCC ULS MONTE CARLO 451 228.5 0.819 20.79 0.415 10.54 537 799 50,700 225.6 53,600 238.6 D11567-B-ACCC HAWK (HERMOSA/LISBOON) 611 309.7 0.858 21.79 0.280 7.11 625 930 19,300 85.7 23,200 103.2 D11567-B-ACCC LISBON 623 315.5 0.858 21.79 0.280 7.11 637 948 19,300 85.7 23,300 103.5 D11567-F-ACCC IRVING 609 308.8 0.882 22.40 0.345 8.76 649 965 29,300 130.2 33,200 147.7 D11567-F-ACCC OSLO 619 313.8 0.882 22.40 0.345 8.76 659 981 29,300 130.2 33,200 147.8 D11567-T-ACCC DOVE (DOHNEY) 714 361.5 0.927 23.55 0.305 7.75 728 1083 22,900 101.7 27,500 122.3 D11567-T-ACCC AMSTERDAM 725 367.4 0.927 23.55 0.305 7.75 740 1101 22,900 101.7 27,500 122.4 D11567-X-ACCC ULS 25mm 753 381.8 0.984 25.00 0.415 10.54 817 1216 50,700 225.6 55,600 247.2 D11567-W-ACCC GROSBEAK (GOLETA) 821 416.2 0.990 25.15 0.320 8.13 837 1245 25,200 112.0 30,400 135.2 D11567-W-ACCC BRUSSELS 832 421.4 0.990 25.15 0.320 8.13 850 1265 25,200 112.0 30,500 135.7 D11567-Y-ACCC ULS LEIPZIG 802 406.4 0.990 25.15 0.375 9.53 842 1253 41,300 183.5 46,600 207.3 D11567-BE-ACCC STOCKHOLM 2L 914 463.3 1.039 26.39 0.345 8.76 937 1395 29,300 130.2 35,100 156.2 D11567-BE-ACCC STOCKHOLM 3L 895 453.7 1.039 26.39 0.345 8.76 919 1368 29,300 130.2 35,000 155.7 D11567-BF-ACCC LUBBOCK 904 458.0 1.040 26.42 0.345 8.76 924 1376 29,300 130.2 35,100 156.1 D11567-Z-ACCC GALVESTON 1011 512.4 1.090 27.69 0.345 8.76 1025 1526 29,300 130.2 35,700 158.8 D11567-Z-ACCC WARSAW 1002 507.5 1.091 27.71 0.345 8.76 1021 1520 29,300 130.2 35,700 158.7 D11567-A-ACCC DRAKE (DEL MAR) 1026 519.7 1.108 28.14 0.375 9.53 1052 1565 34,600 153.8 41,200 183.3 D11567-A-ACCC DUBLIN 1035 524.5 1.108 28.14 0.375 9.53 1064 1583 34,600 153.8 41,200 183.3 D11567-AB-ACCC PLANO 1059 536.8 1.127 28.63 0.345 8.76 1073 1597 29,300 130.2 36,000 160.1 D11567-AB-ACCC HAMBURG 1078 546.4 1.127 28.63 0.345 8.76 1093 1627 29,300 130.2 36,200 160.9 D11567-AC-ACCC KOLKATA 1073 543.5 1.127 28.63 0.375 9.53 1104 1643 34,600 153.8 41,400 184.0 D11567-AA-ACCC CURLEW (CRESCENT) 1033 523.4 1.140 28.96 0.415 10.54 1082 1610 42,300 188.3 49,000 218.0 ACCC
14 Bolted Tee Taps for ACCC (cont.) AFL NO. ACCC CONDUCTOR DIAMETER CORE DIAMETER WEIGHT CORE RATED STRENGTH COND. RATED STRENGTH BOLTED TEE TAP SIZE (KCMIL) (MM²) (IN) (MM) (IN) (MM) (LB/ KFT) (KG/ KM) (LBF) (KN) (LBF) (KN) D11567-AD-ACCC ULS MAHAKAM 1075 544.9 1.142 29.01 0.415 10.54 1127 1677 50,700 225.6 57,600 256.3 D11567-AE-ACCC CORPUS CHRISTI 1103 558.9 1.146 29.11 0.345 8.76 1113 1657 29,300 130.2 36,300 161.5 D11567-AE-ACCC MILAN 1120 567.7 1.146 29.11 0.345 8.76 1133 1686 29,300 130.2 36,400 162.1 D11567-AF-ACCC ARLINGTON 1151 583.2 1.177 29.90 0.375 9.53 1173 1745 34,600 153.8 41,900 186.4 D11567-AF-ACCC ROME 1169 592.5 1.177 29.90 0.375 9.53 1192 1774 34,600 153.8 42,100 187.1 D11567-AG-ACCC CARDINAL (CARLSBAD) 1222 619.1 1.198 30.43 0.345 8.76 1225 1823 29,300 130.2 37,100 165.0 D11567-AG-ACCC VIENNA 1242 629.2 1.198 30.43 0.345 8.76 1245 1853 29,300 130.2 37,200 165.5 D11567-AH-ACCC FORT WORTH 1300 658.9 1.240 31.50 0.375 9.53 1312 1952 34,600 153.8 42,900 190.8 D11567-AH-ACCC BUDAPEST 1319 668.3 1.240 31.50 0.375 9.53 1333 1984 34,600 153.8 43,000 191.4 D11567-AK-ACCC PRAGUE 1363 690.7 1.251 31.78 0.345 8.76 1364 2031 29,300 130.2 38,000 169.0 D11567-AL-ACCC ULS PRAGUE 1363 690.7 1.251 31.78 0.345 8.76 1364 2031 34,900 155.1 43,800 194.8 D11567-AM-ACCC MUMBAI 1353 685.4 1.251 31.78 0.375 9.53 1367 2035 34,600 153.8 43,200 192.0 D11567-AK-ACCC EL PASO 1350 684.0 1.252 31.80 0.345 8.76 1345 2002 29,300 130.2 37,900 168.6 D11567-AL-ACCC ULS El PASO 1350 684.0 1.252 31.80 0.345 8.76 1345 2002 34,900 155.1 43,500 193.5 D11567-H-ACCC MUNICH 1447 733.1 1.293 32.84 0.375 9.53 1458 2170 34,600 153.8 43,800 195.0 D11567-H-ACCC BEAUMONT 1429 723.9 1.294 32.87 0.375 9.53 1436 2136 34,600 153.8 43,700 194.4 D11567-AN-ACCC SAN ANTONIO 1475 747.3 1.315 33.40 0.385 9.78 1486 2212 36,400 162.1 45,900 204.2 D11567-AN-ACCC LONDON 1498 759.0 1.315 33.40 0.385 9.78 1511 2248 36,400 162.1 46,000 204.8 D11567-AP-ACCC BITTERN (BALBOA) 1582 801.4 1.345 34.16 0.345 8.76 1566 2331 29,300 130.2 39,400 175.3 D11567-AR-ACCC ULS BITTERN (BALBOA) 1582 801.4 1.345 34.16 0.345 8.76 1566 2331 34,900 155.1 45,000 200.2 D11567-AP-ACCC PARIS 1606 813.7 1.345 34.16 0.345 8.76 1590 2366 29,300 130.2 39,600 175.9 D11567-AW-ACCC BORDEAUX 1738 880.8 1.408 35.76 0.415 10.54 1859 2766 42,300 188.3 53,500 237.9 D11567-AS-ACCC ANTWERP 1865 944.8 1.451 36.86 0.385 9.78 1855 2760 36,400 162.1 48,400 215.2 D11567-AT-ACCC ULS ANTWERP 1865 944.8 1.451 36.86 0.385 9.78 1855 2760 43,500 193.5 55,600 247.3 D11567-AS-ACCC DALLAS 1795 909.5 1.452 36.88 0.385 9.78 1795 2671 36,400 162.1 47,900 213.1 D11567-AT-ACCC ULS DALLAS 1795 909.5 1.452 36.88 0.385 9.78 1795 2671 43,500 193.5 55,000 244.7 D11567-AX-ACCC LAPWING (LAGUNA) 1949 987.5 1.504 38.20 0.385 9.78 1940 2887 36,400 162.1 48,900 217.5 D11567-E-ACCC BERLIN (MADRID-ICE) 1986 1006.5 1.504 38.20 0.415 10.54 1982 2949 42,300 188.3 55,100 245.0 D11567-AX-ACCC MADRID 1999 1013.0 1.504 38.20 0.385 9.78 1981 2948 36,400 162.1 49,200 219.1 D11567-E-ACCC HOUSTON 1927 976.6 1.506 38.25 0.415 10.54 1934 2878 42,300 188.3 54,700 243.3 D11567-AY-ACCC FALCON (SANOMA) 2045 1036.2 1.545 39.24 0.415 10.54 2045 3044 42,300 188.3 55,400 246.4 D11567-D-ACCC CHUKAR (CARMEL) 2242 1135.8 1.604 40.74 0.395 10.03 2220 3303 38,400 170.6 52,700 234.4 D11567-BA-ACCC CHUKAR II (CAPIST - RANO) 2606 1320.3 1.720 43.69 0.395 10.03 2570 3825 38,400 170.6 55,100 245.1 D11567-AZ-ACCC BLUEBIRD (BIG SUR) 2741 1388.7 1.762 44.75 0.415 10.54 2703 4022 42,300 188.3 59,900 266.4 D11567-AZ-ACCC ATHENS 2782 1409.6 1.762 44.75 0.415 10.54 2732 4066 42,300 188.3 60,200 267.6
Caractéristiques :
- Aluminium spécialement trempé
- Matrices standard AH et SH
