Le manchon de réparation Quick Compress d'AFL pour les conducteurs ACSR fonctionne à des températures allant jusqu'à 100°C (212°F).

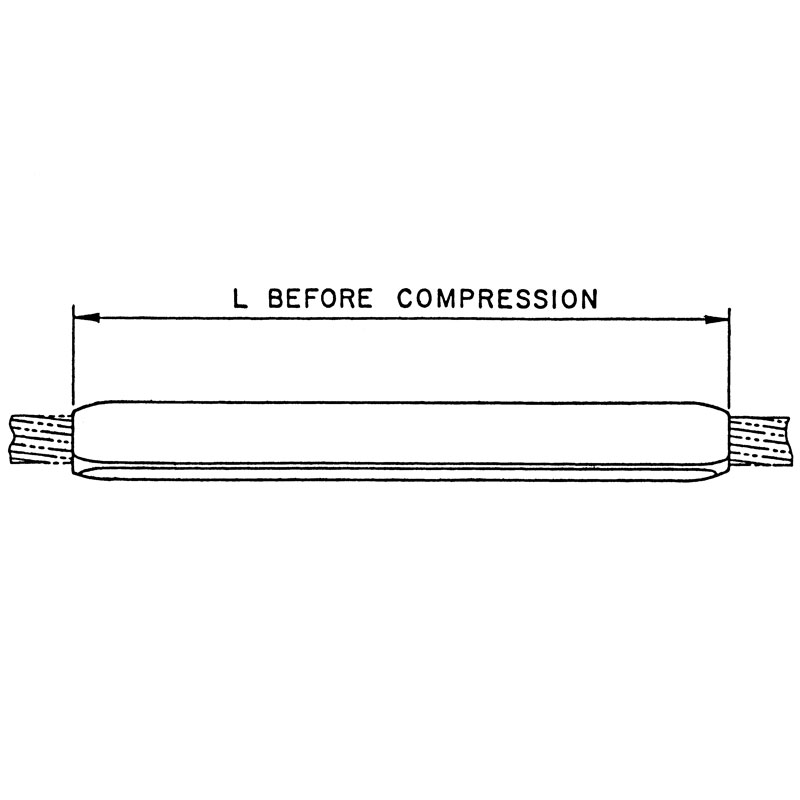

175 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Repair Sleeve is designed for ACSR, AAC, AAAC and ACAR conductors. The repair sleeve incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed. The repair sleeve will restore the conductor to 95% of its ASTM rated strength where up to one-third of the aluminum strands are damaged. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Example: A repair sleeve for 795 Drake conductor, the complete catalog number is: RS12 Notes: 1. Installation Instructions for Compression Joints are on page 270. 2. For more information on die selection and ordering instructions, see the AFL Tool Catalog. Quick Compress Repair Sleeve for ACSR Conductor, RS Series AFL NO. CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM RS07 Owl 266.8 6/7 0.633 07CD 0.4 0.17 8.4 213 RS07 Waxwing 266.8 18/1 0.609 07CD 0.4 0.17 8.4 213 RS07 Partridge 266.8 26/7 0.642 07CD 0.4 0.17 8.4 213 RS08 Ostrich 300.0 26/7 0.680 08CD 0.6 0.26 9.6 244 RS08 Merlin 336.4 18/1 0.684 08CD 0.6 0.26 9.6 244 RS08 Linnet 336.4 26/7 0.720 08CD 0.6 0.26 9.6 244 RS09 Oriole 336.4 30/7 0.741 09CD 0.8 0.38 10.8 274 RS08 Chickadee 397.5 18/1 0.743 08CD 0.6 0.26 9.6 244 RS09 Brant 397.5 24/7 0.772 09CD 0.8 0.38 10.8 274 RS09 Ibis 397.5 26/7 0.783 09CD 0.8 0.38 10.8 274 RS10 Lark 397.5 30/7 0.806 10CD 1.1 0.50 12.0 305 RS09 Pelican 477.0 18/1 0.814 09CD 0.8 0.38 10.8 274 RS09 Flicker 477.0 24/7 0.846 09CD 0.8 0.38 10.8 274 RS10 Hawk 477.0 26/7 0.858 10CD 1.1 0.50 12.0 305 RS11 Hen 477.0 30/7 0.883 11CD 1.5 0.68 13.2 335 RS10 Osprey 556.5 18/1 0.879 10CD 1.1 0.50 12.0 305 RS10 Parakeet 556.5 24/7 0.914 10CD 1.1 0.50 12.0 305 RS10 Dove 556.5 26/7 0.927 10CD 1.1 0.50 12.0 305 RS11 Eagle 556.5 30/7 0.953 11CD 1.5 0.68 13.2 335 RS11 Peacock 605.0 24/7 0.953 11CD 1.5 0.68 13.2 335 RS11 Squab 605.0 26/7 0.966 11CD 1.5 0.68 13.2 335 RS12 Teal 605.0 30/19 0.994 12CD 1.9 0.86 14.4 355 RS10 Kingbird 636.0 18/1 0.940 10CD 1.1 0.50 12.0 305 RS11 Rook 636.0 24/7 0.977 11CD 1.5 0.68 13.2 335
© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 176 Quick Compress ® QuickCompress ® – ACSR AFL NO. CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM RS11 Grosbeak 636.0 26/7 0.990 11CD 1.5 0.68 13.2 335 RS12 Egret 636.0 30/19 1.019 12CD 1.9 0.86 14.4 355 RS10 Swift 636.0 36/1 0.930 10CD 1.1 0.50 12.0 305 RS11 Flamingo 666.6 24/7 1.000 11CD 1.5 0.68 13.2 335 RS11 Stilt 715.5 24/7 1.036 11CD 1.5 0.68 13.2 335 RS12 Starling 715.5 26/7 1.051 12CD 1.9 0.86 14.4 355 RS13 Redwing 715.5 30/19 1.081 13CD 2.4 1.09 15.6 396 RS12 Cuckoo 795.0 24/7 1.092 12CD 1.9 0.86 14.4 355 RS12 Drake 795.0 26/7 1.108 12CD 1.9 0.86 14.4 355 RS14 Mallard 795.0 30/19 1.140 14CD 3.1 1.41 16.8 427 RS11 Coot 795.0 36/1 1.040 11CD 1.5 0.68 13.2 335 RS12 Tern 795.0 45/7 1.063 12CD 1.9 0.86 14.4 355 RS12 Condor 795.0 54/7 1.093 12CD 1.9 0.86 14.4 355 RS12 Ruddy 900.0 45/7 1.131 12CD 1.9 0.86 14.4 355 RS13 Canary 900.0 54/7 1.162 13CD 2.4 1.09 15.6 396 RS12 Catbird 954.0 36/1 1.140 12CD 1.9 0.86 14.4 355 RS13 Rail 954.0 45/7 1.165 13CD 2.4 1.09 15.6 396 RS13 Cardinal 954.0 54/7 1.196 13CD 2.4 1.09 15.6 396 RS13 Tanger 1033.5 36/1 1.186 13CD 2.4 1.09 15.6 396 RS13 Ortolan 1033.5 45/7 1.212 13CD 2.4 1.09 15.6 396 RS14 Curlew 1033.5 54/7 1.244 14CD 3.1 1.41 16.8 427 RS14 Bluejay 1113.0 45/7 1.259 14CD 3.1 1.41 16.8 427 RS14 Finch 1113.0 54/19 1.293 14CD 3.1 1.41 16.8 427 RS14 Bunting 1192.5 45/7 1.302 14CD 3.1 1.41 16.8 427 RS15 Grackle 1192.5 54/19 1.333 15CD 3.8 1.72 18.0 457 RS15 Bittern 1272.0 45/7 1.345 15CD 3.8 1.72 18.0 457 RS15 Pheasant 1272.0 54/19 1.382 15CD 3.8 1.72 18.0 457 RS15 Dipper 1351.5 45/7 1.385 15CD 3.8 1.72 18.0 457 RS15 Martin 1351.5 54/19 1.424 15CD 3.8 1.72 18.0 457 RS16 Bobolink 1431.0 45/7 1.427 16CD 4.6 2.09 19.2 488 RS16 Plover 1431.0 54/19 1.465 16CD 4.6 2.09 19.2 488 RS16 Nuthatch 1510.5 45/7 1.466 16CD 4.6 2.09 19.2 488 RS16 Parrot 1510.5 54/19 1.506 16CD 4.6 2.09 19.2 488 RS16 Lapwing 1590.0 45/7 1.504 16CD 4.6 2.09 19.2 488 RS17 Falcon 1590.0 54/19 1.545 17CD 5.5 2.49 20.4 518 RS17 Chukar 1780.0 84/19 1.602 17CD 5.5 2.49 20.4 518 RS18 — 2034.0 72/7 1.681 18CD 6.6 2.99 21.6 549 RS19 Bluebird 2156.0 84/19 1.762 19CD 7.8 3.54 22.8 579 RS19 Kiwi 2167.0 72/7 1.737 19CD 7.8 3.54 22.8 579 RS19 Thrasher 2312.0 76/19 1.802 19CD 7.8 3.54 22.8 579 RS20 Joree 2515.0 76/19 1.880 20CD 9.1 4.13 24.0 610 Quick Compress Repair Sleeve for ACSR Conductor, RS Series (cont.)
Caractéristiques :
- Redonne au conducteur 95 % de sa résistance selon la norme ASTM
Les applications:
- Manchon de réparation par compression pour les conducteurs ACSR
Le manchon de réparation incorpore une conception améliorée d'extrusions s'emboîtant les unes dans les autres, offrant une prise permanente sur le conducteur lorsqu'il est comprimé. Le manchon de réparation permet de restaurer le conducteur à 95 % de sa résistance nominale ASTM lorsque jusqu'à un tiers des brins sont endommagés.
