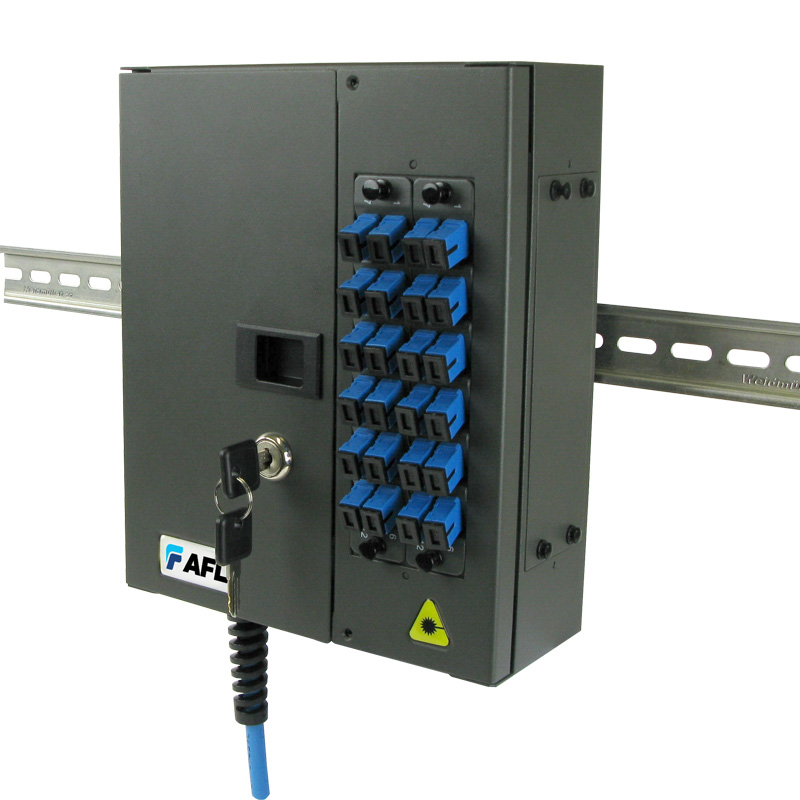

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2020, AFL, all rights reserved. 0 0 6 5 , Revision 2, 0 2.12.20 Speciflcations are subject to change without notice. Modular DIN Rail Mounted Enclosure Features • Modular external apertures to suit AFL flat or angled panels for various connector types and densities • Side panels can accommodate AFL’s Modular MTP cassettes • Lockable splicing compartment for restricted entry • Internal fibre clips for managing incoming cables and fibre pigtails • Top, bottom and LHS cable entry points for ceiling or floor access • Option of front or side patching on RHS with patch plates for both included • Side and rear DIN rail mountable for easy and fast installations Applications • Remote cable locations, e.g. communication rooms, warehouses, campuses, high rise buildings • Industrial automation environments • Multimedia applications using fibre and copper cabling, e.g. mining camps • Data centres and SAN environments requiring MTP or pre-terminated cabling solutions • Suitable for use as a Multi-user Telecommunications Outlet (MUTO) The Modular DIN Rail Mounted Enclosure is specifically designed for applications where space is at a premium. It has all the advantages and functionality of larger enclosures, but with a smaller footprint. Front and side patching makes it suitable for a large range of operating environments. Suitable for fusion splicing or direct termination, it has provisions for splice cassettes, modular adapter panels and AFL’s MTP cassette solution. Technical Specifications Part Number FWE-MOD-12-M-C Description 2 panel compact modular wall enclosure Dimensions (mm) (w) x (d) x (h) 205 x 80 x 250 Weight (kg) 1.9 Maximum modular external panels or MTP cassettes 2 Maximum fibre count 24 ST, SC, FC & 48 LC Maximum incoming cable ports Top – 4 x 20 mm, Bottom – 4 x 20 mm, LHS – 4 x 20 mm Material and colour 1.2 mm mild steel, powder coated grey Accessory kit Standard accessory kit includes: cable management clips, strain relief post, cable ties, velcro strap, 2 DIN rail clips and rubber grommet. FWE-MOD-12-M-C loaded with MTP-LC cassettes FWE-MOD-12-M-C side mounted to DIN rail FWE-MOD-12-M-C loaded with two splice cassettes and pigtails mounted in the termination compartment FWE-MOD-12-M-C rear mounted to DIN rail Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2020, AFL, all rights reserved. 0 0 6 5 , Revision 2, 0 2.12.20 Speciflcations are subject to change without notice. Ordering Information PANELS FRE-BLANK Blank Panel FRE-SC06H-FL1/6 SC/LCD 6P Panel 1-6HP Flat FRE-SC06H-AL1/6 SC/LCD 6P Panel 1-6HP Angle left FRE-SC06H-AR1/6 SC/LCD 6P Panel 1-6HP Angle right FRE-SC12D-FL1/12 SC/LCD 12P Panel 1-12DP Flat FRE-SC12D-FL13/24 SC/LCD 12P Panel 13-24DP Flat FRE-SC12H-AL1/12 SC/LCD 12P Panel 1-12HP Angle left FRE-SC12H-AR1/12 SC/LCD 12P Panel 1-12HP Angle right FRE-SC12V-AL1/12 SC/LCD 12P Panel 1-12VP Angle left FRE-SC12V-AR13/24 SC/LCD 12P Panel 13-24VP Angle right FRE-SCD03H-FL1/6 SC Duplex 3P Panel 1-6HP Flat FRE-SCD03H-AL1/6 SC Duplex 3P Panel 1-6HP Angle left FRE-SCD03H-AR1/6 SC Duplex 3P Panel 1-6HP Angle right FRE-SCD06D-FL1/12 SC Duplex 6P Panel 1-12DP Flat FRE-SCD06H-AL1/12 SC Duplex 6P Panel 1-12HP Angle left FRE-SCD06H-AR1/12 SC Duplex 6P Panel 1-12HP Angle right FRE-ST06H-FL1/6 ST/FC 6P Panel 1-6HP Flat FRE-ST06H-AL1/6 ST/FC 6P Panel 1-6HP Angle left FRE-ST06H-AR1/6 ST/FC 6P Panel 1-6HP Angle right FRE-ST12D-FL1/12 ST/FC 12P Panel 1-12DP Flat FRE-ST12D-FL13/24 ST/FC 12P Panel 13-24DP Flat SPLCASS-SSH-HD-6/12K Splice Cassette Kit with HD Comb for up to 12 Splices SPLCASS-SSH-HD-12/24K Splice Cassette Kit with HD Combs for up to 24 Splices SPLCASS-SSH-HD-18/36K Splice Cassette Kit with HD Combs for up to 36 Splices SPLCASS-SSH-HD-24/48K Splice Cassette Kit with HD Combs for up to 48 Splices Modular DIN Rail Mounted Enclosure Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2020, AFL, all rights reserved. 0 0 6 5 , Revision 2, 0 2.12.20 Speciflcations are subject to change without notice. Modular DIN Rail Mounted Enclosure Full range of additional accessories available including: • Pigtails • Simplex and duplex adapters • MTP flat or angled cassettes • Splicing consumables • Termination consumables These optional accessories can be ordered as a kit with any enclosure. Contact AFL for part numbers.
