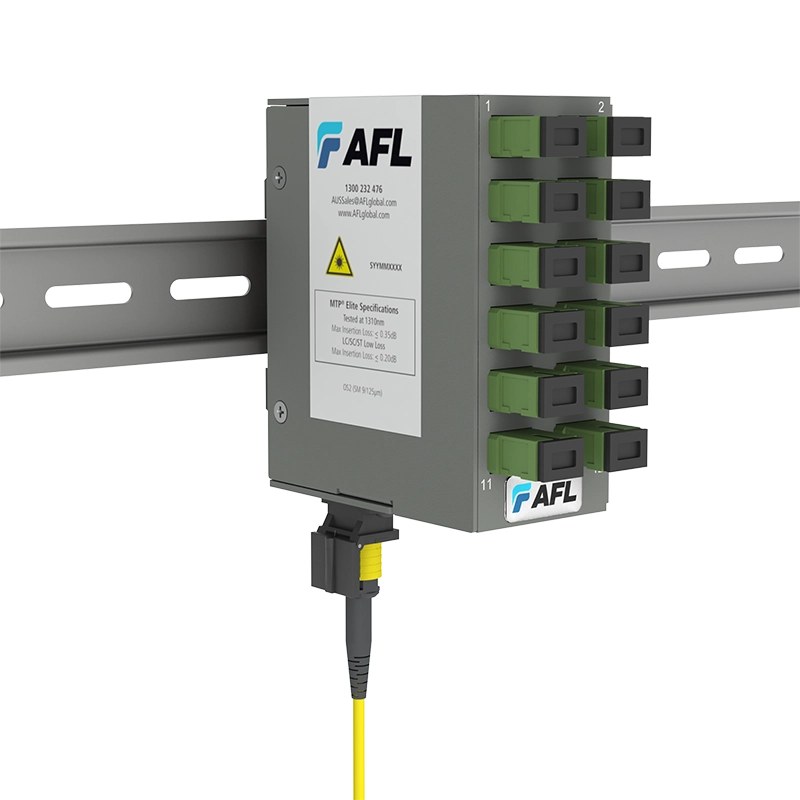

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2024, A FL, all rights reserved. 0 9 7 3 , Revision 9 , 20.11.24 Speci cations are subject to change without notice. IFDX DIN MTP ® Enclosure The IFDX DIN MTP ® enclosure provides an extremely compact yet high fibre density pre-terminated enclosure. Rugged steel casing, shuttered adapters and DIN rail mount makes it perfectly suitable for a range of industrial and infrastructure applications. Specifications Description X-Mini DIN MTP ® Enclosure Dimensions (mm) W x D x H 45 x 100 x 90 (Unloaded) Weight 0.6 kg Front Connector Capacity 12 SC/ST or 24 LC Bottom Connector Capacity Up to 2 x 12F MTP Elite ® with Dust Shutter Material and Colour Powder Coated 1.6 mm Mild Steel (Mercury Grey) & Aluminium DIN Clip Features • Presents 12F SC/ST or 24F LC in extremely compact size • Optional shuttered SC/LCD/MTP ® adapters limit contamination in industrial environments • Integrates seamlessly with existing DIN rail electrical and fibre equipment • Low loss MTP Elite ® , low loss LC connectors and adapters • Fully assembled, video inspected and tested Applications • Expansion of existing termination cabinets where space is at a premium • Multifibre networks in industrial locations • Infrastructure networks including: rail signalling and control networks, infrastructure and road networks. • Power control systems • Intelligent transport systems Fibre Type 1 - Singlemode (G.657.A1) 4 - Multimode (50um OM4) Bottom/MTP ® Interface 112-12F (1x 12F MTP ® Male) 224-24F* (2x 12F MTP ® Male) Front Interface Type LC - LC/UPC/PC LCA - LC/APC SC - SC/UPC/PC SCA - SC/APC ST - ST/UPC/PC (SC/ST Hybrid) Front Interface Colour AQ - Aqua (standard for OM4) BU - Blue (standard for SM UPC) GN - Green (standard for SM APC, SC/ LC only) Shuttered Optional shutter on front adapters (SC and LC Only) Ordering Information IFDX 1 112 LC AQ S Shown with optional shuttered adapters *24F only available in LC MTP is a registered trademark of US Conec Ltd.
