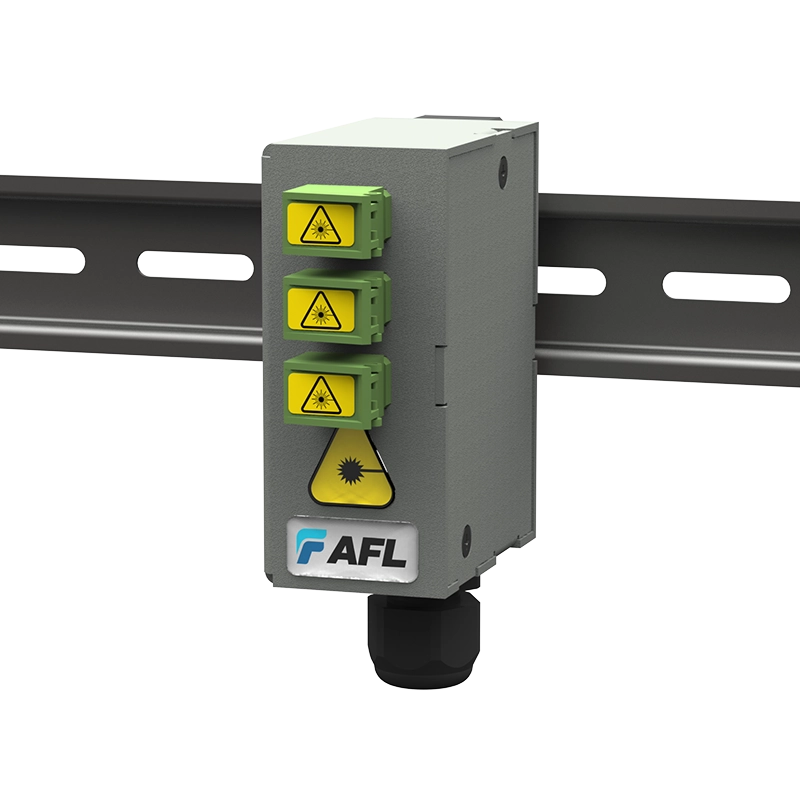

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2024, AFL, all rights reserved. 2298, Revision 1, 27.08.24 Specifications are subject to change without notice. Actual finished product may vary from illustration. Micro DIN Pole-Mount Enclosure The Micro DIN Pole-Mount Enclosure joins AFL’s highly specialised range of DIN solutions. Boasting an ultra compact design, it is ideal for confined applications providing both cable strain relief and demarcation. The enclosure is optimised for pre-terminated fibre assemblies or Field Installable Connectors (FIC’s). They are predominately used inside light / CCTV poles for connecting multiple cameras on a single network. Specifications DESCRIPTION MICRO DIN POLE-MOUNT ENCLOSURE Dimensions (mm) W x D x H (including shuttered adapters) DIN mount: 35 x 67 x 80 Surface mount: 55 x 61 x 80 Weight 0.2 kg Maximum Fibre Count 6F LC / 3F SC Ingress Protection IP30 Incoming Cable Dia. M16 spiral gland (2.7-8 mm) M16 standard gland (5-10 mm) Suitable Cable Types • Axial loose tube • Indoor/Outdoor tight buffered premise • Tactical tight buffered • Stranded loose tube Material and Colour Powder coated aluminium 5052 – Mercury Grey, 304 Stainless Steel fasteners Included Accessories Adaptor/s, blanking plugs, nylon DIN rail mounting clip, surface mount plate, cable strength member anchor, nylon spiral compression gland, nylon compression gland, laser warning triangle Optional Accessories Matching spring-loaded shutter/s, matching Field Installable Connectors (FIC) FASTConnect ® blanking plugs (where applicable) Features • Compact design allowing for mounting in confined spaces • Surface mount and DIN rail clip included • Corrosion resistant aluminium and stainless-steel construction • Suitable for pre-terminated Plug-and-Play or Field Installable Connectors (FIC) Applications • IP security cameras • ‘Smart Pole’ and ‘Smart Lighting’ • Outdoor digital signage / infrastructure, WAP and IoT • Industrial Fibre Count 1 2 2 2 3 4 2 6 Adaptor Type SC SCA LC LCA Interface Colour AQ = Aqua (OM3/4) BE = Beige OM1 BU = Blue SM UPC GN 1 = Green SM APC Shutter (Blank) = No shutters S = Shutters Termination Type P = Patch / Pre-term 3 F = FASTConnect ®4 Fibre Pole Enclosure - Micro FPEM 6 LC BU F S Ordering Information 1 Only available with SCA/LCA 2 Blanking plug/s used to fill unused ports. 3 Recommended breakout length = 300 mm, only suitable for tight buffered pre-terminated assemblies. Aramid yarn should be exposed at the breakout to secure the cable. M16 Spiral gland must be installed before termination (PN:HEY3247) Contact AFL for specific part number. 4 Suitable for 250/900 μm only.
