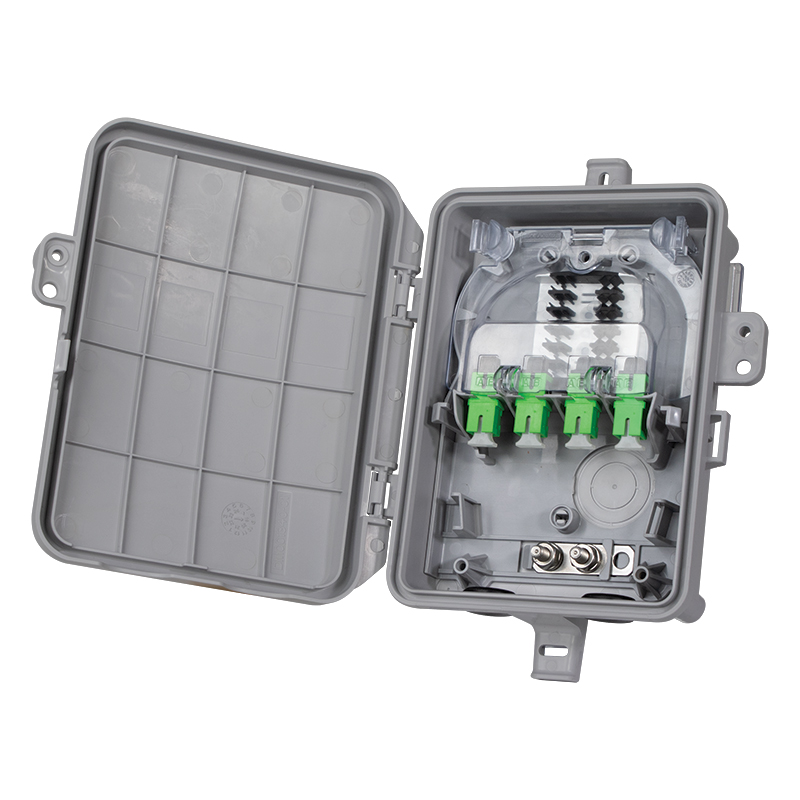

© 2019, AFL, all rights reserved. PP-2-00305, Revision 4, 6.2.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity OptiNID ® Duo Optical Demarcation Enclosure AFL’s OptiNID (OPN) Duo Optical Demarcation Enclosure is the latest entry in the OptiNID fiber optic demarcation family of products. The ultra-compact OPN Duo is designed with flexibility in mind with the capability to house up to 4 SC simplex or LC duplex adapters, along with the ability to house up to 18 single fiber or 6 mass fusion splices. The OPN Duo is also optimized for the use of AFL’s FASTConnect ® or FUSEConnect ® field-installable connectors. The base of the enclosure houses an insert which incorporates fiber routing, splice tray, adapter plate, and cable retention features. The OPN Duo also has several optional features such as a clear splice/security cover for protecting provider-side connectors or a grounding plate for grounding armored or toneable drop cables. The OPN Duo is available with two different base cable entry options, either a pair of U-shaped “drop-in” style grommets, or two half-inch ports allowing for a variety of different entry accessories. Features • Integrated splice tray for up to 18 single fusion splices or 6 mass fusion • Optional clear splice/security cover covers splices, pigtails and provider-side connectors • Snap lock cover with optional 3/8" screw for added security • “U-Grommets” provide easy drop-in cable entry or two half-inch ports for a variety of cable entry options • Integrated mounting points external to the enclosure allow mounting to walls or poles without drilling holes through the box, creating leak paths Shown with four SC/APC adapters, security cover and grounding "U-Grommet" Entry Option 1/2" Hole Entry Option Applications • FTTx – Fiber-to-the-Home (single family, multi-dwelling), Fiber-to-the-Business (multi-tenant) • Wireless – Macro and small cell Specifications PARAMETER VALUES Dimensions – H x W x D 9.6 x 7.0 x 2.7 inches (24.4 x 17.7 x 6.8 cm) Material UL ® listed flame retardant thermoplastic alloy UV Resistance (Days Exposed) 60 per ASTM-G26-84 Flammability UL94-5VA Impact Test -40°F (-40°C), 10 ft-lbs. on all external surfaces Chemical Resistance 30 Days at 100°F and 95% RH Resists chipping and/or cracking when subject to house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide Drop Test -40°F (-40°C), 3 ft. onto concrete surface 4 times Rain 24 hours at 10 psi Temperature Cycling with Humidity 30 day cycling from -40°F to 149°F (-40°C to 65°C) with 95% RH continued © 2019, AFL, all rights reserved. PP-2-00305, Revision 4, 6.2.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Optical Connectivity OptiNID ® Duo Optical Demarcation Enclosure Ordering Information Cover Logo A = Standard AFL logo Contact AFL for custom logo options A O A Base A = Base with two U-Shaped drop-in grommets B = Base with two holes for various entry options X Lockscrew X = No lockscrew (standard) 1 = 3/8" Hex lockscrew OptiNID Duo O = OptiNID Duo A Adapter X = No Adapter A = SC/APC Simplex B = SC/UPC Simplex L = LC/UPC Duplex N = LC/APC Duplex 1 Adapter Quantity 1-4 900 μm Pigtail Kit X = No Pigtail A = SC/APC B = SC/UPC L = LC/UPC N = LC/APC X Grounding Plate X = No Grounding P = 2-Lug Grounding Plate P S Splice Holder X = No Splice Holder S = Splice Holder S Security/Splice Cover X = No Cover S = Security/Splice Cover K = Security/Splice Cover with pin-in-hex security screw Left Entry Port P P A = Heyco compression fitting for 0.095" to 0.29" round cable B = Heyco compression fitting for 0.170" to 0.45" round cable D = PVC conduit fitting for 3/4" conduit G = Rubber grommet K = Heyco compression fitting for 0.26" to 0.545" round cable L = Heyco compression fitting for 2 round cables up to 0.15" M = Heyco compression fitting for flat drop cable N = PVC conduit fitting for 1/2" conduit U = U-shaped grommet for U-shaped grommet base NOTE: Options A-N available with the two-hole entry option only Right Entry Port Ordering Information – Accessories DESCRIPTION AFL NO. OptiNID Duo Splice Module, Pack of 20 AX-TRAY-MOD-20 Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE Telcordia GR-49, GR-2898 Dimensions (in inches) 6.99 2.68 9.61 8.59
