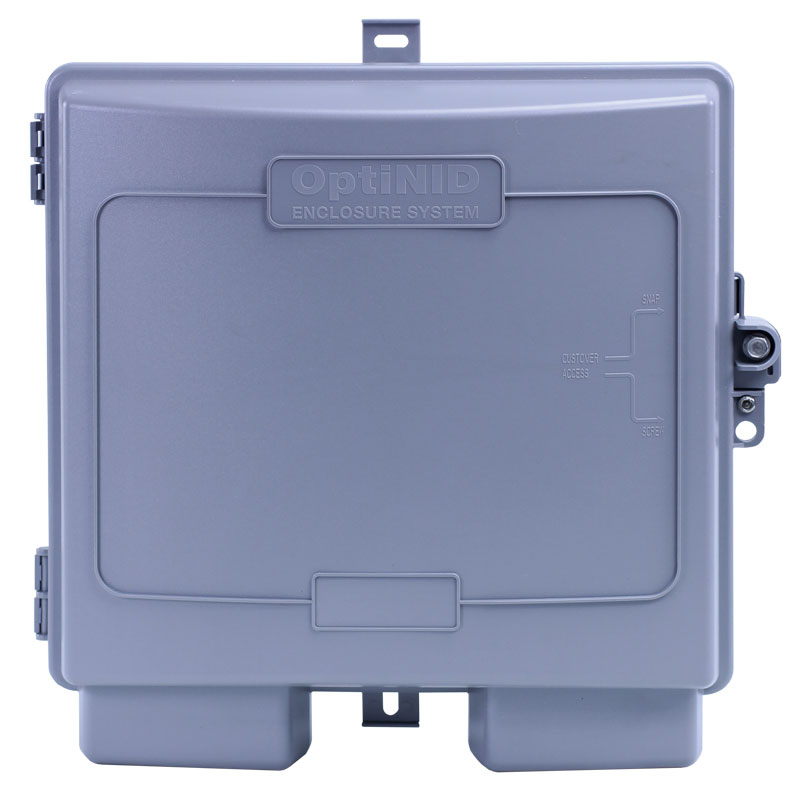

The OptiNID® ONT-760XL is an optical demarcation closure designed for use in either indoor or outdoor environments.
3d141ecab7c14ed38b479dcb85b333f0
© 2011, AFL, all rights reserved. PP-2-00216, Revision 5, 6.3.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity OptiNID ® ONT-760XL Optical Demarcation Closure The OptiNID ONT-760XL is an optical demarcation closure designed for use in either indoor or outdoor environments. ONT-760XL is designed to house many of the ONTs currently available. The ONT-760XL can be either wall or pole-mounted. Specifications PARAMETER VALUES Dielectric Strength Minimum 2500 Vrms for 1 minute High Temperature Storage/Mold Stress 14 days at 159°F (70.55°C) Temperature Cycling with Humidity 150 day cycling from 40-140°F (4.44-60°C) with 95% RH Impact Test -40°F (-40°C), 5 ft-lbs on all external surfaces Drop Test -40°F (-40°C), 5 feet (152.4 cm) onto concrete surface 4 times Rain 24 hours at 10 psi UV Resistance (Days Exposed) 60 per ASTM-G26-84 Salt Fog (Days Exposed) 60 per ASTM-BLL7-90 Flammability UL94-5V Chemical Resistance 30 Days at 100°F and 95% RH Subject to: Resists chipping and/or cracking when subject to: house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide Material U.L. ® listed flame retardant thermoplastic alloy Dimensions (H x W x D) in. (cm) 13 x 13 x 3.75 (32.5 x 32.5 x 9.5) Cable Entrances in. (cm) diameter - Input 4 x 0.875 (2.2) Covers Standard – molded-in snap finger and 3/8" hex head fastener Features • FTTx splice tray holds up to 2 splices • Weather-resistant thermoplastic alloy • Self-latching, hinged cover design allows easy access without loose parts • Self-sealing individual entrance ports prevent water and insects from entering • Provider override is provided so that technician can override customer lock • Location available on front cover for custom logos • Ground wire keeps unit grounded even when open Ordering Information DESCRIPTION MODEL NO. AFL NO. OptiNID ONT-760XL optioned for various ONTs housed in typical clam shell package ONT-760XL-OW FM002843 1 m, 900 μm, SC/APC Pigtail Kit (6/Kit) CS002944-003 ONT-760XL-OW
Features:
- FTTx splice tray holds up to 2 splices
- Weather-resistant thermoplastic alloy
- Self-latching, hinged cover design allows easy access without loose parts
- Self-sealing individual entrance ports prevent water and insects from entering
- Provider override is provided so that technician can override customer lock
- Location available on front cover for custom logos
- Ground wire keeps unit grounded even when open
Applications:
- FTTx, Fiber-to-the-Home
- ONT Demarcation
The OptiNID® ONT-760XL is an optical demarcation closure designed for use in either indoor or outdoor environments. ONT-760XL is designed to house many of the ONT’s currently available. The ONT-760XL can be either wall or pole-mounted.
