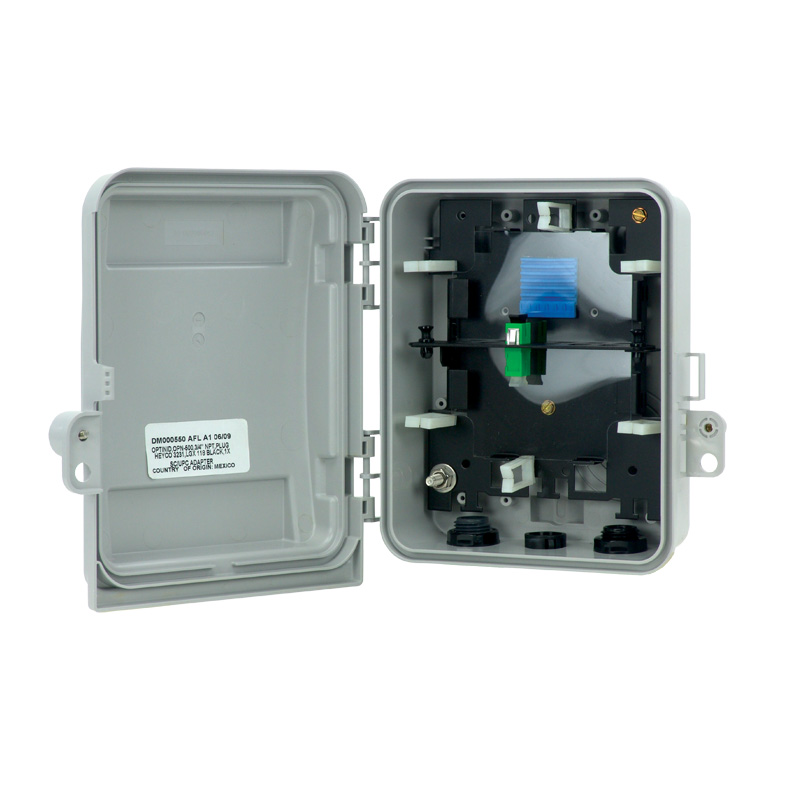

The OptiNID® OPN-500 is an optical demarcation closure designed for use in either indoor or outdoor environments.
3d141ecab7c14ed38b479dcb85b333f0
© 2008, AFL, all rights reserved. PP-2-00160, Revision 7, 4.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity LGX is a registered trademark of Furukawa Electric North America, Inc. OptiNID ® 500 Optical Demarcation Closure The OptiNID (OPN) 500 is an optical demarcation closure designed for use in either indoor or outdoor environments. Small form factor for FTTH demarcation applications, the closure is capable of housing up to six bulkhead adapters in one 118 LGX ® compatible adapter plate, and is equipped with an integrated splice tray, which holds up to six single fusion splices. The OPN-500 can be either wall or pole-mounted. Specifications PARAMETER VALUES Dielectric Strength Minimum 2500 Vrms for 1 minute Impact Test -40°F (-40°C), 5 ft·lbs on all external surfaces Drop Test -40°F (-40°C), 5 ft onto concrete surface four times Rain 24 hours at 10 psi UV Resistance (Days Exposed) 60 per ASTM-G26-84 Salt Fog (Days Exposed) 60 per ASTM-BLL7-90 Flammability UL94-5V Chemical Resistance 30 Days at 100°F and 95% RH Resists chipping and/or cracking when subject to house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide Material UL ® listed flame retardant thermoplastic alloy Dimensions (H x W x D) in. (cm) 6.3 x 7.8 x 2.0 (15.7 x 19.7 x 5.0) Cable Entrance in. (cm) diameter - Input 1 x 3/4” NPT (1.130”), 2 x 1/2” NPT (0.875”) Covers Standard, molded-in snap finger and "F" termination Operating Temperature Range – °F (°C) -40 to 140 (-40 to 60) Features • Weather-resistant thermoplastic alloy • Self-latching, hinged cover design allows easy access without loose parts • Capacity for one 118 LGX compatible adapter plate • Provider override for customer lock • 3/4" NPT conduit fitting, compression cable fittings or grommeted entry ports Ordering Information DESCRIPTION AFL NO. BASE PRODUCT 1,2 OptiNID OPN-500, No Adapters DM001021 OptiNID OPN-500, 1 x SC/UPC Adapter DM000550 OptiNID OPN-500, 1 x SC/APC Adapter DM000766 OptiNID OPN-500, 6 x SC/UPC Adapters DM000871 OptiNID OPN-500, 6 x SC/UPC Adapters, 6 x 1 m 900 μm Pigtails DM001109 ACCESSORIES 3 Heyco M3234 Compression Fitting, 18 mm to 11 mm Grip (includes 4) – Left Port Only DM001171 Kit, Six-Position Splice Chip, (includes 10) DM000870 Notes: 1. All standard OPN-500 configurations come equipped with a ¾” NPT fitting, rubber grommet and Heyco 3231 compression fitting, along with a splice chip for six single fusion splices. 2. Contact AFL customer service for additional configurations. 3. See OptiNID Accessory Page for additional kits.
Features:
- Weather-resistant thermoplastic alloy
- Self-latching, hinged cover design allows easy access without loose parts
- Self-sealing individual entrance ports prevent water and insects from entering
- Capacity for one 118 LGX compatible adapter plate
- Keystone adapter plate available
- Provider override for customer lock
- 1/2" or 3/4" NPT conduit fitting, compression cable fittings or grommeted entry ports
- Locations available on front cover for custom logos
