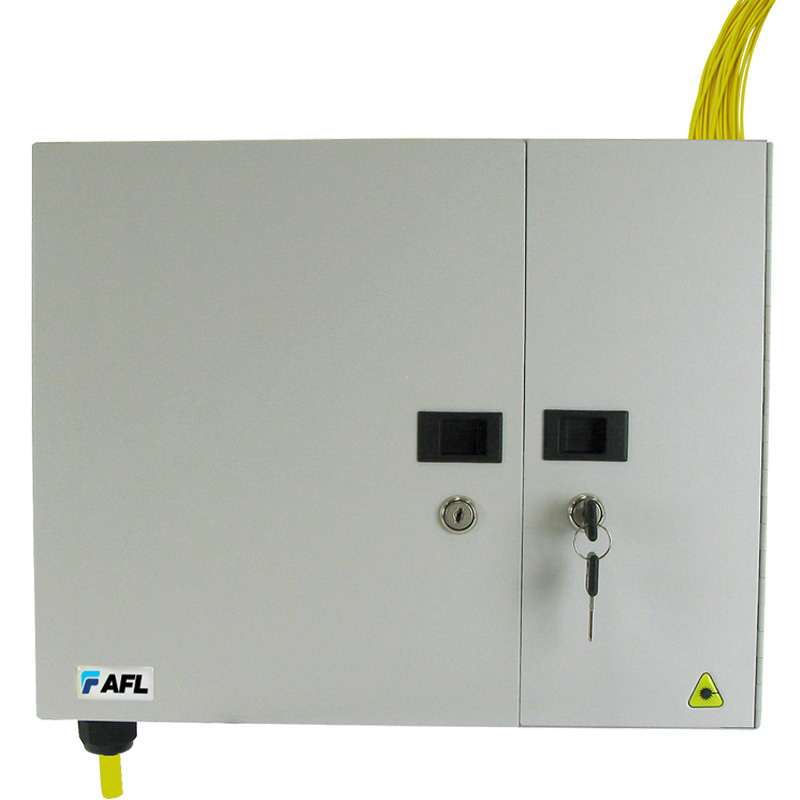

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Passive Devices 1 © 2002-2020, AFL, all rights reserved. 1102, Revision 2, 24.03.20 Speciflcations are subject to change without notice. Applications • PON/POL Installations • Riser/Communications Room Wall Mounted Splitter Enclosures AFL’s range of wall mounted splitter enclosures are the ideal splitter for use in GPON installation where floor space is at a premium. Available in standard split ratios of 1:2 to 1:32, our wall mounted splitter enclosures provide plug and play connectivity for MDU PON/POL installations. Features • Compact size • Plug and Play solution • Internal patching (standard) • Lockable compartments • Top and bottom cable entry Specifications Type 1:2 1:4 1:8 1:16 1:32 Operating Window 1260-1650 nm Insertion Loss * (dB) 4 7 10 13.2 16.5 Fibre Type G657.A1 FWE Enclosure MOD12 MOD24 Dimensions (w x h x d) 310 x 90 x 250 (mm) 410 x 90 x 330 (mm) Colour Office White * Insertion loss excludes connectors Ordering Information PART NUMBER DESCRIPTION FPD-OS112SCA1-W1 1 x 1:2 PLC Splitter 1260-1650 nm SCA, FWE MOD-12 FPD-OS114SCA1-W1 1 x 1:4 PLC Splitter 1260-1650 nm SCA, FWE MOD-12 FPD-OS118SCA1-W1 1 x 1:8 PLC Splitter 1260-1650 nm SCA, FWE MOD-12 FPD-OS1116SCA1-W1 1 x 1:16 PLC Splitter 1260-1650 nm SCA, FWE MOD-12 FPD-OS1132SCA1-W2 1 x 1:32 PLC Splitter 1260-1650 nm SCA, FWE MOD-24 Also available in alternative configurations Associated Products • AFL GPON Solution • Fibre Passive Devices
