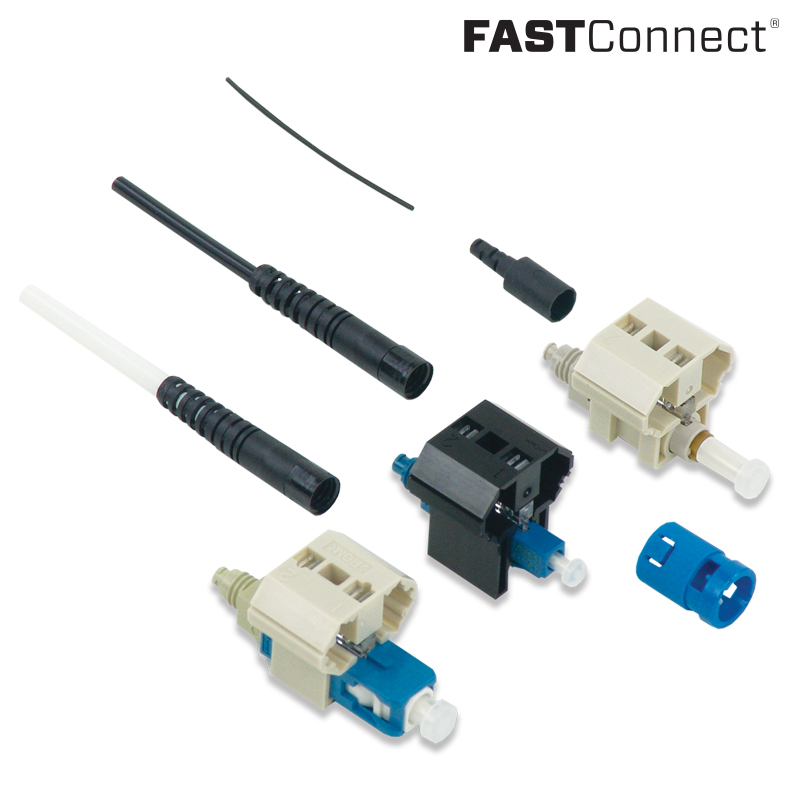

1 AFLglobal.com 1 (800) 235-3423 © 2005 AFL, all rights reserved. PP-2-00052, Revision 22, 9.19.2024 Specifications are subject to change without notice. Optical Connectivity 1 continued FASTConnect ® Field-Installable Connectors FASTConnect are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers. FASTConnect are compatible with 250 μm and 900 μm optical fibers, as well as 4.8 mm (SC only) cordage. All primary fiber types are supported, and each connector is color coded per industry standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved. Features • No epoxy, no Polish • Low insertion loss • Fiber can be reinserted up to three times • 4.8 mm (SC only) cordage compatibility • VFI accessory to confirm proper installation Applications • Premise/Enterprise Networks • LAN/WAN Connections • Patch Panels • Equipment Termination • FTTx Applications • Field Repair/Replacement • Equipment Test Leads Specifications Parameter Type Value Insertion Loss: Single-mode - UPC Single-mode - APC Multimode - PC Average: 0.2 dB, Maximum: 0.5 dB Average: 0.3 dB, Maximum: 0.6 dB Average: 0.1 dB, Maximum: 0.5 dB Return Loss at Room Temperature Single-mode - UPC Single-mode - APC Multimode Average: -50 dB, Maximum: -45 dB Average: -55 dB, Maximum: -50 dB Average: -25 dB, Maximum: -20 dB 2 AFLglobal.com 1 (800) 235-3423 © 2005 AFL, all rights reserved. PP-2-00052, Revision 22, 9.19.2024 Specifications are subject to change without notice. Optical Connectivity 2 Contact AFL for further details. Qualifications Governing Body Standard Code EIA/TIA 568-C.3 604 (FOCIS) Patents Country Patent Number(s) U.S. 5,963,699 5,984,532 6,179,482 7,003,208 7,258,496 Temperature Specifications Temperature Range Operating Temperature -40°C to +75°C FASTConnect ® Field-Installable Connectors Accessories Description AFL No. AFL No. Boot Kits for 2 mm and 3 mm Cordage Color Cable Size Pack of 6 Pack of 100 2 mm Boot Kit, SC/LC/ST Black 2 mm FAST-BOOT-2MM-6 FAST-BOOT-2MM-100 3 mm Boot Kit, SC/LC/ST Black 3 mm FAST-BOOT-3MM-6 FAST-BOOT-3MM-100 Duplex Clips LC Duplex Clip (LC only) Transparent — CS010437-06 CS010437-100 Ordering Information Fiber Type Housing Color Cable Size AFL No. Package of 6 Package of 100 FASTConnect SC Multimode 62.5/125 μm, OM1 Beige 900 μm FAST-SC-MM62.5-6 FAST-SC-MM62.5-100 Multimode 50 μm LOMMF* Aqua 900 μm FAST-SC-MM50L-6 FAST-SC-MM50L-100 Single-mode, UPC Blue 900 μm FAST-SC-SM-6 FAST-SC-SM-100 Single-mode, APC Green 900 μm FAST-SC-SMAU-6 FAST-SC-SMAU-100 Single-mode, APC Green 4.8 mm FAST-SC48-SMAU-6 FAST-SC48-SMAU-100 FASTConnect ST Multimode 62.5/125 μm, OM1 Beige 900 μm FAST-ST-MM62.5-6 FAST-ST-MM62.5-100 Multimode 50 μm LOMMF* Aqua 900 μm FAST-ST-MM50L-6 FAST-ST-MM50L-100 Single-mode, UPC Blue 900 μm FAST-ST-SM-6 FAST-ST-SM-100 FASTConnect LC Multimode 62.5/125 μm, OM1 Beige 900 μm FAST-LC-MM62.5-6 FAST-LC-MM62.5-100 Multimode 50 μm LOMMF* Aqua 900 μm FAST-LC-MM50L-6 FAST-LC-MM50L-100 Single-mode, UPC Blue 900 μm FAST-LC-SM-6 FAST-LC-SM-100 Single-mode, APC Green 900 μm FAST-LC-SMAU-6 FAST-LC-SMAU-100 * Laser Optimised MM Fiber (LOMMF) Compatible with OM2, OM3 and OM4 fibers. Tool Kits AFL N0. FASTConnect High Precision Tool Kit with CT50 Cleaver CS001201 FASTConnect High Precision Tool Kit with CT16 Cleaver CS010975 Visual Fault Identifiers AFL NO. VFI4 visual fault identifier with 2.5 mm and 1.25 mm adapters VFI4-01-0900PR 2.5 mm Universal for VFI port 2900-50-0013MR 1.25 mm Universal for VFI port 2900-50-0012MR
