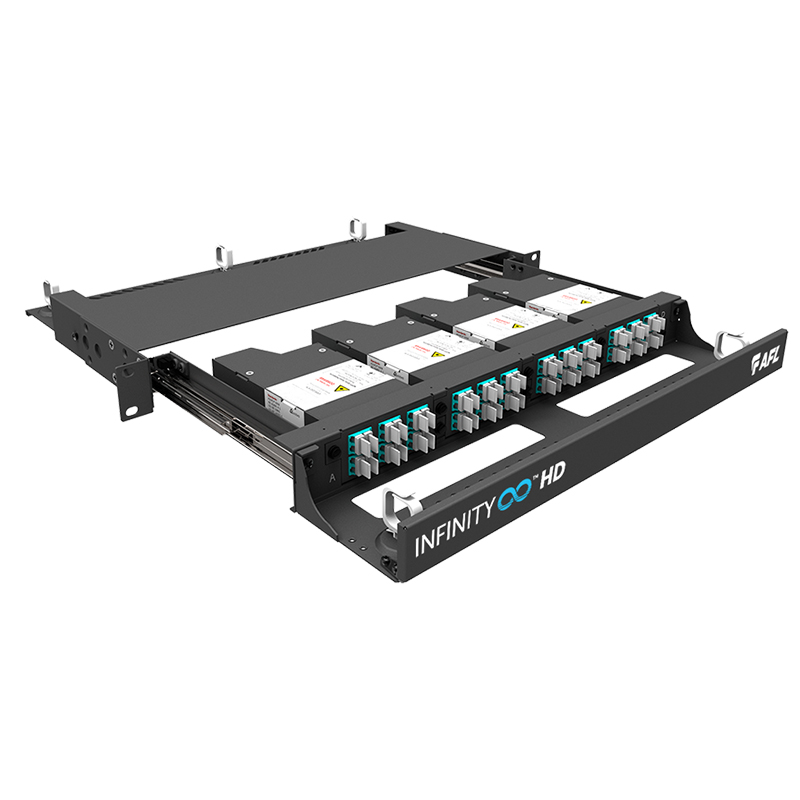

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 1 © 2002-2024, AFL, all rights reserved. 0749, Revision 7, 29.02.24 Specifications are subject to change without notice. Features • High Density of 96F per 1RU (based on MTP-LC) • Range of modules available to suit application • MTP elite connectors used as standard for Low Loss performance • 19” rack mountable enclosures available in fixed or sliding 1RU Applications • Data Centres • Structured Cabling Networks • Storage Area Networks HD MTP ® Range AFL’s HD (High Density) range of MTP enclosures and cassettes offer 96F (48LCD) capacity in 1RU. The 4 cassette design is ideal for Fabric A/Fabric B type networks. Ideally suited for environments requiring a balance between density, labelling and patching access. Enclosures to suit the HD range are available in both sliding and fixed tray designs. These enclosures are suited to racks with a minimum depth of 450 mm. All AFL LC Duplex cassettes feature finger friendly, VFL traceable dust-caps MTP is a registered trademark of US Conec Ltd. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 2 © 2002-2024, AFL, all rights reserved. 0749, Revision 7, 29.02.24 Specifications are subject to change without notice. HD MTP ® Range Cassette Ordering Information Enclosures and Accessories 24 MTPM LCD IFC 4HD Fibre Count 12 - 12 Fibre (SC only) 24 - 24 Fibre (LCD only) Rear Interface MTPM - MM Male MTPMA - SM Male APC MTP2M - MM Male 24F Front Interface LCD - LC Duplex SC - SC Simplex Fibre Type 1 - SM OS2 3 - MM OM3 4 - MM OM4 IFC-24MTPMLCD-4HD OM4 24 Fibre MTPM- LC Duplex HD Cassette IFC-24MTPMALCD-1HD SM 24 Fibre MTPMA- LC Duplex HD Cassette ENCLOSURES FRE-1RU-MOD-HDT 1RU 4 port fixed tray - suits 4 cassettes 200 mm depth FRE-1RU-MOD-HDS 1RU 4 port sliding tray - suits 4 cassettes Includes front hinged cable cover 290 mm depth (390 mm with front mount hinged cover) Cassette Loss Performance (Total LC and MTPE Insertion Loss) OPTIONS SM OS2 (@1310 nm ) MM OM3/4 (@850 nm ) Average Insertion Loss 0.25 dB 0.20 dB Maximum Insertion Loss 0.60 dB 0.55 dB Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 3 © 2002-2024, AFL, all rights reserved. 0749, Revision 7, 29.02.24 Specifications are subject to change without notice. HD MTP ® Range ACCESSORIES FRE-MTP04HD-FL-4AQ 4 Port MTP adapter panel – Aqua adapters FRE-MTP04HD-FL-4BK 4 Port MTP adapter panel – Black adapters FRE-LCD12-AQ-HD 12 Port 24 fibre LC Duplex adapter panel – Aqua adapters FRE-LCD12-BU-HD 12 Port 24 fibre LC Duplex adapter panel – Blue adapters FRE-KMJ-FL1/6-HD6 6 Port Keystone RJ45 panel (unshielded) FRE-BLANK-HD Blanking panel for unused ports FRE-1RU-CTRAY-HG Hinged front mount cable cover – to suit ‘MOD-HDT’ style trays
