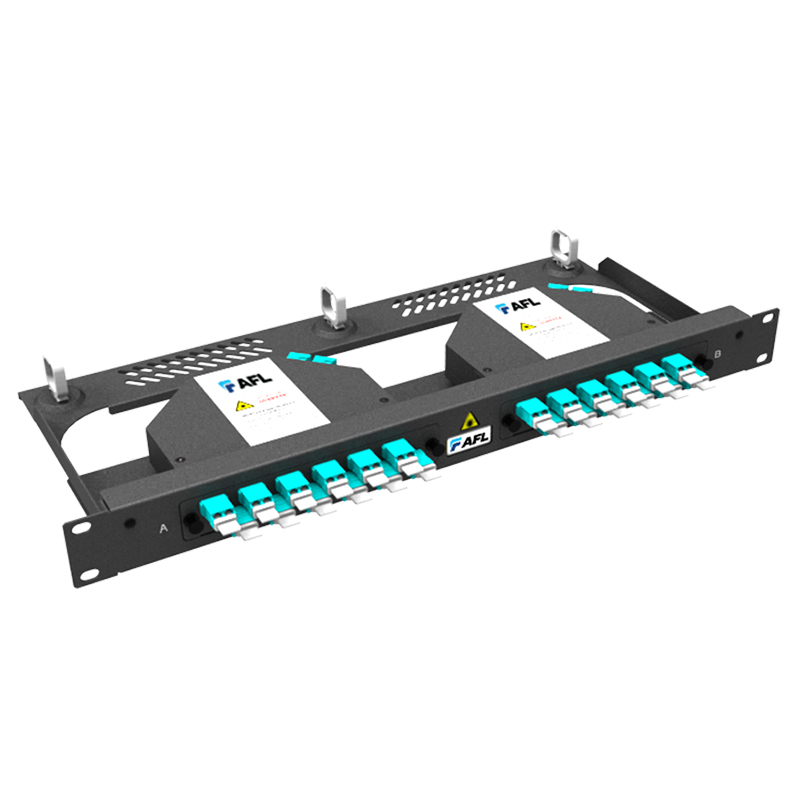

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 1 © 2002-2020, AFL, all rights reserved. 0726, Revision 2, 09.11.20 Specifications are subject to change without notice. Features • Density of 48F per 1RU (based on MTP-LC) • Range of modules available to suit application • MTP elite connectors used as standard for Low Loss performance • 19” rack mountable enclosures available in 1RU, 2RU and 3RU Applications • Data Centres • Structured Cabling Networks • Storage Area Networks SD MTP ® Range AFL’s SD (Standard Density) range of MTP enclosures and cassettes offer an ideal balance of density and accessibility. Ideally suited for environments requiring increased space for labelling and patching access. Modular tray (MOD-T) enclosures to suit the SD range are a fixed tray style and offer an easy open access, shallow depth design. Suited to racks with a minimum depth of 450 mm or back to back applications in deeper racks. The MOD-T enclosure also features a removable rear mounting cable management bar. An optional front mount hinged cable tray can be fitted to the MOD-T enclosure. All AFL LC Duplex cassettes feature finger friendly, VFL traceable dust-caps AFL's SD MTP Cassettes also suit a variety of FWE Wall Enclosures, allowing for high density patching and cross connect in a wider range of applications. MTP is a registered trademark of US Conec Ltd. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 2 © 2002-2020, AFL, all rights reserved. 0726, Revision 2, 09.11.20 Specifications are subject to change without notice. SD MTP ® Range Cassette Ordering Information Cassette Loss Performance (Total LC and MTPE Insertion Loss) Enclosures and Accessories 24 MTPM LCD AL IFC 4 Fibre Count 12 - 12 Fibre 24 - 24 Fibre (LCD only) Rear Interface MTPM - MM Male MTPMA - SM Male APC Front Interface LCD - LC Duplex SC - SC Simplex Cassette Style (leave blank for flat) AL - Angled Left AL - Angled Right Fibre Type 1 - SM OS2 3 - MM OM3 4 - MM OM4 IFC-24MTPMLCD-4 OM4 24 Fibre MTPM- LC Duplex SD Cassette IFC-24MTPMLCDAL-4 OM4 24 Fibre MTPM- LC Duplex SD Angled Left Cassette ENCLOSURES FRE-1RU-MOD-T 1RU 2 port fixed tray - suits 2 cassettes ACCESSORIES FRE-MTP06H-FL 1/6-6AQ/BK 6 port MTP adapter panel - aqua or black adapters FRE-SC12D-FL1/12-xx 12 port 24 fibre LC Duplex adapter panel - aqua or blue adapters FRE-BLANK Blanking panel for unused ports FRE-1RU-CTRAY-HG Hinged front mount cable cover - to suit 'MOD-T' style trays OPTIONS SM OS2 (@1310 nm ) MM OM3/4 (@850 nm ) Average Insertion Loss 0.25 dB 0.20 dB Maximum Insertion Loss 0.60 dB 0.55 dB
