AFL's XHD MPO/MTP® modular patch and splice solution, for BASE-8, BASE-12 or BASE-24 networks and densities up to 144F.
34515a8a83e84e5bb150dbbe43945288

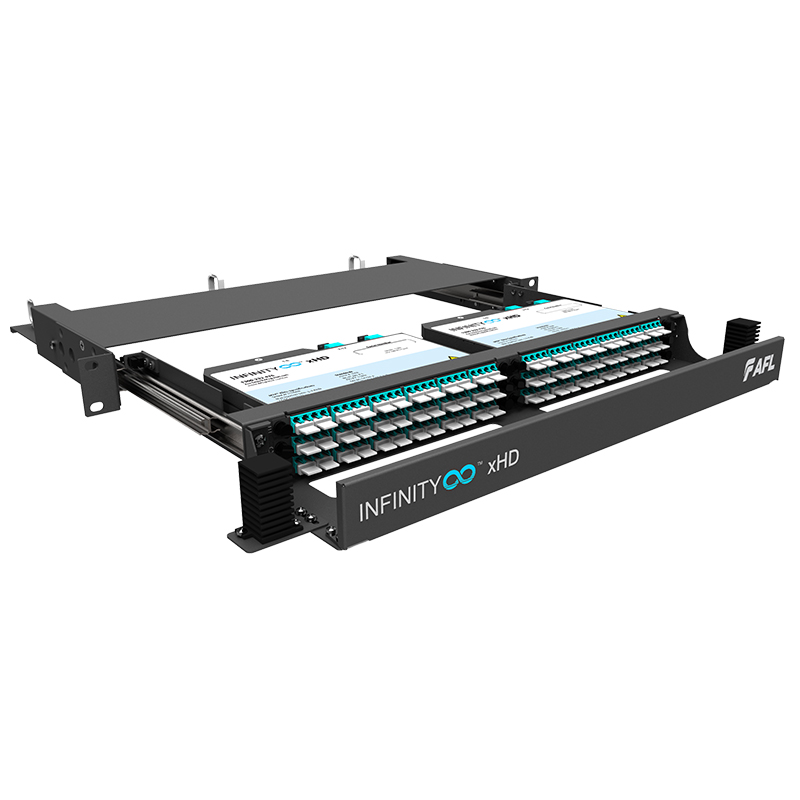

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 1 © 2002-2025, AFL, all rights reserved. 0755, Revision 17, 01.12.25 Specifications are subject to change without notice. Features • Extra High Density of 144F per 1RU (based on MTP-LC) • Range of BASE-24 modules available to suit application • MTP elite connectors used as standard for Low Loss performance • 19” rack mountable enclosures available in fixed or sliding 1RU Applications • Data Centres • Structured Cabling Networks • Storage Area Networks XHD MTP ® Range AFL’s XHD (Extra High Density) range of MTP enclosures and cassettes offer 144F capacity in 1RU. Enclosures to suit the XHD range are available in both sliding and fixed tray designs. The XHD range offers excellent high density finger access and patching accessibility. All enclosures feature a removable rear mounting cable management bar. Hinged cable trays are supplied as standard with all sliding XHD enclosures and optional on the XHDT enclosure All AFL LC Duplex cassettes feature finger friendly, VFL traceable dust-caps LC uniboot patch leads allow maximum access to the patching environment. MTP is a registered trademark of US Conec Ltd.
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 2 © 2002-2025, AFL, all rights reserved. 0755, Revision 17, 01.12.25 Specifications are subject to change without notice. XHD MTP ® Range Cassette Ordering Information Cassette Loss Performance (Total LC and MTPE Insertion Loss) Enclosures and Accessories IFC-24MTPMLCQ-4XHD OM4 24 Fibre MTPM- LC Quad XHD Cassette IFC-24MTPMALCQ-1XHD SM 24 Fibre MTPMA- LC Quad XHD Cassette IFC-24MTP2MLCQ-4XHD OM4 24 Fibre MTPM- LC Quad XHD Cassette ENCLOSURES FRE-1RU-MOD-XHDT 1RU 6 aperture fixed tray with removable rear cable looming bar. 200mm depth FRE-1RU-MOD-XHDFS 1RU 6 aperture flat front tray with hinged front cover and removable rear cable looming bar and cover. 290mm depth (390mm with front mount hinged cover) 4X 6F CASSETTES XHD-1-424-LCBU SM 24F (4x 6F) MTPMA-LC Quad XHD Cassette XHD-4-424-LCAQ OM4 24F (4x 6F) MTPM-LC Quad XHD Cassette OPTIONS SM OS2 (@1310 nm ) MM OM3/4 (@850 nm ) Average Insertion Loss 0.25 dB 0.20 dB Maximum Insertion Loss 0.60 dB 0.55 dB Series: IFC = Infinity Fibre Cassette Adapter Type (Front Interface): LCQ = LC Quad Fibre Type: 1 = SM, Single-mode 4 = OM4, Multimode Platform: XHD = XHD Platform Cassette Fibre Count: 24 = 24F 12 = 12F MTP Connector Type (Rear Interface) : MTPM = MTP Male (BASE-12, 12-Fibre MT ferrules) 1 MTPMA = MTP Male Angled (BASE-12, 12-Fibre MT ferrules) 2 MTP2M = MTP Male (BASE-24, 24-Fibre MT ferrule) 1 MTP2MA = MTP Male Angled (BASE-24, 24-Fibre MT ferrule) 2 IFC 24 MTPM LCQ XHD 4 Notes: 1.'MTPM' and 'MTP2M', MM only. 2.'MTPMA' and 'MTP2MA, SM only.
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 3 © 2002-2025, AFL, all rights reserved. 0755, Revision 17, 01.12.25 Specifications are subject to change without notice. XHD MTP ® Range Enclosures and Accessories ACCESSORIES IFC-MTP08XHD-FL-BK 8 port MTP adapter panel, black adapters IFC-MTP08XHD-FL-AQ 8 port MTP adapter panel, aqua adapters FRE-BLANK-XHD Blanking panel for unused ports FRE-1RU-CTRAY-HG Hinged front mount cable tray - to suit 1RU 'MOD-XHDT' style frames 430mm width x 100mm depth FRE-CTRAY-1-CLP Patch cord retention clip and bracket kit, for 1RU cable tray (Set of 2) Compatible with: • Front cable tray on 'FRE-1RU-MOD-XHDFS' • 'FRE-1RU-CTRAY-HG' on 1RU 'MOD-XHDT' style frames FRE-CTRAY-1-PBL/R-K Patch cord retention block and bracket kit, for 1RU cable tray (Set of 2) Compatible with: • Front cable tray on 'FRE-1RU-MOD-XHDFS' • 'FRE-1RU-CTRAY-HG' on 1RU 'MOD-XHDT' style frames
Features:
- Extra High Density of 144F per 1RU (based on MTP-LC)
- Range of BASE-24 modules available to suit application
- MTP elite connectors used as standard for Low Loss performance
- 19” rack mountable enclosures available in fixed or sliding 1RU
Applications:
- Data Centres
- Structured Cabling Networks
- Storage Area Networks
AFL’s XHD range of enclosures and cassettes offer up to 144F capacity in 1RU for both MTP/LC patching and LC splicing. Available in sliding and fixed tray variants, both offer excellent ergonomics and rear cable management. Patch lead management can be improved with an optional front mounted cable tray (standard on sliding enclosure).
ASCEND Fiber Housings,ASCEND Fanout Cassettes,ASCEND Splice Cassettes,ASCEND Patch Cassettes,ASCEND Conversion Cassettes,ASCEND Tap Cassettes,ASCEND Trunk Cable Assemblies,ASCEND Patch Cord Assemblies,ASCEND Optical Cassettes,ASCEND Outback Clip Management OCM Bracket,MTP® Indoor Cable Assemblies,MXHD Range,MTP Outdoor Cable Assemblies,HD MTP Range,SD MTP Range
2103
XHD Range
Close
XHD Range
Features:
- Extra High Density of 144F per 1RU (based on MTP-LC)
- Range of BASE-24 modules available to suit application
- MTP elite connectors used as standard for Low Loss performance
- 19” rack mountable enclosures available in fixed or sliding 1RU
Applications:
- Data Centres
- Structured Cabling Networks
- Storage Area Networks
PRODUCT DESCRIPTION
AFL’s XHD range of enclosures and cassettes offer up to 144F capacity in 1RU for both MTP/LC patching and LC splicing. Available in sliding and fixed tray variants, both offer excellent ergonomics and rear cable management. Patch lead management can be improved with an optional front mounted cable tray (standard on sliding enclosure).
