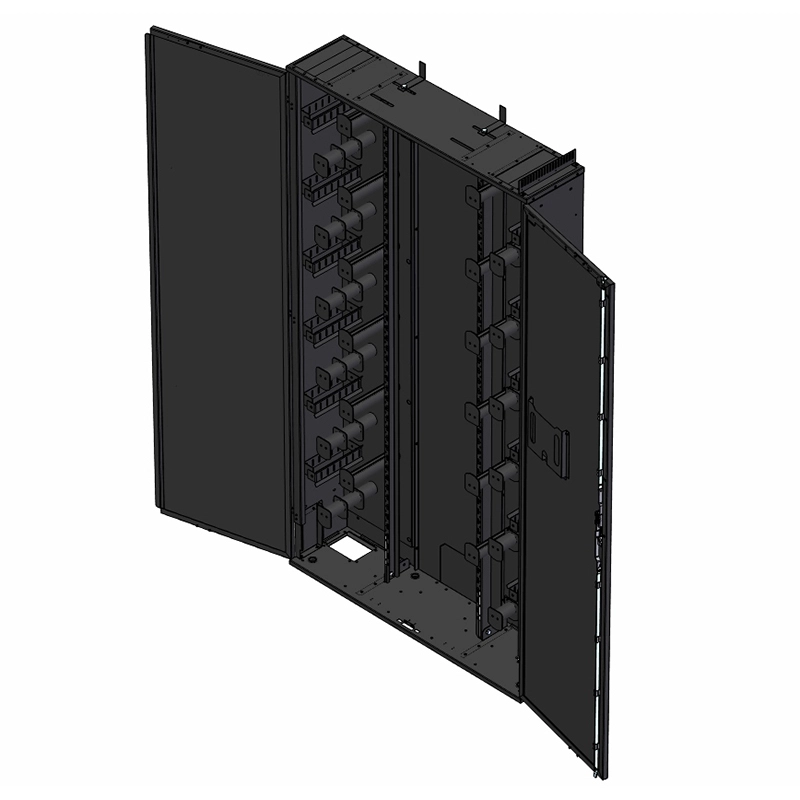

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2022, AFL, all rights reserved. 1920, Revision 01, 25.07.22 Specifications are subject to change without notice. The AFL Optical Fibre Distribution Frame (OFDF) is a high density, multi-purpose frame optimised to house the AFL HDXII range of 7RU chassis’/panels to terminate and distribute high core count SpiderWeb Ribbon ® (SWR) Wrapping Tube or MicroCore ® Cables. Technical Specifications Description Optical Fibre Distribution Frame (OFDF) with doors (1200 mm wide) Dimensions W x H x D (mm) NET/GROSS PACKAGED FOR EXPORT 1200 mm (W) x 2200 mm (H) x 320 mm (D) 1340 mm (D) x 2340 mm (W) x 550 mm (H) Weight (kg) 160/195 305 Installation Wall mount, back to back, side to side installation Capacity Splicing 10,368 (MPO FUSEConnect ® )/ 3,456 (LCD, single element or SWR) Patching 3,456 (LCD Uniboot 2.0 mm patch cords)/ 1728 (LCD zip duplex 2.0 mm patch cords) 7RU HDXII Chassis 6 x 7RU chassis to suit 24 x 24F LCD cassettes or 12 x 144F MPO cassettes (cannot be mixed within frame) SWR ® Wrapping Tube Cable (WTC) compatibility 864F/1728F/3456F/6912F in any combination (Max. 10,346F capacity) *Cable breakouts and mounting panel sold separately Features • High density solution for shallow depth, front access only installation environments • Fibre management optimised for 19”, 280 mm deep x 7RU high AFL HDXII chassis range • Ample fibre cord entry/exit paths at top off frame • Solid 2-point locking doors, easily upgradeable to electronic locking insitu • Value added breakout kits to reduce installation time • Standalone frame suitable for 3456F LC distribution, add SWR ® WTC splicing capability components if required. Applications • Lead-in Cabinet (LIC) for Dark Fibre cross-connection • Co-Lo floor cross-connection • Termination and management of large fibre count SWR ® WTC Splicing • MPO/APC: Up to 10,368 fibres using SWR ® WTC and FUSEConnect ® Splice-On Connectors • LC/UPC: Up to 3,456 fibres using MicroCore ® internal riser cables. Patching • MPO/LC-UPC: 24F cassettes, 24 per 7RU up to 3456F Optical Fibre Distribution Frame (OFDF) *Typical installation shown above, fitted with optional accessories Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2022, AFL, all rights reserved. 1920, Revision 01, 25.07.22 Specifications are subject to change without notice. Technical Specifications Features Wall mount, back to back, side to side installation 45RU, 19” MID/REAR mount rails (optimised for 7RU HDXII Chassis) Top LH and RH cable entry/exit with brush strips for dust ingress protection 300 mm wide L&R Vertical over-length fibre management area (optimised for 7RU HDXII) Partitioned fibre management spools/bobbins (12 per side) Removable vertical cable rings for fibre cord routing (6 per side) Removable lower side entry port covers for intra-suite patching. Large capacity lower cable raceway/ducting for inter-suite patching (optional) 600 mm wide doors with 2-point locking Swing handle with removable DIN Euro lock barrel Electronic locking compatible* with integrated cable routing and sensor mounting points Lift-off doors with ‘Push to close’ captive door latches (L&R) Document pocket *Designed to suit CRS solenoid mechanism Accessories Pair mount brackets, Preterm. Cable tie-off bracket and fasteners, side to side & back to back baying hardware Capacity DESCRIPTION PART NUMBER WHERE USED OFDF Vertical breakout panel mount kit (6 x 7RU HDXII) AFL-OFDF-B/OUT-BK/PL Required one per frame for SWR ® WTC splicing 864F SWR ® WTC breakout kit, 1 x 864F (STAGE1) 1 x 864F (STAGE2) AFL-OFDF-864/864-BO-KIT Required to breakout one 864F SWR ® WTC (Populate 1st half of 12 lot 7RU chassis) OFDF SWR ® WTC breakout kit, 1 x 864F (STAGE 2) /6 x 10mm tube) AFL-OFDF-BOKIT-06TUBE Required to breakout one 864F SWR ® WTC (Populate 2nd half of 12 slot 7RU chassis) 1728F SWR ® WTC breakout kit, 1 x 1728F (STAGE1) 1 x 1728F (STAGE2) AFL-OFDF-1728/1728-BO-KIT Required to breakout one 1728F SWR ® WTC (Populate complete 12 slot 7RU chassis) 3456F SWR ® WTC breakout kit, 2 x 1728F (STAGE1) 1 x 1728F (STAGE2) AFL-OFDF-3456/1728-BO-KIT Required to breakout one 3456F SWR ® WTC and one of two 1728F bundles 6912F SWR ® WTC breakout kit, 4 x 1728F (STAGE1) 1 x 1728F (STAGE2) AFL-OFDF-6912/1728-BO-KIT Required to breakout one 692F SWR ® WTC and one of four 1728F bundles OFDF SWR ® WTC breakout kit (1 x 1728F STAGE 2/ 12 x 10mm tube) AFL-OFDF-BOKIT-12TUBE Required to breakout one remaining 1728F bundle of either 3456F or 6912F Patch Management Options OFDF 3RU Lower duct kit (1200mm wide) AFL-OFDF-1200-LWRDUCT-3RU For side to side, back to back inter-rack cross patching OFDF Pre-terminated cable tie-off bracket, 18 x 14 mm (pack of 2) AFL-OFDF-BRKT-18X14-2KIT Up to 6 can be fitted to top of frame (3 per side) for additional pre-term. Cable mounting HDXII Chassis Options HDX 7RU chassis (0.75RU/1.25RU), 12 x 144F MPO cassettes, 144 x FUSEConnect ® Splice-On Connectors HDX-7RU-1728MPOKIT Includes 7RU panel, cassettes and SM 12F Splice-On Connectors to terminate 1728F bundle of SWR ® WTC (Additional 144F cassettes and FUSEConnect ® sold separately) HDX 7RU chassis (0.75RU/1.25RU), 6 x 144F MPO cassettes, 72 & FUSEConnect ® Splice-On Connectors HDX-7RU-864MPOKIT Includes 7RU panel, cassettes and SM 12F Splice-On Connectors to terminate each 864F SWR ® WTC (Additional 144F cassettes and FUSEConnect ® sold separately) HDX 7RU Chassis (0.75RU/1.25RU) 12 Slot Unloaded HDX-7RU-MOD12 7RU chassis configured to suit up to 12 x dual slot cassettes HDX 7RU Chassis (0.75RU/1.25RU) 24 Slot Unloaded HDX-7RU-MOD24 7RU chassis configured to suit up to 24 x single slot cassettes Splice Cassettes 144F MPO Ribbon Splicing HDX Loaded Cassette (FUSEConnect ® not included) HDX144FPASSCASS Max. 12 per 7RU Chassis (dual slot) 144F Ribbon Splicing pass-through cassette; 2 x 10mm (NO FIBRE) HDX144F2GLANDSPLCASS Max. 12 per 7RU Chassis (dual slot). Ribbon splice protectors sold separately (PN: SPLPROT-HS-RIB12-40-F) 24F LC Ribbon Splicing HDX Loaded Cassette (G.657.A1)) HDX24FLCSPLSMCASSRIB 2 x 12F ribbon single slot (Single Mode) 24F LC Ribbon Splicing HDX Loaded Cassette (OM4) HDX24FLCSPLMMCASSRIB 2 x 12F ribbon single slot (Multimode) Patch Cassettes 24F MPO-LC Patching HDX Loaded Cassette (G657.A1) HDX24FMPOLCSMCASS 2 x 12F MPO to LCD fanout (Single Mode) 24F MPO-LCA Patching HDX Loaded Cassette (G657.A1) HDX24FMPOLCASMCASS 24F MPO-LC Patching HDX Loaded Cassette (OM4) HDX24FMPOLCMMCASS 2 x 12F ribbon single slot (Multimode) Cassette Accessories HDX Cassette Blanking panel (single width) HDXBLANK Required to blank a single slot (Max. 24 per 7RU chassis) MPO FUSEConnect ® Splice-On Connectors (APC) (Pack of 6) FUSEMPO-S-SKA-3-M-6 2 x 6 pack required per 144F cassette Optical Fibre Distribution Frame (OFDF) Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2022, AFL, all rights reserved. 1920, Revision 01, 25.07.22 Specifications are subject to change without notice. Ordering Information PART NUMBER DESCRIPTION AFL-OFDF-FRAME-HDXII Optical Fibre Distribution Frame (OFDF) with doors (1200 mm wide) Optical Fibre Distribution Frame (OFDF) 1200 300 300 Shown with OFDF 3RU Lower duct kit 215 270 Note: All dimensions shown in mm 1195 92 120 200 114 162 Max. 2200 2270
