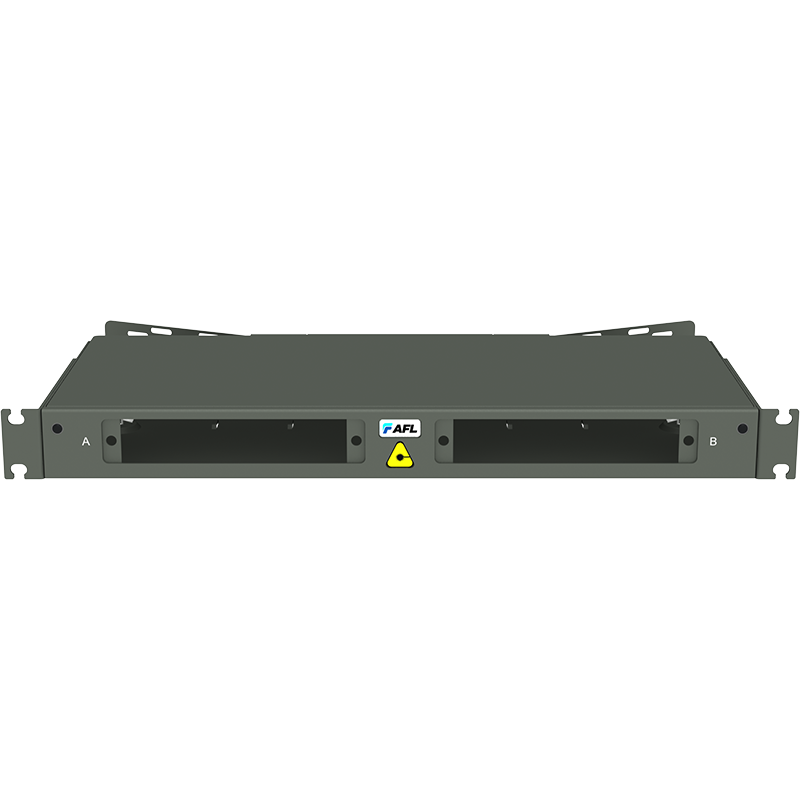

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2020, AFL, all rights reserved. 0174, Revision 3, 01.12.20 Specifications are subject to change without notice. FRE Fibre Optic Rack Enclosure – Wingback AFL’s range of 'Wingback' rack mount enclosures are proudly designed and assembled in Australia. This range of enclosures are especially suited for the patching, housing and direct termination of 6 to 288 fibres. The Wingback enclosure has been specifically designed for the management of MTP or pre-terminated (trunk) cable systems. They are ideally suited for a Data Centre or SAN environment, or any environment requiring quick and efficient connect and disconnects. Features • Modular front design to suit flat or angled panels for various connector types and densities • Unique angled left and right rear cable entry for easy cable access and fixing, no glands required • Printed markings on the front apertures for fibre identification • Removable lid for easy installation and access • 3 position adjustable side brackets for various mounting options within 19” rails • Comprehensive accessory kit for rack-mounting, cable entry and fibre management included Applications • High density requirements • Direct termination of tight buffer cables • Pre-terminated loose tube or riser cables • Data centres and SAN environments requiring MTP or pre-terminated cabling solutions Technical Specifications PART NUMBER FRE-1RU-MOD-WB FRE-2RU-MOD-WB FRE-3RU-MOD-WB FRE-3RU-MOD-WB-V Description 1RU 2 panel modular wingback fixed enclosure 2RU 4 panel modular wingback fixed enclosure 3RU 8 panel modular wingback fixed enclosure 3RU 12 panel modular wingback fixed enclosure Dimensions (mm) (w) x (d) x (h) 434 x 250 x 44 434 x 250 x 88 434 x 250 x 132 434 x 250 x 132 Weight (kg) 2.6 3.4 4.2 4.2 Max modular front panels or MTP cassettes (not inc – V) 2 horizontal 4 horizontal 8 1 horizontal 12 vertical Max fibre count 24 ST, SC, FC & 48 LC 48 ST, SC, FC & 96 LC 96 ST, SC, FC & 192 LC 144 SC & 288 LC Max recommended incoming cables 4 each side 8 each side 12 each side 12 each side Material and colour Powder coated 1.6 mm mild steel – Charcoal grey Accessory kit Standard accessory kit includes: cable management clips, strain relief post, cable ties, fixing bolts and nuts, Velcro strap and connection record sheet 1. This enclosure can hold up to 4 half size blank panels (FRE-BLANK-SML), in order to evenly space 6 standard adaptor panels Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2020, AFL, all rights reserved. 0174, Revision 3, 01.12.20 Specifications are subject to change without notice. FRE Fibre Optic Rack Enclosure – Wingback Accessories PANELS FRE-BLANK Blank Panel FRE-BLANK-SML Blank Panel 1/2 Size (8 Panel 3RU only) FRE-SC06H-FL1/6 SC/LCD 6P Panel 1-6HP Flat FRE-SC06H-AL1/6 SC/LCD 6P Panel 1-6HP Angle left FRE-SC06H-AR1/6 SC/LCD 6P Panel 1-6HP Angle right FRE-SC12D-FL1/12 SC/LCD 12P Panel 1-12DP Flat FRE-SC12D-FL13/24 SC/LCD 12P Panel 13-24DP Flat FRE-SC12H-AL1/12 SC/LCD 12P Panel 1-12HP Angle left FRE-SC12H-AR1/12 SC/LCD 12P Panel 1-12HP Angle right FRE-SC12V-AL1/12 SC/LCD 12P Panel 1-12VP Angle left FRE-SC12V-AR13/24 SC/LCD 12P Panel 13-24VP Angle right FRE-SCD03H-FL1/6 SC Duplex 3P Panel 1-6HP Flat FRE-SCD03H-AL1/6 SC Duplex 3P Panel 1-6HP Angle left FRE-SCD03H-AR1/6 SC Duplex 3P Panel 1-6HP Angle right FRE-SCD06D-FL1/12 SC Duplex 6P Panel 1-12DP Flat FRE-SCD06H-AL1/12 SC Duplex 6P Panel 1-12HP Angle left FRE-SCD06H-AR1/12 SC Duplex 6P Panel 1-12HP Angle right FRE-ST06H-FL1/6 ST/FC 6P Panel 1-6HP Flat FRE-ST06H-AL1/6 ST/FC 6P Panel 1-6HP Angle left FRE-ST06H-AR1/6 ST/FC 6P Panel 1-6HP Angle right FRE-ST12D-FL1/12 ST/FC 12P Panel 1-12DP Flat FRE-ST12D-FL13/24 ST/FC 12P Panel 13-24DP Flat These panels suit the MOD-12 faceplate on 3RU Enclosures. All adaptor panels are angled and can be used in the left or right hand side of the front panel. FRE-SCD06V-AU 6 Port SC Duplex Vertical Angled FRE-SC12V-AU 12 Port SC/LCD Vertical Angled FRE-SC06V-AU 6 Port SC/LCD Vertical Angled FRE-BLANK-V Vertical Blank Panel Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2020, AFL, all rights reserved. 0174, Revision 3, 01.12.20 Specifications are subject to change without notice. FRE Fibre Optic Rack Enclosure – Wingback Accessories PART NUMBER DESCRIPTION FRE-1RU-CTRAY 1RU Front Mount Cable Tray with ID strips FRE-1RU-CTRAY-LP 1RU Front Mount Cable Tray Low Profile FRE-1RU-CTRAY-EX 19” 1RU Rail Mount Cable Tray with ID strips FRE-1RU-CTRAY-HG 1RU front mount cable tray with hinged cover FRE-2RU-CTRAY-HG 2RU front mount cable tray with hinged cover FRE-3RU-CTRAY-HG 3RU front mount cable tray with hinged cover FRE-1RU-STO 1RU sliding storage tray FRE-2RUCOVER-STO 2RU Cover – Suits 1RU+STO FRE-2RUCOVER-STO-ID 2RU Cover Kit with ID Strips – Suits 1RU+STO FRE-3RUCOVER-STO 3RU Perspex cover, no labelling FRE-3RUCOVER-STO-ID 3RU Perspex cover, with I.D labelling FRE-4RUCOVER-STO 4RU Perspex cover, no labelling FRE-4RUCOVER-STO-ID 4RU Perspex cover, with I.D labelling FRE-1RUXEAR21 19” to 21” 1RU mounting ear pair - suits RU and SU racks FRE-1RUXEAR23 19” to 23” 1RU mounting ear pair - suits RU and SU racks FRE-2RUXEAR21 19" to 21" 2RU mounting ear pair - suits RU and SU racks FRE-2RUXEAR23 19" to 23" 2RU mounting ear pair - suits RU and SU racks FRE-3RUXEAR21 19" to 21" 3RU mounting ear pair - suits RU and SU racks FRE-3RUXEAR23 19" to 23" 3RU mounting ear pair - suits RU and SU racks Full range of additional accessories available including: • Pigtails • Simplex and duplex adapters • Splicing consumables • Termination consumables These optional accessories can be ordered as a kit with any enclosure. Contact AFL for part numbers. 3RU enclosure with 8 MTP cassettes giving a maximum of 192 fibre connections 1RU enclosure with 2 x 12 fibre pre-terminated cables giving a maximum of 24 fibre connections
