2RU 200mm deep enclosure with full extension sliding tray for splicing up to 144 fibres and presenting up to 192 fibres
bbe409b76f364da0ac0d53c1ea29bd52
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2021, AFL, all rights reserved. 0175, Revision 3, 01.04.21 Specifications are subject to change without notice. AFL’s range of limited depth sliding enclosures are proudly designed and assembled in Australia. This range of enclosures caters for a variety of cable types including loose tube and tight buffered cables. The range has various sizes and panel arrangements available and is perfectly suited for a wide range of applications, in particular shallow-depth racks in hub sites or telecommunications exchanges. Fibre Optic Rack Enclosure – Limited Depth Sliding Technical Specifications PART NUMBER FRE-1RU-MOD-S2 FRE-2RU-MOD-S2 FRE-3RU-MOD-S2 1 Description 1RU 2 panel modular sliding enclosure – Limited depth 2RU 4 panel modular sliding enclosure – Limited depth 3RU 8 panel modular sliding enclosure – Limited depth Dimensions (mm) (w) x (d) x (h) 433 x 200 x 44 433 x 200 x 88 433 x 200 x 132 Weight (kg) 3.1 5.2 6.2 Max modular front panels 2 horizontal 4 horizontal 8 horizontal Max fibre count utilising AFL coupler panels 24 ST, FC, SC and 48 LC 48 ST, FC, SC and 96 LC 96 ST, FC, SC and 192 LC Max splice capacity (single stacked/double stacked) 36/72 72/144 144/288 Incoming Cable Ports 1 x 20 mm Slot 1 x 20 mm Slot 1 x 20 mm Hole 1 x 20 mm Slot 2 x 20 mm Hole High density simplex SC/duplex LC faceplates available 36 port angled 48 port flat 72 port angled 96 port flat 12 Panel vertical (144 port max) Material and colour Powdercoated 1.6 mm steel—Charcoal Grey Accessory kit Standard accessory kit includes: cable management clips, strain relief post, cable ties, fixing bolts and nuts, 1 cable gland, velcro strap and connection record sheet 1. 3RU Enclosures available by special order only Applications • Fusion splicing of loose tube or tight buffer cables • Direct termination of tight buffer cables • Pre-terminated riser cables • Low volume through to high density applications • AFL SD MTP ® Cassettes Features and Benefits • Modular apertures to suit AFL flat or angled panels for various connector types, modes and densities • Internal fibre clips for managing incoming cables and terminated fibres • Inward-facing, angled rear bracket allows glands to be fitted without compromising the depth of the enclosure • Double extendable, ball bearing slide rails allow for smooth sliding tray mechanism and to provide maximum internal access • Silkscreen panel locators for ease of fibre identification • A range of alternate faceplates available for higher density applications
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2021, AFL, all rights reserved. 0175, Revision 3, 01.04.21 Specifications are subject to change without notice. Fibre Optic Rack Enclosure – Limited Depth Sliding Ordering Information FRE 1RU MOD S2 Fibre Rack-mount Enclosure Rack-mount Enclosure size Front Panel Options (see chart below) Sliding 200 mm Depth Enclosure FRONT PANEL OPTIONS MOD Standard panel apertures to suit AFL’s wide range of coupler panels 36SCV Angled 36 Port fixed facia to suit SC simplex or LC duplex style adapters (1RU only) 48SCV Flat 48 Port fixed facia to suit SC simple or LC duplex style adapters (1RU only) 72SCV Angled 72 Port fixed facia to suit SC simplex or LC duplex style adapters (2RU only) 96SCV Flat 96 Port fixed facia to suit SC simple or LC duplex style adapters (2RU only) MOD12 Facia to suit 12 vertical modular coupler panels (3RU only)
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2021, AFL, all rights reserved. 0175, Revision 3, 01.04.21 Specifications are subject to change without notice. Fibre Optic Rack Enclosure – Limited Depth Sliding Ordering Information PANELS FRE-BLANK Blank Panel FRE-BLANK-SML Blank Panel 1/2 Size (8 Panel 3RU only) FRE-SC06H-FL1/6 SC/LCD 6P Panel 1-6HP Flat FRE-SC06H-AL1/6 SC/LCD 6P Panel 1-6HP Angle left FRE-SC06H-AR1/6 SC/LCD 6P Panel 1-6HP Angle right FRE-SC12D-FL1/12 SC/LCD 12P Panel 1-12DP Flat FRE-SC12D-FL13/24 SC/LCD 12P Panel 13-24DP Flat FRE-SC12H-AL1/12 SC/LCD 12P Panel 1-12HP Angle left FRE-SC12H-AR1/12 SC/LCD 12P Panel 1-12HP Angle right FRE-SC12V-AL1/12 SC/LCD 12P Panel 1-12VP Angle left FRE-SC12V-AR13/24 SC/LCD 12P Panel 13-24VP Angle right FRE-SCD03H-FL1/6-C SC Duplex 3P Panel 1-6HP Flat FRE-SCD03H-AL1/6 SC Duplex 3P Panel 1-6HP Angle left FRE-SCD03H-AR1/6 SC Duplex 3P Panel 1-6HP Angle right FRE-SCD06D-FL1/12-C SC Duplex 6P Panel 1-12DP Flat FRE-SCD06H-AL1/12 SC Duplex 6P Panel 1-12HP Angle left FRE-SCD06H-AR1/12 SC Duplex 6P Panel 1-12HP Angle right FRE-ST06H-FL1/6-C ST/FC 6P Panel 1-6HP Flat FRE-ST06H-AL1/6 ST/FC 6P Panel 1-6HP Angle left FRE-ST06H-AR1/6 ST/FC 6P Panel 1-6HP Angle right FRE-ST12D-FL1/12-C ST/FC 12P Panel 1-12DP Flat FRE-ST12D-FL13/24 ST/FC 12P Panel 13-24DP Flat These panels suit the MOD-12 faceplate fitted to 3RU Enclosures. All adaptor panels are angled and can be used in the left or right hand side of the front panel. FRE-SCD06V-AU 6 Port SC Duplex Vertical Angled FRE-SC12V-AU 12 Port SC/LCD Vertical Angled FRE-SC06V-AU 6 Port SC/LCD Vertical Angled FRE-BLANK-V Vertical Blank Panel
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 4 © 2002-2021, AFL, all rights reserved. 0175, Revision 3, 01.04.21 Specifications are subject to change without notice. Fibre Optic Rack Enclosure – Limited Depth Sliding Accessories PART NUMBER DESCRIPTION SPLCASS-LSH-HD-12/24K Splice cassette kit, lge stack HD combs 12/24F SPLCASS-LSH-HD-24/48K Splice cassette kit, lge stack HD combs 24/48F Cassette Kits for up to 288 fibres are available FRE-1RU-CTRAY 1RU front mount cable tray with ID strips FRE-1RU-CTRAY-LP 1RU front mount cable tray low profile FRE-1RU-CTRAY-HG 1RU front mount cable tray with hinged cover FRE-2RU-CTRAY-HG 2RU front mount cable tray with hinged cover FRE-3RU-CTRAY-HG 3RU front mount cable tray with hinged cover FRE-1RU-STO 1RU sliding storage tray FRE-2RUCOVER-CT Suits 2RU enclosure with C-tray FRE-3RUCOVER-CT Suits 3RU enclosure with C-tray FRE-4RUCOVER-STO Suits 3RU enclosure with storage tray FRE-1RUXEAR21 19" to 21" 1RU mounting ear–suits RU and SU racks FRE-2RUXEAR21 19" to 21" 2RU mounting ear–suits RU and SU racks FRE-3RUXEAR21 19" to 21" 3RU mounting ear–suits RU and SU racks FRE-CTRAY-1-PBL/R-K Patchcord management L/R brackets for C-tray–1RU kit FRE-CTRAY-2-PBL/R-K Patchcord management L/R brackets for C-tray–2RU kit FRE-CTRAY-3-PBL/R-K Patchcord management L/R brackets for C-tray–3RU kit The kit comes complete with left and right brackets, patchcord mounting block and mounting screws. Suitable for all 2 mm and 3 mm patchcords. FRE-INTKIT-C-1M Multi cable interface kit, 1 metre up to 4 incoming cables Full range of additional accessories available including: • Pigtails • Simplex and duplex adapters • Splicing consumables • Termination consumables • Internal cable management blocks (see insert) These optional accessories can be ordered as a kit with any enclosure. Contact AFL for part numbers.
Features:
- Modular apertures accommodate AFL's extensive range of flat or angled coupler panels for various connector types, modes, and densities
- Robust double extendable ball bearing drawer slides enable smooth sliding tray mechanism and maximum internal access
- Indelible port numbering for ease of fibre identification and record keeping
- Internal fibre saddles manage incoming cables and terminated fibres
- Inward-facing, angled rear bracket allows glands to be fitted without compromising the depth of the enclosure
- Available pre-assembled as a single part number, ready for cable termination and fibre presentation
Applications:
- Fusion splicing and termination of fibre optic cables
- Patching of pre-terminated fibre optic cables
- Enterprise, Industrial and service provider installations

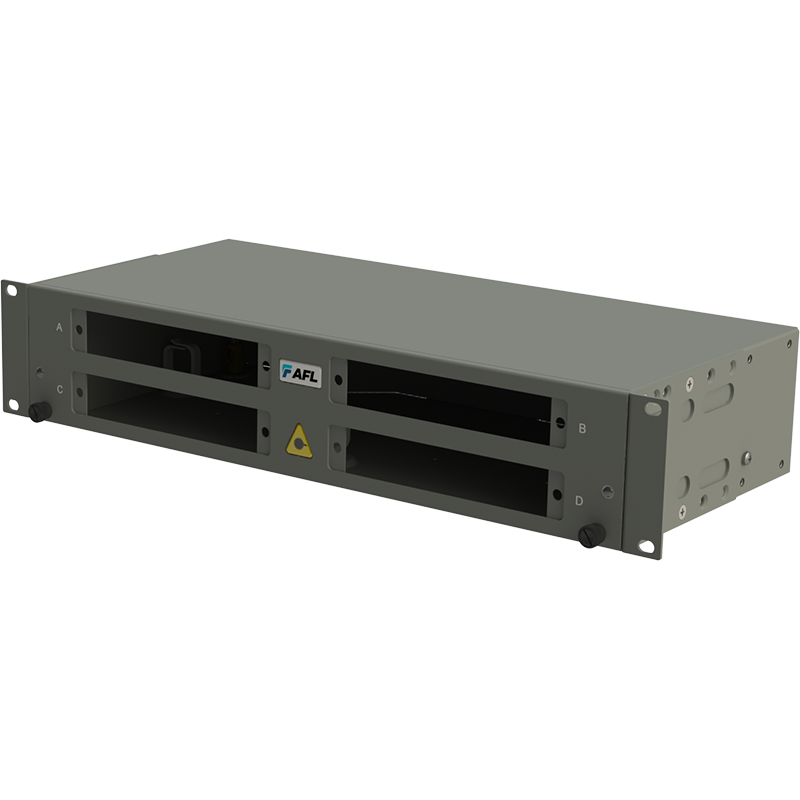

AFL's 2RU limited depth sliding enclosure accommodates modular and fixed front fascias presenting a maximum of 192 fibres and splicing up to 144 fibres. It features an angled cable rear entry which reduces the space needed for cable installation and makes it ideal for shallow racks.
1RU FRE® Fixed Enclosure,1RU FRE® Sliding Enclosure,1RU FRE® Fixed Wingback Enclosure,Loaded Rackmount Enclosures,FWE Series Wall Enclosures, 1-8 Panel,FWE Series Wall Enclosure, 6 Panel,FWE Series MUTO Wall Enclosure,Fibre Pole mount Enclosure,Mini DIN Rail Mounted Fibre Optic Enclosure,FWE Series Wall/DIN Enclosures, 2 Panel,FWE Series Wall/DIN Enclosures, 1 Panel,Dome Style Underground Fibre Enclosures,FHE IP Rated Wall Enclosure,In line Underground Fibre Enclosures
1802
2RU FRE® Limited Depth Sliding Enclosure
Close
2RU FRE® Limited Depth Sliding Enclosure
Features:
- Modular apertures accommodate AFL's extensive range of flat or angled coupler panels for various connector types, modes, and densities
- Robust double extendable ball bearing drawer slides enable smooth sliding tray mechanism and maximum internal access
- Indelible port numbering for ease of fibre identification and record keeping
- Internal fibre saddles manage incoming cables and terminated fibres
- Inward-facing, angled rear bracket allows glands to be fitted without compromising the depth of the enclosure
- Available pre-assembled as a single part number, ready for cable termination and fibre presentation
Applications:
- Fusion splicing and termination of fibre optic cables
- Patching of pre-terminated fibre optic cables
- Enterprise, Industrial and service provider installations
PRODUCT DESCRIPTION
AFL's 2RU limited depth sliding enclosure accommodates modular and fixed front fascias presenting a maximum of 192 fibres and splicing up to 144 fibres. It features an angled cable rear entry which reduces the space needed for cable installation and makes it ideal for shallow racks.
