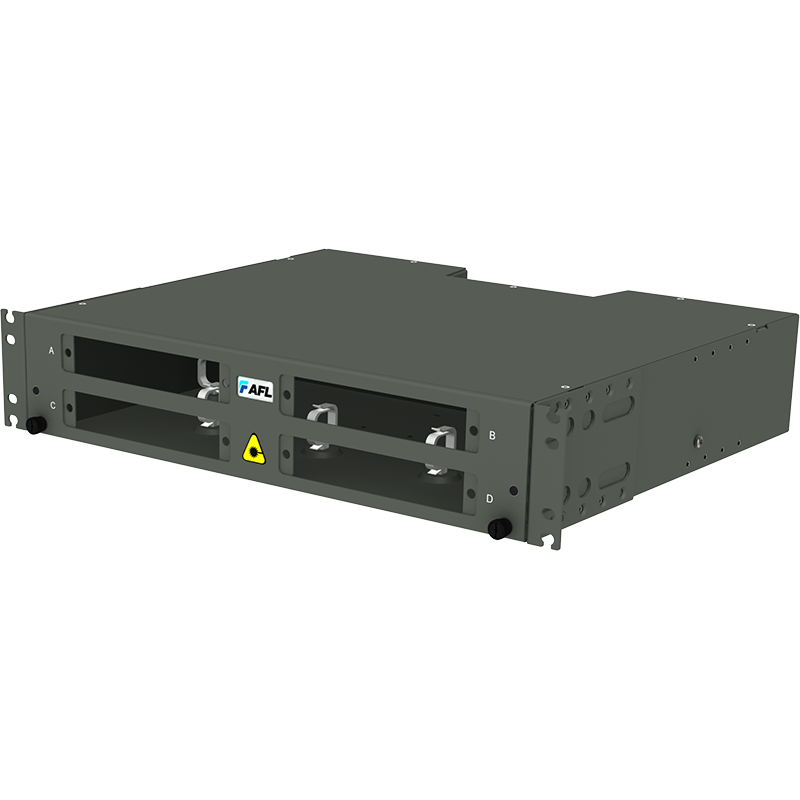

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2024, AFL, all rights reserved. 0249, Revision 6, 20.09.24 Speciflcations are subject to change without notice. Applications • Fusion splicing of loose tube or tight buffer cables • Direct termination of tight buffer cables • Low volume through to high-density applications • AFL SD MTP ® Cassettes • Ideal for highly populated telecoms racks Features and Benefits • Modular apertures to suit AFL flat or angled panels for various connector types, modes and densities • Unique cable management system keeps the incoming cable fixed in place whilst ensuring fibre radius is maintained • Internal fibre clips for managing incoming cables and terminated fibres • Slotted rear cable entry brackets allow for efficient fixing of one or multiple incoming cables • Double extendable ball bearing slide rails allow for smooth sliding tray mechanism and to provide maximum internal access • Silkscreen panel locaters for ease of fibre identification FRE Fibre Optic Rack Enclosure — Static Sliding AFL’s range of Static Sliding (SS) Enclosures are proudly designed and assembled in Australia. These enclosures are perfectly suited for communications racks where incoming cable movement in sliding enclosures becomes problematic. AFL Static Sliding Enclosures cater for a variety of cable types including loose tube and tight buffered cables. The range has various sizes, density and panel arrangements available to suit a variety of applications. • A range of alternate faceplates available for higher density applications • Rodent protection kits for single or multiple cable entry configurations to ensure network integrity in rodent-prone areas • Multiple cable entry configurations available to suit a range of cable types and arrangements Technical Specifications Part Number FRE-1RU-MOD-SS2 FRE-2RU-MOD-SS2 FRE-3RU-MOD-SS2 Description 1RU 2 panel modular static sliding enclosure 2RU 4 panel modular static sliding enclosure 3RU 8 panel modular static sliding enclosure Dimensions (mm) (w) x (d) x (h) 433 x 330 x 44 433 x 330 x 88 433 x 365 x 132 Weight (kg) 4.4 5.8 6.8 Max modular front panels 2 horizontal 4 horizontal 8 horizontal Max fibre count utilising AFL coupler panels 24 ST, FC, SC and 48 LC 48 ST, FC, SC and 96 LC 96 ST, FC, SC and 192 LC Max splice capacity (single stacked/double stacked) 36/72 72/144 144/288 High density simplex SC/duplex LC faceplates available 36 port angled 48 port flat 72 port angled 96 port flat 12 Panel vertical (144 port max) Material and colour Powdercoated 1.6 mm steel – Charcoal Grey Accessory kit Standard accessory kit includes: cable management clips, strain relief post, cable ties, fixing bolts and nuts, Velcro strap and connection record sheet Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2024, AFL, all rights reserved. 0249, Revision 6, 20.09.24 Speciflcations are subject to change without notice. Ordering Information FRE 1RU MOD SS2 Fibre Rack-mount Enclosure Rack-mount Enclosure size Front Panel Options (see chart below) Cable Entry Options (See chart below) CABLE ENTRY OPTIONS SS2 Standard slotted rear cable entry bracket, suits up to 6 incoming cables SS2RP Rodent protected cable entry bracket, suits up to 4 incoming cables SS3 Dual slotted rear cable entry brackets, suits up to 12 incoming cables (2 and 3RU only) SS Glanded cable entry—multiple cable expansion kits available (legacy 2 and 3RU only) FRONT PANEL OPTIONS MOD Standard panel apertures to suit AFL's wide range of coupler panels 36SCV Angled 36 Port fixed facia to suit SC simplex or LC duplex style adapters (1RU only) 48SCV Flat 48 Port fixed facia to suit SC simplex or LC duplex style adapters (1RU only) 72SCV Angled 72 Port fixed facia to suit SC simplex or LC duplex style adapters (2RU SS2/SS3/SS2RP only) 96SCV Flat 96 Port fixed facia to suit SC simple or LC duplex style adapters (2RU SS2/SS3/SS2RP only) MOD12 Facia to suit 12 vertical modular coupler panels (3RU SS2/SS3/SS2RP only) FRE Fibre Optic Rack Enclosure — Static Sliding Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2024, AFL, all rights reserved. 0249, Revision 6, 20.09.24 Speciflcations are subject to change without notice. Ordering Information PANELS FRE-BLANK Blank Panel FRE-BLANK-SML Blank Panel 1/2 Size (8 Panel 3RU only) FRE-SC06H-FL1/6 SC/LCD 6P Panel 1-6HP Flat FRE-SC06H-AL1/6 SC/LCD 6P Panel 1-6HP Angle left FRE-SC06H-AR1/6 SC/LCD 6P Panel 1-6HP Angle right FRE-SC12D-FL1/12 SC/LCD 12P Panel 1-12DP Flat FRE-SC12D-FL13/24 SC/LCD 12P Panel 13-24DP Flat FRE-SC12H-AL1/12 SC/LCD 12P Panel 1-12HP Angle left FRE-SC12H-AR1/12 SC/LCD 12P Panel 1-12HP Angle right FRE-SC12V-AL1/12 SC/LCD 12P Panel 1-12VP Angle left FRE-SC12V-AR13/24 SC/LCD 12P Panel 13-24VP Angle right FRE-SCD03H-FL1/6-C SC Duplex 3P Panel 1-6HP Flat FRE-SCD03H-AL1/6 SC Duplex 3P Panel 1-6HP Angle left FRE-SCD03H-AR1/6 SC Duplex 3P Panel 1-6HP Angle right FRE-SCD06D-FL1/12-C SC Duplex 6P Panel 1-12DP Flat FRE-SCD06H-AL1/12 SC Duplex 6P Panel 1-12HP Angle left FRE-SCD06H-AR1/12 SC Duplex 6P Panel 1-12HP Angle right FRE-ST06H-FL1/6-C ST/FC 6P Panel 1-6HP Flat FRE-ST06H-AL1/6 ST/FC 6P Panel 1-6HP Angle left FRE-ST06H-AR1/6 ST/FC 6P Panel 1-6HP Angle right FRE-ST12D-FL1/12-C ST/FC 12P Panel 1-12DP Flat FRE-ST12D-FL13/24 ST/FC 12P Panel 13-24DP Flat These panels suit the MOD-12 faceplate on 3RU Enclosures. All adaptor panels are angled and can be used in the left or right hand side of the front panel. FRE-SCD06V-AU 6 Port SC Duplex Vertical Angled FRE-SC12V-AU 12 Port SC/LCD Vertical Angled FRE-SC06V-AU 6 Port SC/LCD Vertical Angled FRE-BLANK-V Vertical Blank Panel FRE Fibre Optic Rack Enclosure — Static Sliding Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 4 © 2002-2024, AFL, all rights reserved. 0249, Revision 6, 20.09.24 Speciflcations are subject to change without notice. Accessories PART NUMBER DESCRIPTION SPLCASS-LSH-HD-12/24K Splice cassette kit, lge stack HD combs 12/24F SPLCASS-LSH-HD-24/48K Splice cassette kit, lge stack HD combs 24/48F Cassette Kits for up to 288 fibres are available FRE-1RU-CTRAY 1RU front mount cable tray with ID strips FRE-1RU-CTRAY-LP 1RU front mount cable tray low profile FRE-1RU-CTRAY-HG 1RU front mount cable tray with hinged cover FRE-2RU-CTRAY-HG 2RU front mount cable tray with hinged cover FRE-3RU-CTRAY-HG 3RU front mount cable tray with hinged cover FRE-1RU-STO 1RU sliding storage tray FRE-2RUCOVER-CT Suits 2RU enclosure with C-tray FRE-3RUCOVER-CT Suits 3RU enclosure with C-tray FRE-4RUCOVER-STO Suits 3RU enclosure with storage tray FRE-1RUXEAR21 19" to 21" 1RU mounting ear—suits RU and SU racks FRE-2RUXEAR21 19" to 21" 2RU mounting ear—suits RU and SU racks FRE-3RUXEAR21 19" to 21" 3RU mounting ear—suits RU and SU racks FRE-CTRAY-1-PBL/R-K Patchcord management L/R brackets for C-tray–1RU kit FRE-CTRAY-2-PBL/R-K Patchcord management L/R brackets for C-tray–2RU kit FRE-CTRAY-3-PBL/R-K Patchcord management L/R brackets for C-tray–3RU kit The kit comes complete with left and right brackets, patchcord mounting block and mounting screws. Suitable for all 2 mm and 3 mm patchcords. Full range of additional accessories available including: • Pigtails • Simplex and duplex adapters • Splicing consumables • Termination consumables • Internal cable management blocks (see insert) These optional accessories can be ordered as a kit with any enclosure. Contact AFL for part numbers. FRE Fibre Optic Rack Enclosure — Static Sliding
