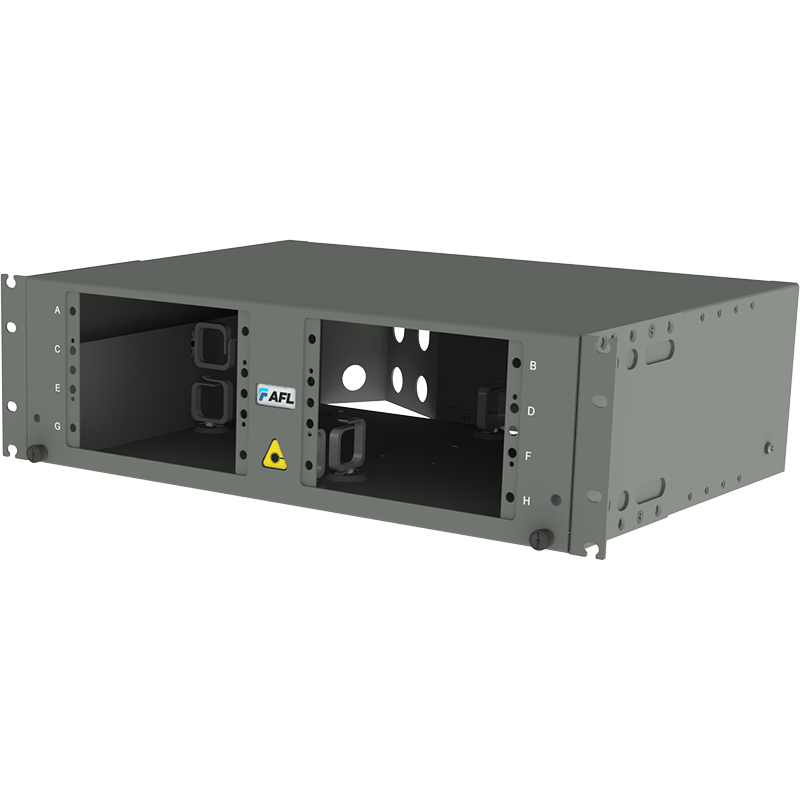

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2024, AFL, all rights reserved. 0770, Revision 5, 27.06.24 Specifications are subject to change without notice. Introducing AFL's sliding enclosures: Designed and assembled in Australia, they accommodate various cable types, from loose tube to tight buffered cables. With a range of sizes and panel arrangements, they're ideal for diverse applications. Fibre Rack Mount Enclosure – Sliding Technical Specifications PART NUMBER FRE-1RU-MOD-S FRE-2RU-MOD-S FRE-3RU-MOD-S FRE-3RU-MOD12-S Dimensions (mm) (W) X (D) X (H) 482 (19") x 300 x 44 482 (19") x 330 x 88 482 (19") x 365 x 132 Weight (Kg) 4.2 5.6 6.6 Coupler Panel Capacity 2 4 8 12 Max. Port Capacity using Coupler Panels 24 SC, ST, FC and 48 LC 48 SC, ST, FC and 96 LC 96 SC, ST, FC and 192 LC 72 ST, FC, 144 SC, 288 LC Max. Port Capacity using Optional Fixed Front Angled: 36SC, 72LC Flat: 48SC, 96LC Angled: 72SC, 144 LC Flat: 96SC, 192LC Not Available Max. Single Fibre Splice Capacity ( single/double stacked splice protectors) 36/72 72/144 144/288 Max. Recommended incoming Cables 2 per Side (See Rear Cable Entry Options) 4 per Side (See Rear Cable Entry Options) Material and Colour 1.6 mm Steel - Powder-coated Mercury Grey Included Cable Glands 1 x 20 mm Spiral Compression Gland 2 x 20 mm Spiral Compression Glands Included Cabled Strain Relief Anchors 1 Kit 2 Kits Standard Accessories Cable management saddles, rack fixing screws, washers and cage nuts, hook and loop strap, cable ties and termination record sheets Optional Accessories All AFL rackmount enclosures can be purchased as a pre-assembled enclosure with the following inclusions: Patch plates, splice cassettes, splice protectors, through adapters & pigtails. See Optional Accessories Chart for further details on available accessories. Contact AFL to configure and quote your enclosure Applications • Fusion splicing of loose tube or tight buffered cables • Patching of pre-terminated loose tube or tight buffered cables • Patching of field terminated cables • Supports low to high fibre count applications Features and Benefits • Modular apertures accommodate AFL's extensive range of flat or angled coupler panels for various connector types, modes, and densities. • Double extendable ball bearing drawer slides enable smooth sliding tray mechanism and maximum internal access. • Durable panel locators facilitate fibre identification and record keeping. • Internal fibre saddles manage incoming cables and terminated fibres. • Flat and angled rodent protected cable entry options available throughout the range. • Comprehensive selection of front panel options and accessories can be configured and supplied to meet specific requirements. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2024, AFL, all rights reserved. 0770, Revision 5, 27.06.24 Specifications are subject to change without notice. Ordering Information FRE 1RU-MOD S Fibre Rack-mount Enclosure Rack Spaces & Fascia Rear Cable Entry FRONT FASCIA OPTIONS CODE DESCRIPTION IMAGE 1RU-MOD 1 Rack Unit modular front panel to suit 2 Standard Density (SD) coupler panels 1RU-36SCV 1 Rack Unit angled left & right fixed front panel to suit 36 SC simplex or LC duplex footprint adapter (1RU only) 1RU-48SCV 1 Rack Unit flat fixed front panel to suit 48 SC simplex or LC duplex footprint adapter (1RU only) 2RU-MOD 2 Rack Unit modular front panel to suit 4 Standard Density (SD) coupler panels 2RU-72SCV 2 Rack Unit angled left & right fixed front panel to suit 72 SC simplex or LC duplex footprint adapter (2RU only) 2RU-96SCV 2 Rack Unit flat fixed front panel to suit 96 SC simplex or LC duplex footprint adapter (2RU only) 3RU-MOD 3 Rack Unit modular front panel to suit 8 Standard Density (SD) coupler panels 3RU-MOD12 3 Rack Unit modular front panel to suit 12 Angled Universal (AU) coupler panels (3RU only) REAR CABLE ENTRY OPTIONS CODE DESCRIPTION SPECIFICATIONS IMAGE S 1RU Standard 'M' shaped angled rear cable entry bracket 4 x 20 mm slots 2 x 20 mm holes 1 2/3RU Standard 'M' shaped angled rear cable entry bracket 4 x 20 mm slots 4 x 20 mm holes 2 x 20 mm holes 1 SB 1RU Angled rear slotted cable entry bracket best suited for high quantity of bundled, tight buffered cable 1 x 20 mm slot SMRP 1RU Rodent protected 'M' shaped angled rear cable entry bracket with covers 4 x 20 mm knockout slots 2 x 20mm holes 1 2/3RU Rodent protected 'M' shaped angled rear cable entry bracket with covers 4 x 20/25 mm holes/slots 4 x 20/25 mm holes 4 x 20 mm interface kit holes 1 SRP 1RU Rodent protected flat cable entry bracket 4 x 20 mm knockout slots 2/3RU Rodent protected flat cable entry bracket 8 x 20 mm knockout holes 1 Holes suitable only for use with interface kit with 20 mm angled gland. Fibre Rack Mount Enclosure – Sliding Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 3 © 2002-2024, AFL, all rights reserved. 0770, Revision 5, 27.06.24 Specifications are subject to change without notice. STANDARD DENSITY (SD) COUPLER PANELS PART NUMBER DESCRIPTION IMAGE FRE-BLANK Blank Panel FRE-BLANK-SML Blank Panel to convert 3RU MOD front panel from 8 to 6 panel capacity (See FIG. 01, 4 pcs required) FRE-SC06H-FL1/6 SC/LCD, 6 Port Flat Panel, Printing 1-6 Horizontal FRE-SC06H-AL1/6 SC/LCD, 6 Port Left Facing Panel, Printing 1-6 Horizontal FRE-SC06H-AR1/6 SC/LCD, 6 Port Right Facing Panel, Printing 1-6 Horizontal FRE-SC12D-FL1/12 SC/LCD, 12 Port Flat Panel, Printing 1-12 Diagonal FRE-SC12D-FL13/24 SC/LCD, 12 Port Flat Panel, Printing 13-24 Diagonal FRE-SC12H-AL1/12 SC/LCD, 12 Port Left Facing Panel, Printing 1-12 Horizontal FRE-SC12H-AR1/12 SC/LCD, 12 Port Right Facing Panel, Printing 1-12 Horizontal FRE-SC12V-AL1/12 SC/LCD, 12 Port Left Facing Panel, Printing 1-12 Vertical FRE-SC12V-AR1/12 SC/LCD, 12 Port Right Facing Panel, Printing 1-12 Vertical FRE-SC12V-AR13/24 SC/LCD, 12 Port Right Facing Panel, Printing 13-24 Vertical FRE-SCD03H-FL1/6 SCD/LCQ, 3 Port Flat Panel, Printing 1-6 Horizontal FRE-SCD03H-AL1/6 SCD/LCQ, 3 Port Left Facing Panel, Printing 1-6 Horizontal FRE-SCD03H-AR1/6 SCD/LCQ, 3 Port Right Facing Panel, Printing 1-6 Horizontal FRE-SCD06D-FL1/12 SCD/LCQ, 6 Port Flat Panel, Printing 1-12 Diagonal FRE-SCD06D-FL13/24 SCD/LCQ, 6 Port Flat Panel, Printing 13-24 Diagonal FRE-SCD06H-AL1/12 SCD/LCQ, 6 Port Left Facing Panel, Printing 1-12 Horizontal FRE-SCD06H-AR1/12 SCD/LCQ, 6 Port Right Facing Panel, Printing 1-12 Horizontal FRE-ST06H-FL1/6 ST/FC, 6 Port Flat Panel, Printing 1-6 Horizontal FRE-ST06H-AL1/6 ST/FC, 6 Port Left Facing Panel, Printing 1-6 Horizontal FRE-ST06H-AR1/6 ST/FC, 6 Port Right Facing Panel, Printing 1-6 Horizontal FRE-ST12D-FL1/12 ST/FC, 12 Port Flat Panel, Printing 1-12 Diagonal FRE-ST12D-FL13/24 ST/FC, 12 Port Flat Panel, Printing 13-24 Diagonal Non-standard panel colours & numbering available, MOQ may apply. Contact AFL for more information Fibre Rack Mount Enclosure – Sliding Figure 1: 3RU MOD Front Fascia with 4 pcs of FRE-BLANK-SML fitted. Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 4 © 2002-2024, AFL, all rights reserved. 0770, Revision 5, 27.06.24 Specifications are subject to change without notice. Accessories PART NUMBER DESCRIPTION 1RU 2RU 3RU IMAGE SPLCASS-LSH-HD-12/24K Large Splice Cassette Kit Max. 24 Splices ü ü ü SPLCASS-LSH-HD-24/48K Large Splice Cassette Kit Max. 48 Splices ü ü ü SPLCASS-LSH-HD-36/72K Large Splice Cassette Kit Max. 72 Splices ü ü ü SPLCASS-LSH-HD-48/96K* Large Splice Cassette Kit Max. 96 Splices ü ü SPLCASS-LSH-HD-60/120K Large Splice Cassette Kit Max. 120 Splices ü ü SPLCASS-LSH-HD-72/144K Large Splice Cassette Kit Max. 144 Splices ü ü SPLCASS-LSH-HD-84/168K Large Splice Cassette Kit Max. 168 Splices ü SPLCASS-LSH-HD-96/192K Large Splice Cassette Kit Max. 192 Splices ü SPLCASS-LSH-HD-108/216K Large Splice Cassette Kit Max. 216 Splices ü SPLCASS-LSH-HD-120/240K Large Splice Cassette Kit Max. 240 Splices ü SPLCASS-LSH-HD-132/264K Large Splice Cassette Kit Max. 264 Splices ü SPLCASS-LSH-HD-144/288K Large Splice Cassette Kit Max. 288 Splices ü FRE-1RU-CTRAY 1RU front mount cable tray with identification labels (90 mm deep) ü ü ü FRE-2RUCOVER-CT 2RU polycarbonate cover and labels for FRE-1RU-CTRAY (Suits 2RU enclosures) ü FRE-3RUCOVER-CT 3RU polycarbonate cover and labels for FRE-1RU-CTRAY (suits 3RU enclosures) ü FRE-1RU-CTRAY-LP 1RU front mount cable tray low profile (90 mm deep) ü ü ü FRE-1RU-CTRAY-HG 1RU front mount cable tray with hinged cover and adhesive identification labels (98 mm deep) ü FRE-2RU-CTRAY-HG 2RU front mount cable tray with hinged cover and adhesive identification labels (98 mm deep) ü FRE-3RU-CTRAY-HG 3RU front mount cable tray with hinged cover and adhesive identification labels (98 mm deep) ü FRE-1RU-STO 19” 1RU sliding storage tray for patch cord overlength, front & rear access ü ü ü Fibre Optic Rack Enclosure – Sliding ANGLE UNIVERSAL (AU) COUPLER PANELS – ONLY SUITABLE FOR 3RU-MOD12 FRONT FASCIA Part Number FRE-BLANK-V FRE-ST06V-AU FRE-SC06V-AU FRE-SC12V-AU FRE-SCD06V-AU Description Vertical Blank Panel ST/FC 6P Vertical Angled SC/LCD 6P Vertical Angled SC/LCD 12P Vertical Angled SCD/LCQ 6P Vertical Angled Image * * SHOWN Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 5 © 2002-2024, AFL, all rights reserved. 0770, Revision 5, 27.06.24 Specifications are subject to change without notice. PART NUMBER DESCRIPTION 1RU 2RU 3RU IMAGE FRE-2RUCOVER-STO 2RU polycarbonate cover and labels for FRE-1RU-1RU-STO with 1RU enclosure installed above ü FRE-3RUCOVER-STO 3RU polycarbonate cover and labels for FRE-1RU-1RU-STO with 2RU (or 2 x 1RU) enclosure/s installed above ü FRE-4RUCOVER-STO 4RU polycarbonate cover and labels for FRE-1RU-1RU-STO with 3RU (or 3 x 1RU, 1RU + 2RU) enclosure/s installed above ü FRE-1RUXEAR21 19" to 21" 1RU mounting ear, suits RU and SU racks (sold as pair) ü FRE-2RUXEAR21 19" to 21" 2RU mounting ear, suits RU and SU racks (sold as pair) ü FRE-3RUXEAR21 19" to 21" 3RU mounting ear, suits RU and SU racks (sold as pair) ü HEY3246 M20 spiral compression gland suit cable 6.9 - 11.9 mm (black nylon) IP68 Requires 20 mm hole or slot CABGN20 M20 compression gland suit cable 8 - 13 mm (black nylon) IP68 Requires 20 mm hole or slot CABGN25 M25 compression gland suit cable 9 - 18 mm (black nylon) IP68 Requires 25 mm hole or slot CSM-ANCHOR Cable strength member anchor max 7 mm diameter 1 2 5 4 FRE-CTRAY-1-PBL/R-K 3 Patch cord management left and right brackets for 1RU cable tray ü ü ü FRE-CTRAY-2-PBL/R-K 3 Patch cord management left and right brackets for 2RU cable tray ü ü FRE-CTRAY-3-PBL/R-K 3 Patch cord management left and right brackets for 3RU cable tray ü 2 Not compatible with SB rear cable entry option 3 Not compatible with low profile cable management tray Additional products are available, including: • Fibre optic pigtails and patch cords • Fibre optic through adapters, shutters & blanking plugs • Interface kits • Fusion splicing consumables • Termination consumables Fibre Optic Rack Enclosure – Sliding
