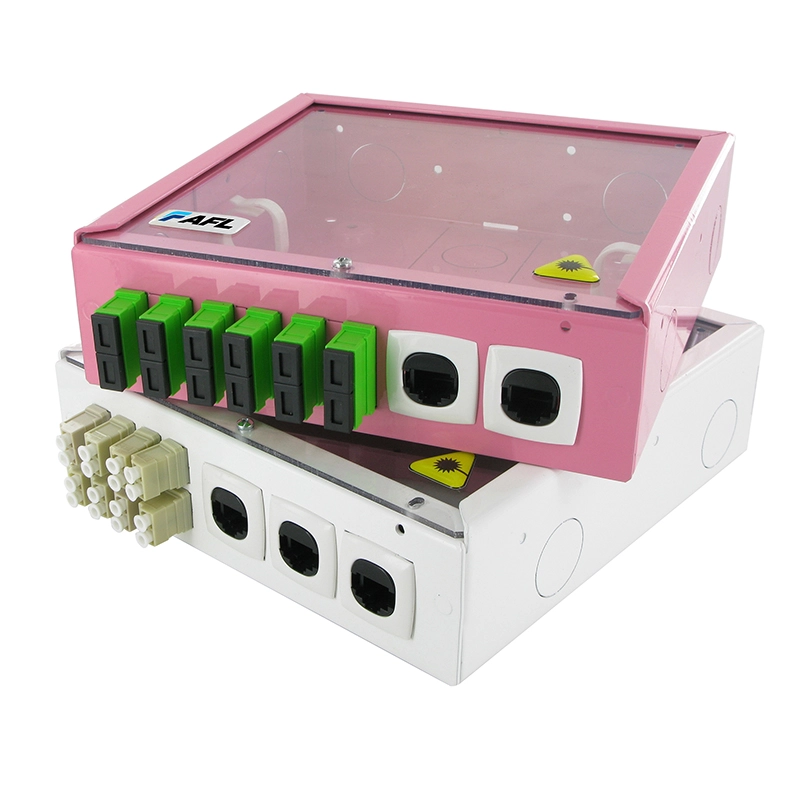

Australia: 1300 232 476 or www.AFLglobal.com/au New Zealand: 09 927 7140 or www.AFLglobal.com/nz Fibre Enclosures and Racks 1 © 2002-2016, A FL, all rights reserved. 0 8 55, Revision 2 , 2 9 .04.16 Specifications are subject to change without notice. The MDE Multimedia Wall Enclosure is specifically designed for the direct termination of fibre and twisted pair copper cables. It incorporates added security features which make it well suited for Defence fibre-to-the-desk applications. The enclosure is available in a variety of configurations and colours. It features knock-out adapter panels and can house both fibre adaptors and RJ45 jacks. The professional appearance of this enclosure make it ideal for any office or corporate installation. Multimedia Wall Enclosure Features and Benefits • The enclosures compact size makes it very versatile • Clear acrylic cover makes inspection for tampering simple • Knockout adaptor and cable openings keep pests and vermin from entering unused ports • Cable entry port on base of enclosure allows for concealed wall cavity cable entry • Two cable management clips for efficient management of internal wiring Applications • Suitable for direct termination of riser fibre cable and twisted pair copper cable • Remote cable terminations within buildings • Defence requirements for identifying tampering or accidental fibre disconnections • Fibre-to-the-desk applications Technical Specifications Dimensions 180 mm x 180 mm x 50 mm Material 1.6 mm mild steel powdercoated Weight (kg) 1.20 kg Cable Ports 6 x 25 mm knockouts on sides. 1 x 25 mm knockout on enclosure base. Ordering Information Adaptor Panel 1 Maximum of 10 SCD/LCQ ports or 5 RJ45 copper ports. Adaptor Panel 2 Maximum of 8 SC/LCD ports. Maximum of 6 SCD/LCQ ports or 3 RJ45 copper ports. Adaptors Suits all adaptor styles including: SC, SCA, SCD, LCD, LCQ, MTRJ, RJ45 Bezel, ST, FC Enclosure colour Red, Blue, Black, Pink and White Cable gland 25 mm nylon, maximum 6 Mounting clip For DIN rail applications RJ45 jacks Cat 6 and Cat 6A jacks for use with a one inch bezel Rear cable entry bracket Radius bracket for managing cable entry within a wall cavity Cable anchor Internally mounted cable securing anchor Splice comb 12 fibre high density splice comb Contact AFL for specific part numbers on the required loaded enclosure. This will vary with the combination and amount of kit components required. Both front panels have knockout adaptor ports which can be removed as required.
