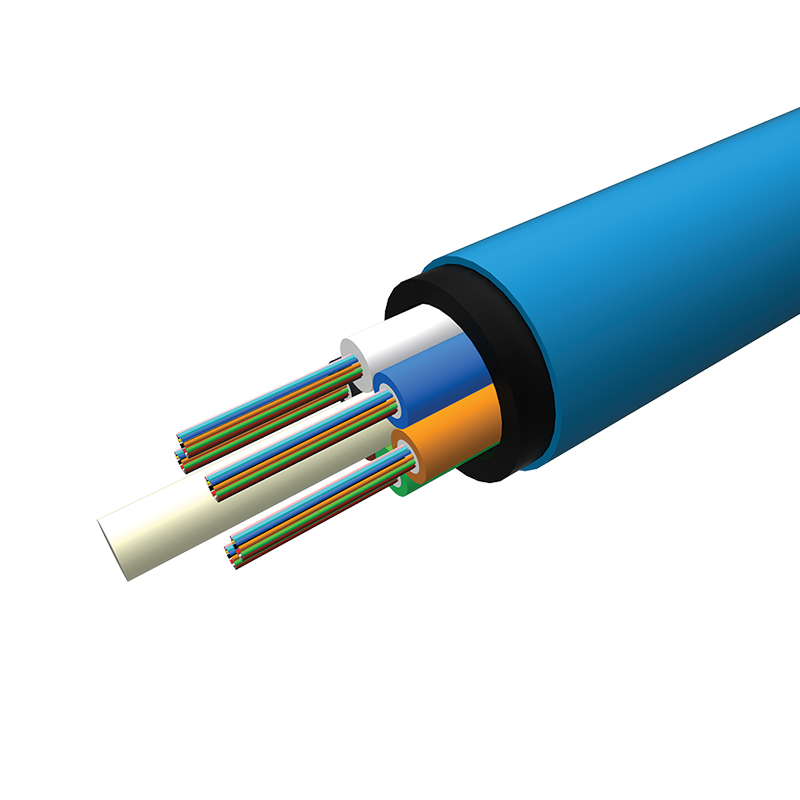

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2023, AFL, all rights reserved. 1413, Revision 2, 16.08.23 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre High Strength Stranded Loose Tube Cable Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE) and UV stable, termite resistant Nylon, forming a conventional HS1 cable. Surface printing includes length marking at one metre intervals. Part Number LMJ6**JA0††BE LKJ6**JA0¥¥BE Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications High strength stranded loose tube cable is ideal for long-haul, backbone applications where the cable is being installed in rocky or expansive soils, suitable for duct & direct-burial applications. Cable has been rigorously tested for lateral & axial compressive loads to simulate the demands of expansive black soil. UV stabilised outer jacket as per AS 1049. Cable Components Termite Resistant Nylon Jacket Polyethylene Sheath Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Dry Water Blocked Core Central Strength Member Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 3.2 Nominal Cable Diameter mm 13.6 Nominal Weight kg/km 150 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 6 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 6 Long-term (120 min) kN/100 mm 3 Impact kg.m 1.5 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1E = SM Premium G.652.D "LWP", 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† Represents any fibre-count up to 72 (LMJ6 - 12F/Tube). ¥¥ Represents any fibre-count up to 36 (LKJ6 - 6F/Tube). Refer to OSP Cable - Optical Characteristics for further information.
Features
- Insect Resistant Nylon Inner Sheath
- High crush resistance
- High tensile strength
Applications
- Underground in conduit
- Underground direct burial
- Short and long haul backbone applications
- Mining, Backbone, Backhaul
- Shifting soil, black soil, expanding soil
High strength stranded loose tube cable is ideal for long-haul, backbone
applications where the cable is being installed in rocky or expansive soils, suitable for duct & direct-burial applications. Cable has been rigorously tested for lateral & axial compressive loads to simulate the demands of expansive black soil. UV stabilised outer jacket as per AS 1049.
