Non-metallic armoured stranded loose tube cable is ideal for short and long-haul, point-to-point, point-to-multipoint and backbone applications.
91c6ad03643f43dfbe210c3c185f7ca5

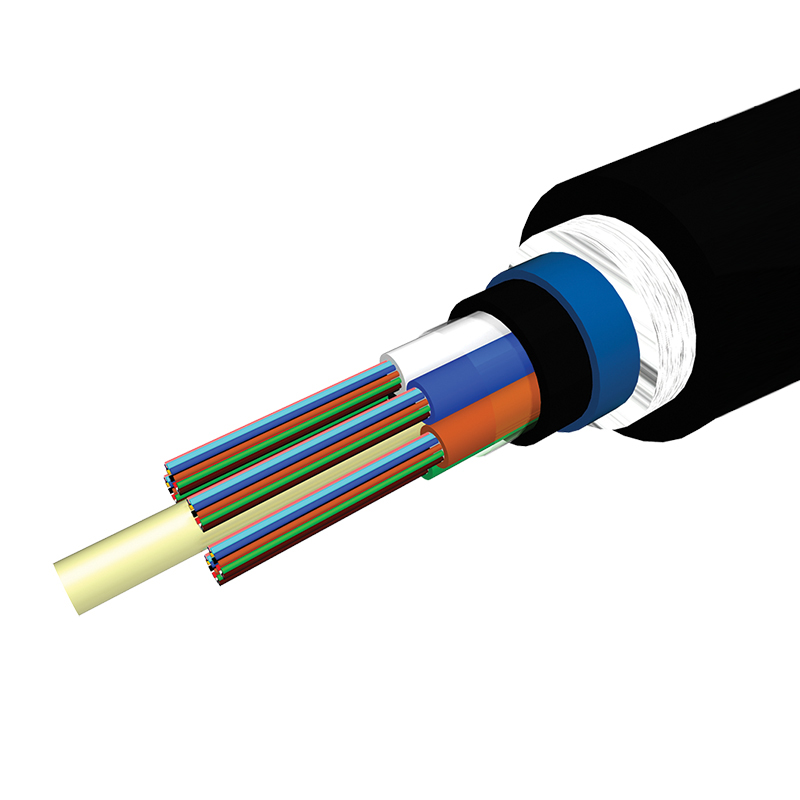

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2024, AFL, all rights reserved. 2201, Revision 1, 18.12.24 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre Non-Metallic Armoured Stranded Loose Tube Cable with LSZH Sheath Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE), termite resistant nylon, glass composite armour and outer Low-Smoke Zero Halogen (LSZH) sheath. Surface printing includes length marking at one metre intervals. Part Number NMD6**PM0††## NKD6**PM0¥¥## Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, AS/NZS IEC 60332.1, AS/NZS IEC 60332-3-24, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications Non-metallic armoured stranded loose tube cable is ideal for short and long-haul, point-to-point, point-to-multipoint and backbone applications. The glass composite armour over the Nylon Jacket provides rodent resistance and robustness to the cable, whilst increasing the tensile strength. The LSZH sheath minimises the flammability content of the cable and makes it suitable for use in indoor, free draining duct/ conduit, protected (non-UV exposed) environments such as road/rail tunnels. Cable Components Outer LSZH Sheath Rodent Resistant Glass Composite Armour Termite Resistant Nylon Jacket Inner Polyethylene Sheath Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Dry Water Blocked Core Central Strength Member Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 2.0 Nominal Cable Diameter mm 14.5 Nominal Weight kg/km 220 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 5 Min. Bending Radius - Under Load mm 30 x OD Min. Bending Radius - No Load mm 15 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 2.5 Long-term (120 min) kN/100 mm 2.5 Impact kg.m 1.5 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1E = SM premium G.652.D "LWP", 1F = SM G.657.A1, 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† Repr esents any fibre-count up to 72 (NMD6 - 12F/Tube). ¥¥ Represents any fibre-count up to 36 (NKD6 - 6F/Tube). ## Represents LSZH sheath colour, BK = Black, BE = Blue, WE = White ,YW = Yellow, other colours available on request. Refer to OSP Cable - Optical Characteristics for further information.
Features:
- Protection from rodents, burrowing animals and termites
- All dielectric, Non-metallic Armoured (NMA) construction
- High crush resistance
- High tensile strength
- Drycore construction resulting in less mess and time lost for fibre breakout
Applications:
- Ideal for short & long-haul backbone applications.
- Point-to-Point drop cable for limited duct space.
- Indoor free draining duct & conduit.
Non-metallic armoured stranded loose tube cable is ideal for short and long-haul, point-to-point, point-to-multipoint and backbone applications. The glass composite armour over the Nylon Jacket provides rodent resistance and robustness to the cable, whilst increasing the tensile strength.
The LSZH sheath minimises the flammability content of the cable and makes it suitable for use in indoor, free draining duct/conduit, protected (non-UV exposed) environments such as road/rail tunnels.
