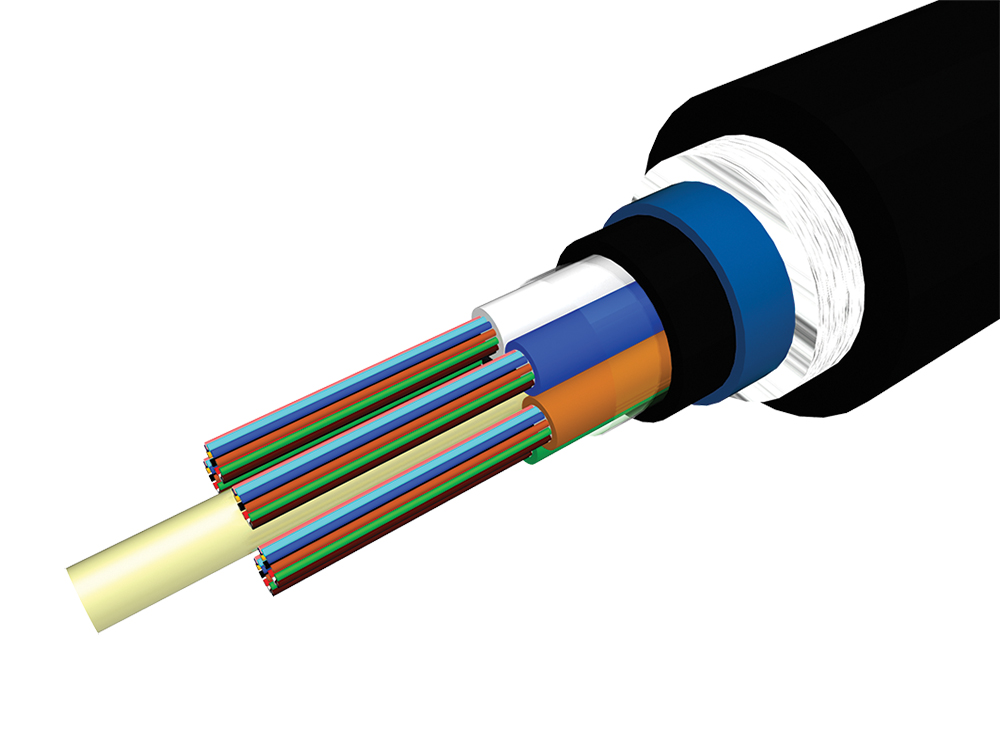

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2024, AFL, all rights reserved. 2216, Revision 0, 12.01.24 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre High Strength Non-Metallic Armoured Stranded Loose Tube Cable Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE), termite resistant nylon, glass composite armour and outer UV stable, polyethylene sheath forming a conventional HS1 cable. Surface printing includes length marking at one metre intervals. Part Number NMJ6**JB0††## NKJ6**JB0¥¥## Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications High strength non-metallic armoured stranded loose tube cable is ideal for short and long-haul, point-to-point, point-to-multipoint, backbone applications and can be installed in rocky or expansive soils, suitable for duct and direct-burial applications. The glass composite armour over the Nylon Jacket provides rodent resistance and robustness to the cable, whilst increasing the tensile strength. Cable has been rigorously tested for lateral and axial compressive loads to simulate the demands of expansive black soil. UV stabilised outer jacket as per AS 1049. Cable Components Outer Polyethylene Sheath Rodent Resistant Glass Composite Armour Termite Resistant Nylon Jacket Inner Polyethylene Sheath Moisture Resistant Jelly-Filled Loose Tube Optical Fibre Dry Water Blocked Core Central Strength Member Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 3.2 Nominal Cable Diameter mm 19 Nominal Weight kg/km 300 Temperature Range °C -10 to 70 Max. Pulling Tension - Install kN 17 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 6 Long-term (120 min) kN/100 mm 3 Impact kg.m 1.5 ** Represents any fibre type,1D = SM G.652.D "LWP",1E = SM premium G.652.D "LWP", 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† Repr esents any fibre-count up to 72 (NMJ6 - 12F/Tube). ¥¥ Represents any fibre-count up to 36 (NKJ6 - 6F/Tube). ## Represents sheath colour, BK = Black (standard), the following colours are available upon request: BE = Blue, GY = Grey, YW = Yellow, WE = White. Refer to OSP Cable - Optical Characteristics for further information.
Features
- High crush resistance
- High tensile strength
- Termite & Rodent Resistant
Applications
- Short and Long-Haul, Backbone, Point-to-Point and Point-to-multipoint installations
- Duct or Direct Buried
- Shifting soil, black soil, expanding soil
High strength non-metallic armoured stranded loose tube cable is ideal for short and long-haul, point-to-point, point-to-multipoint, backbone applications and can be installed in rocky or expansive soils, suitable for duct and direct-burial applications. The glass composite armour over the Nylon Jacket provides rodent resistance and robustness to the cable, whilst increasing the tensile strength. Cable has been rigorously tested for lateral and axial compressive loads to simulate the demands of expansive black soil. UV stabilised outer jacket as per AS 1049.
