Stranded loose tube cable is ideal for short and long haul backbone applications and can be installed in-duct or direct-buried.
035c12787b1c4fb787f911b889352278

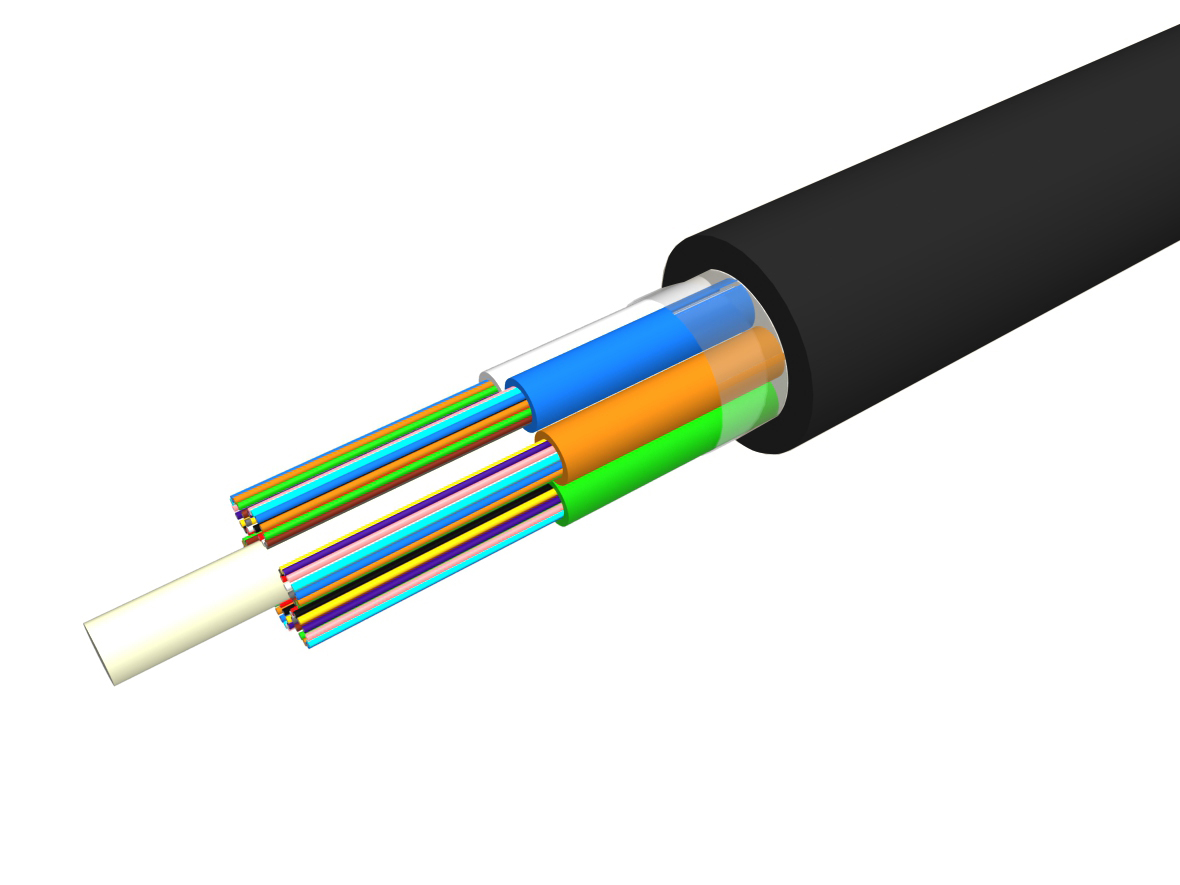

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Cable 1 © 2002-2025, AFL, all rights reserved. 1631, Revision 3, 20.06.25 Specifications are subject to change without notice. Actual finished product may vary from illustration. 72 Fibre Stranded Loose Tube Cable with LSZH Sheath Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with a LSZH Jacket. Surface printing includes length marking at one metre intervals. Part Number LMB6**PA0††## LKB6**PA0¥¥## Applicable Specifications AS/CA S008, AS 1049, AS/NZS 11801-1, AS/NZS IEC 60332.1, TIA-598-D, IEC 60793, IEC 60794, ITU-T Recommendations Applications Low-Smoke Zero Halogen (LSZH) stranded loose tube cable is ideal for short-haul, long-haul and point-to-point drop cable applications where duct space is limited. The LSZH sheath minimizes the flammability content of the cable making it suitable for use indoor in free draining duct and conduit, in protected (non-UV exposed) environments such as road/rail tunnels. Cable Components Physical Characteristics SPECIFICATION UNIT VALUE Nominal Tube Diameter mm 2.0 Nominal Cable Diameter mm 8.8 Nominal Weight kg/km 80 Temperature Range °C -40 to 70 Max. Pulling Tension - Install kN 2 Min. Bending Radius - Under Load mm 20 x OD Min. Bending Radius - No Load mm 10 x OD Max. Crush Resistance Short-term (10 min) kN/100 mm 2 Long-term (120 min) kN/100 mm 2 Impact kg.m 1 ** Represents any fibre type, 1D = SM G.652.D "LWP", 1E = SM premium G.652.D "LWP", 1F = SM G.657.A1, 62 = 62.5 μm multimode "OM1", 53 = 50 μm multimode "OM3", 55 = 50 μm multimode "OM4". Contact AFL for other fibre types. †† R epresents any fibre-count up to 72 (LMB6 - 12F/Tube). ¥¥ Represents any fibre-count up to 36 (LKB6 - 6F/Tube). ## Represents LSZH sheath colour, BK = Black, BE = Blue, WE = White, YW = Yellow, other colours available upon request. Refer to OSP Cable - Optical Characteristics for further information. LSZH Sheath Moisture Resistant Jelly-Filled Loose Tube Dry Water Blocked Core Optical Fibre Central Strength Member
Features:
- Drycore construction resulting in less mess and time lost for fibre breakouts
- LSZH Sheath minimizes flammability content.
Applications:
- Ideal for short & long-haul backbone applications.
- Point-to-Point drop cable for limited duct space.
- Indoor free draining duct & conduit.
Stranded loose tube cable is ideal for short and long haul backbone applications and can be installed in-duct or direct-buried. The water blocked, dry cable core stranded design suits point-point and point-multipoint fibre installations where spur cables are spliced from the backbone. Whilst the Nylon is UV stabilised, AFL recommends the use of an additional sacrificial black PE sheath where the cable will be directly exposed to UV rays.
The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with a LSZH Jacket. Surface printing includes length marking at one metre intervals.
