AFL’s FRE® Cable Trays are designed to make it easy to manage and identify patchcords within a data rack.
588b04809d0f4fa38ec51a382f4fbf9b
© 2022, AFL, all rights reserved. PP-2-00357, Revision 3, 8.2.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Fiber Management Switchblade is an innovative fiber containment vault with a folding design that reduces shipping cost, storage space footprint and increases productivity and speed to market. The flared design maintains a best-in-class strength to weight ratio – minimizing the effects of frost heave, while optimizing internal volume. When combined with other AFL products, the Switchblade FCV-2 can comfortably hold 3,456F of spliced fibers using the Apex ® X-2 and SWR cable, or multiple TITAN RTD ® Multiport Terminals on a mounting bracket. Switchblade ® Fiber Containment Vault Features • Folding design reduces shipping cost and storage space footprint • Lowest weight in category, size and classification • High strength to weight ratio • Flared wall design minimizes frost heave and optimizes internal volume • Non-conductive and non-corrosive • ANSI/SCTE 77 Tier 15 rating lid options • Made in the USA Ordering Information KIT PART NUMBERS DESCRIPTION FCV-2-B-15 Switchblade Fiber Containment Vault Kit Base, No Extension, T15 Lid 24" W x 36" L x 26"D FCV-2-E-15 Switchblade Fiber Containment Vault Kit Base, Extension, T15 Lid 24" W x 36" L x 34"D FCV-2-E-XX Switchblade Fiber Containment Vault Kit Base, Extension, No Lid 24" W x 36" L x 34"D COMPONENT PART NUMBERS DESCRIPTION FCV-2-B-XX Switchblade Fiber Containment Vault Base 24"W x 36"L x 26"D FCV-EXT-2-1 Switchblade Fiber Containment Vault Extension 24" W x 36" L x 8" D FCV-LID-2-15 Switchblade Fiber Containment Vault Tier 15 Lid 24" W x 36" L Specifications PARAMETER DESCRIPTION Dimensions (External) Top: 28" W x 38" L x 26" D (34" w/ext) Bottom (Flared): 34" W x 44" L x 26" D (34" w/ext) Dimensions (Internal) Top: 24" W x 34" L x 24" D (32" w/ ext) Bottom (Flared): 31" W x 41" L x 24" D (32" w/ext) Dimensions (Folded) 6" W x 62" D x 26" H 6" W x 62" D x 34" H including Extension Weight – lbs (kg) Base: 66 lbs (30 kg) Extension: 26 lbs (11.8 kg) Tier 15 Lid: 48 lbs (21.3 kg) Qualifications GOVERNING BODY STANDARD CODE ANSI SCTE 77 2017 Test Rating – lbf (kN) Tier 15: 22,500 lbf (100 kN)
© 2022, AFL, all rights reserved. PP-2-00357, Revision 3, 8.2.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Fiber Management The collapsible design of Switchblade fiber containment vaults delivers unmatched transportation and storage space efficiency when compared to traditional vaults. Freight Cost Comparison Standard 53-ft trucks can transport a total of 200 Switchblade fiber containment vaults on a full truck load (FTL). By comparison, an FTL of traditional vaults is maxed at approximately 50-100 total vaults. Utilizing fewer trucks to deliver more equipment in less deliveries contributes to increased project profitability. Fewer trucks also consume less fuel resulting in positive environmental and sustainability impacts. Switchblade ® Fiber Containment Vault VAULT TYPE WITH T15 LID FTL DELIVERY QTY MAX. VAULTS PER TRUCK NO. OF FTL 53' TRUCKS EST. WEIGHT (LBS) PER TRUCK EST. FREIGHT PER VAULT AFL Switchblade 24"x36"x26" 600 200 3 22,800 $25.00 Traditional HDPE/Composite 24"x36"x24" 600 100 6 13,200 $35.00 Traditional Concrete 24"x36"x24" 600 100 6 32,500 $70.00 VAULT TYPE WITH T15 LID STORAGE AREA STORED VAULT QTY AFL Switchblade 24"x36"x26" 1,275 sq. ft. 600 * Traditional HDPE/Composite 24"x36"x24" 1,275 sq. ft. 300 * Traditional Concrete 24"x36"x24" 1,275 sq. ft. 300 * 200 UNITS MAX Switchblade® Fiber Containment Vaults 50-100 UNITS MAX Standard Handholes up to 3-4X More Vaults Shipped Inventory and Storage Space Savings Switchblade palletized loads are up to 60% lower in height (26”) versus typical vault pallets (72”) allowing more pallets to be stacked for significant storage space and cost savings. * Based on maximum stacked pallet height of 78"
Features:
- Only needs two screws for quick mounting to enclosure or rails
- Easily removable front labelling strips for better access to patchcords (except low profile tray)
- Fibre management clips at both ends for bundling patchcords (except low profile tray)
- Slotted openings on tray for better access and vertical patching between enclosures (low profile tray only)
Applications:
- Managing patchcords
- Identifying patchcord connections

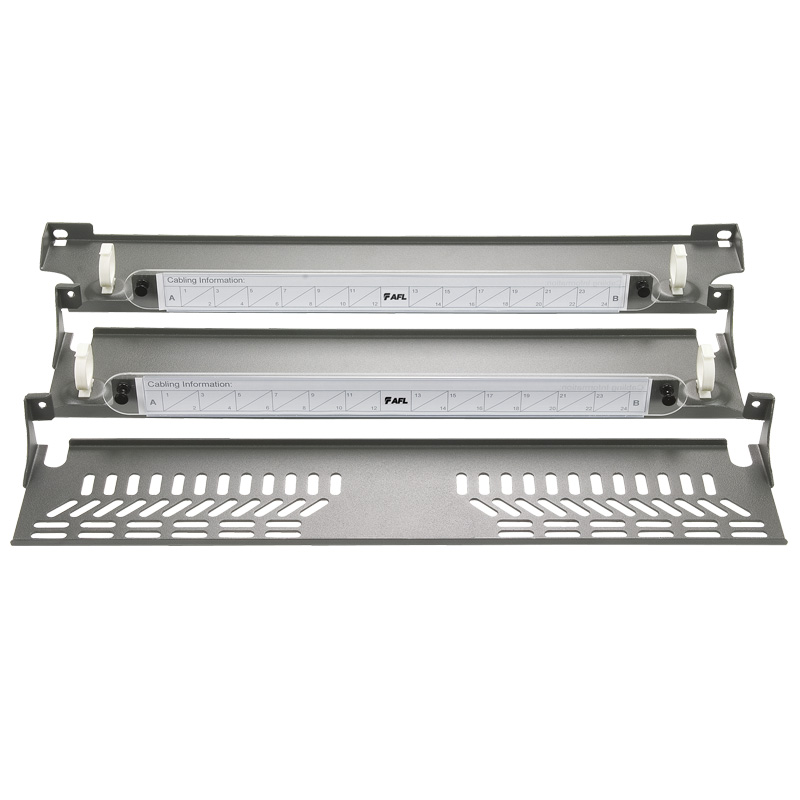

AFL's FRE Cable Trays are 1RU in size and, depending on type, can be mounted to the front of any FRE enclosure or directly to 19” rails. There are 3 types of cable trays available to suit different applications.
SC DuplexLC Quad 6 Port Vertical Panel Angled Universal,SC Multimode Duplex Adapter Beige,SC Multimode OM3 Duplex Adapter Aqua,SC Multimode Simplex Adapter Beige,SCAPC Singlemode Duplex Adapter Green,SCAPC Singlemode Simplex Adapter Green,SCLC Duplex 12 Port Panel 1 12DP Flat,SCLC Duplex 12 Port Panel 1 12HP Angled Left or Right,SCLC Duplex 12 Port Panel 1 12VP Angled Left or Right,SCLC Duplex 12 Port Panel 13 24DP Flat,SCLC Duplex 12 Port Vertical Panel Angled Universal,SCLC Duplex 6 Port Panel 1 6HP Angled Left or Right,SCLC Duplex 6 Port Panel 1 6HP Flat,SCLC Duplex 6 Port Vertical Panel Angled Universal
1820
Close
FRE® Cable Trays
Features:
- Only needs two screws for quick mounting to enclosure or rails
- Easily removable front labelling strips for better access to patchcords (except low profile tray)
- Fibre management clips at both ends for bundling patchcords (except low profile tray)
- Slotted openings on tray for better access and vertical patching between enclosures (low profile tray only)
Applications:
- Managing patchcords
- Identifying patchcord connections
PRODUCT DESCRIPTION
AFL's FRE Cable Trays are 1RU in size and, depending on type, can be mounted to the front of any FRE enclosure or directly to 19” rails. There are 3 types of cable trays available to suit different applications.
