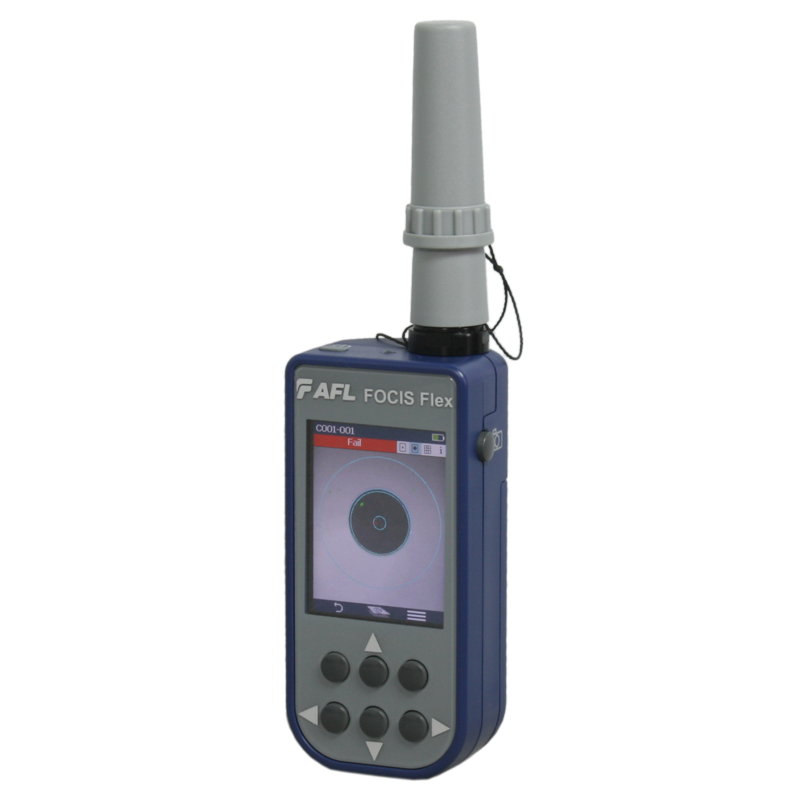

FOCIS Flex Fibre Optic Connector Inspection System

FOCIS Flex Fibre Optic Connector Inspection System

Features:

  • 1-button to auto-focus, center, capture, analyze, and save
  • IEC, IPC, and user-defined pass/fail analysis
  • Untethered, compact, hand-held inspection
  • Use independently or pair with OTDR

Applications:

  • Inspect connectors on patch cords or in bulkhead adapters
  • Optical network installation, troubleshooting, and maintenance
  • Inspect MPO/MTP multi-fiber connectors
  • Assure critical fiber infrastructure performs properly
PRODUCT DESCRIPTION
FOCIS Flex makes connector inspection simple, fast, and convenient. With the press of a single button, FOCIS Flex auto-focuses, captures and centers the end-face image, applies Pass/Fail rules, displays image and Pass/Fail results, saves results internally and/or wirelessly transfers data to a paired FlexScan OTDR or a smart device. It is fast, small, and easy to use to enable 100% connector inspection.

Independent, untethered operation: With rechargeable battery and integrated display, FOCIS Flex can be used independently without requiring an external OTDR or display unit.

Optional pairing with FlexScan OTDR or smart devices: Captured images and Pass/Fail results can be immediately displayed and easily saved on either paired FlexScan OTDR or a smart device equipped with the AFL’s free FOCIS Flex App. This capability enables inspection results to be included in reporting and archiving.

Save results internally or externally: FOCIS Flex internally stores up to 10,000 results using file-naming capabilities similar to those of the FlexScan OTDR. A micro-USB port supports fast upload of internally stored results to PC and ensures your FOCIS Flex software can be updated to the latest features and supported languages.

Wide range of adapter tips: Interchangeable adapter tips support connector inspection for a wide range of both single-fiber and multifiber patch cords and bulkhead-mounted connectors having either PC or APC polished end-faces.

Bundled kits for significant savings: FOCIS Flex is available in kits that include a Basic license for the FlexReporter Software Suite, user-selected adapter tips and cleaning supplies, and a soft carry case.

Easy reporting and archiving: Included FlexReporter-Basic software suite works with AFL Test and Inspection instruments to provide a simple-to-use, high performance cloud enabled reporting platform. FlexReporter combines FlexApp, a mobile App that wirelessly transfers test results to FlexReporter-Cloud from the field with FlexReports, a fast, comprehensive, 3-step PC software reporting solution. The FlexReporter software suite was developed to make the complicated task of reporting faster, simpler, and easy-to-use.


Ordering Information

 DESCRIPTION  AFL NO.
 FOCIS Flex Kit, soft carry case/holster, USB cable, AC charger, FlexReports-Basic software with 60-day reporting trial, reference guide, no tips  FOCIS-FLX-P4XN
 FOCIS Flex Kit, soft carry case/holster, USB cable, AC charger, FlexReports-Basic software with 60-day reporting trial, reference guide, 2 user-selected UPC adapter tips (ferrule and bulkhead), user-selected One-   Click cleaner  FOCIS-FLX-P4XU
 FOCIS Flex Kit, soft carry case/holster, USB cable, AC charger, FlexReports-Basic software with 60-day reporting trial, reference guide, 2 user-selected APC adapter tips (ferrule and bulkhead), user-selected One-   Click cleaner  FOCIS-FLX-P4XA
 FOCIS Flex Kit, soft carry case/holster, USB cable, AC charger, FlexReports-Basic software with 60-day reporting trial, reference guide, user-selected UPC adapter tips (ferrule and bulkhead), 2 user-selected APC   adapter tips (ferrule and bulkhead), user-selected One-Click cleaner   FOCIS-FLX-P4XUA

FlexScan OTDR PRO and BIPM Kits with FOCIS Flex

PRO Kits include the following items:
  • FlexScan with accessories (AC charger, carry strap, SC/2.5 mm connector adapters, FlexReports-Basic software with 60-day reporting trial, carry case)
  • FOCIS Flex Fiber Optic Connector Inspection System with accessories (AC charger, USB cable, soft carry case/holster)
  • Two user-selected adapter tips and one user-selected One-Click Cleaner
  • 150 m Fiber Ring (launch cable) with user-specified connectors

Complete kits expand on PRO Kits by adding bend insensitive fiber identifier with optional power meter (OFI-BIPM).

See FlexScan data sheet for FlexScan PRO and Complete Kit ordering information.
