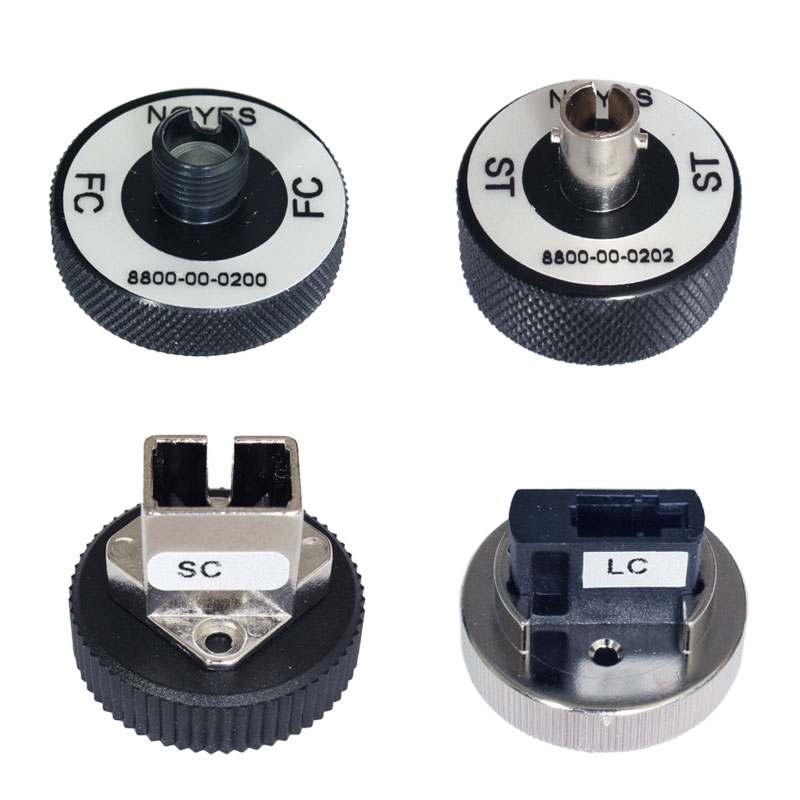

Power Meter Connector Adapters
Power Meter Adapter Caps
|
Part Number |
Description |
|
8800-00-0214 |
2.5 mm Universal (accepts FC, SC, and ST ferrules) |
|
8800-00-0224 |
1.25 mm Universal (accepts LC and MU ferrules) |
|
8800-00-0200 |
FC |
|
8800-00-0209 |
SC |
|
8800-00-0202 |
ST® |
|
8800-00-0225 |
LC simplex |
|
8800-00-0221 |
E-2000 |
|
8800-00-0226 |
MU simplex |
|
8800-00-0219 |
2.5 mm open Universal. Accepts SC duplex, OptiTap connector for measuring optical power. |
|
8800-00-0230 |
MT-RJ (A side only). When used for loss testing, “A side only” adapter verifies system polarity |
|
8800-00-0231 |
MT-RJ (A side or B side) |
|
8800-00-0203 |
SMA |
|
8800-00-0201 |
D4 |
|
8800-00-0204 |
Biconic |
|
8800-00-0210 |
ESCON® |
|
8800-00-0205 |
FDDI (for OPM ports only!) |
|
8800-00-0211 |
DIN 47256 |
|
8800-00-0212 |
Radiall PFO/VFO Adapters for Plastic Optical Fiber (POF) |
|
8800-00-0223 |
1000 mm bare fiber (plastic) |
|
8800-00-0271PR |
HP-HFBR-45XX POF Universal |
Notes:
- For images of adapters refer to Test Port Adapters Reference Guide (PDF) available under Related Documents tab.
- ESCON is a registered trademark of IBM
- ST is a registered trademark of Lucent Technologies
