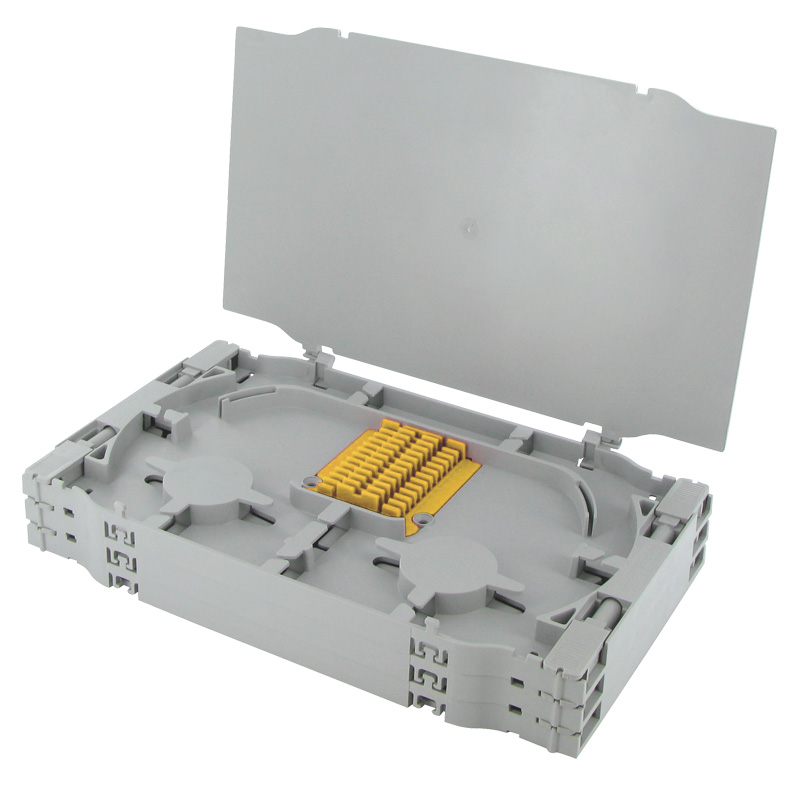

Splice Cassettes, often called organisers or splice trays, are designed to house and protect your splice protectors and manage the incoming and outgoing fibres.
cbf21e3e92754afa87679b30f441e0cb
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 1 © 2002-2023, AFL, all rights reserved. 0077, R evision 7 , 02.10.23 Specifications are subject to change without notice. Fibre Optic Splice Cassette/Tray AFL’s range of splice cassettes also referred to as splice trays can house to up 24 splices per cassette and can be hinged together to house a maximum of 288 splices. They provide excellent fibre protection and fibre management to incoming and outgoing fibres. Slotted fibre retaining clips and internal fibre management spools ensures fibres can be safely terminated and housed without exceeding the minimum bend radius. These splice cassettes are proudly designed, manufactured and assembled in Australia. Features and Benefits Wide fibre channels that allow a total of 24 x 1.5 m of 900 μm fibres. This provides greater flexibility when splicing. 2 x 30 mm columns for reversing the fibre direction and excess fibre storage Spring loaded clamps maintain a constant force on incoming and outgoing fibres. Dark fibre storage areas allow easy access High density splice comb allowing double stacking Hinge allows cassettes to be stacked for easy access
Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Enclosures and Racks 2 © 2002-2023, AFL, all rights reserved. 0077, R evision 7 , 02.10.23 Specifications are subject to change without notice. Fibre Optic Splice Cassette/Tray Technical Specifications FEATURE LARGE SMALL Max no. of splices 24 12 Dimensions (mm) (L) x (W) x (H1/H2/H3)* 200 x 125 x 9.9/4.6/14.5* 115 x 115 x 9.9/4.6/14.5* RoHS compliant Yes as per 2011/65/EC directive Material PC/ABS (Cassette and lid) POM (splice comb) Stainless steel (springs) Flame retardant classification UL94-V-0 Kit contents include Splice cassette, hinged lid, double stack splice comb, splice protectors 1 , cable ties and mounting screws 2 Recommended splice protectors 1 SPLPROT-HS-2.5/62 (24 per cassette) SPLPROT-HS-2.5/45 (12 per cassette) Mounting screws 2 M2 x 6 mm pan head (4 per kit) M3 x 12 mm countersunk (2 per kit) * H1 = Increment height of cassette H2 = Height of lid H3 = Stack height including hinge & lid Ordering Information PART NUMBER DESCRIPTION CASSETTE QUANTITY MINIMUM RECOMMENDED CLEARANCE ( mm ) SPLCASS-LSH-HD-12/24K Large Splice Cassette Kit Max. 24 Splices 1 14.5 SPLCASS-LSH-HD-24/48K Large Splice Cassette Kit Max. 48 Splices 2 24.5 SPLCASS-LSH-HD-36/72K Large Splice Cassette Kit Max. 72 Splices 3 34.5 SPLCASS-LSH-HD-48/96K Large Splice Cassette Kit Max. 96 Splices 4 44.5 SPLCASS-LSH-HD-60/120K Large Splice Cassette Kit Max. 120 Splices 5 54.5 SPLCASS-LSH-HD-72/144K Large Splice Cassette Kit Max. 144 Splices 6 64.5 SPLCASS-LSH-HD-84/168K Large Splice Cassette Kit Max. 168 Splices 7 74.5 SPLCASS-LSH-HD-96/192K Large Splice Cassette Kit Max. 192 Splices 8 84.5 SPLCASS-LSH-HD-108/216K Large Splice Cassette Kit Max. 216 Splices 9 94.5 SPLCASS-LSH-HD-120/240K Large Splice Cassette Kit Max. 240 Splices 10 104.5 SPLCASS-LSH-HD-132/264K Large Splice Cassette Kit Max. 264 Splices 11 114.5 SPLCASS-LSH-HD-144/288K Large Splice Cassette Kit Max. 288 Splices 12 124.5 SPLCASS-SSH-HD-6/12K Small Splice Cassette Kit Max. 12 Splices 1 14.5 SPLCASS-SSH-HD-12/24K Small Splice Cassette Kit Max. 24 Splices 2 24.5 SPLCASS-SSH-HD-18/36K Small Splice Cassette Kit Max. 36 Splices 3 34.5 SPLCASS-SSH-HD-24/48K Small Splice Cassette Kit Max. 48 Splices 4 44.5 Small splice cassette kit with accessories Large splice cassette kit with accessories Rack mount enclosure with large splice cassette kit installed
Features:
- Packaged in convenient installation kits including screws, cable ties, splice protectors and instructions
- Kits are supplied with lids to minimise accidental damage to fibres and to keep out dust particles
- Spring loaded rubber clamps on the entry/exit points ensure secure fibre clamping with minimal pressure points
- Cable tie holes for additional fixing for all fibre tubes
- High-density combs allow for 24 splices in large cassette and 12 splices in small cassette
- Provision for storing unterminated incoming fibres
- Two fibre spools for storing excess fibre and redirecting fibre around the cassette
Applications:
- Fusion splicing of fibre optic cables in all wall or rackmounted enclosures
AFL splice cassettes come in two different sizes and can be stacked or hinged for easy access. These cassettes are directly mounted to the base of an enclosure and do not require any mounting brackets. They are generally used in wall and rack mount fibre enclosures.
