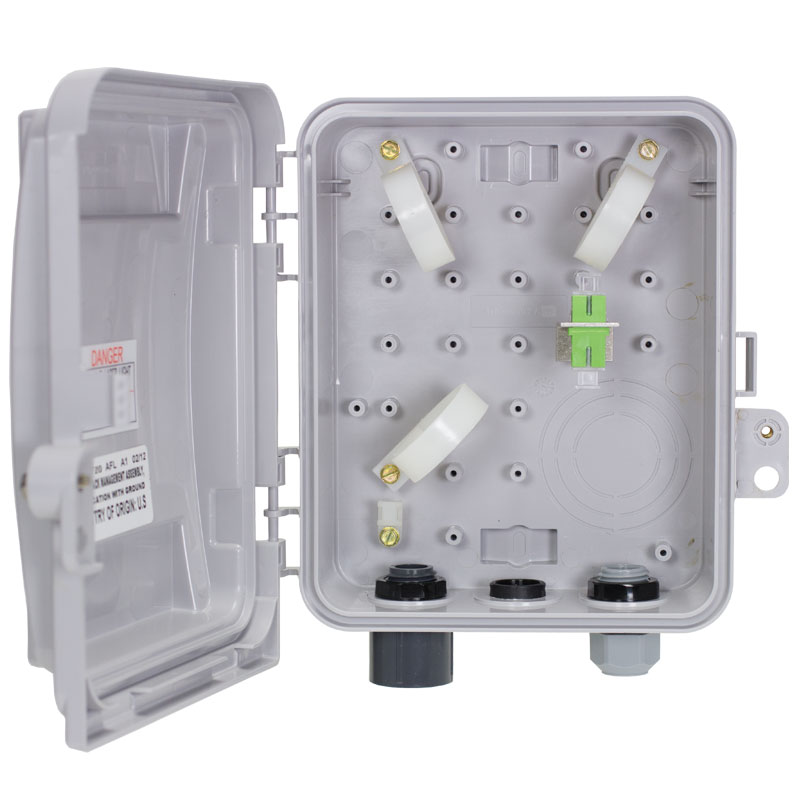

La serie OptiNID® OPN-300 son cierres ópticos de demarcación diseñados para su uso en entornos interiores o exteriores.
95f12aefb36d46b08f12bbce20b2d75c
© 2012, AFL, all rights reserved. PP-2-00132, Revision 5, 8.31.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Fiber Demarcation OPN-327SS OPN-350SS OptiNID ® 300 Series Optical Demarcation Slack Storage Closure The OptiNID (OPN) 300 series are optical demarcation closures designed for use in either indoor or outdoor environments. Smaller to suit FTTH demarcation applications, the OPN-327SS and the OPN-350SS are equipped to handle up to two adapters each. Configured with routing rings positioned to accommodate safe slack storage, the OPN-300 series closures can be either wall or pole-mounted for ease of use and accessibility. Specifications PARAMETER VALUES Dielectric Strength Minimum 2500 Vrms for 1 minute Impact Test -40°F (-40°C), 5 ft·lbs on all external surfaces Drop Test -40°F (-40°C), 5 ft onto concrete surface four times Rain 24 hours at 10 psi UV Resistance (Days Exposed) 60 per ASTM-G26-84 Salt Fog (Days Exposed) 60 per ASTM-BLL7-90 Flammability UL94-5V Chemical Resistance 30 Days at 100°F and 95% RH Resists chipping and/or cracking when subject to house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide Material UL ® listed flame retardant thermoplastic alloy Dimensions (H x W x D) in. (cm) 6.3 x 7.8 x 2.0 (15.7 x 19.7 x 5.0) Cable Entrance in. (cm) diameter - Input 1 x 3/4” NPT (1.130”), 2 x 1/2” NPT (0.875”) Covers Standard, molded-in snap finger and "F" termination Operating Temperature Range – °F (°C) -40 to 140 (-40 to 60) Features • Weather-resistant thermoplastic alloy • Self-latching, hinged cover design allows easy access without loose parts • Routing rings positioned for safe slack storage • Capacity for up to two adapters • Ground stud provided in the OPN-350SS Ordering Information DESCRIPTION AFL NO. BASE PRODUCT 1,2 OptiNID OPN-327SS Slack Storage Box, 1 x SC/APC Adapter DM000720 OptiNID OPN-350SS Slack Storage Box, 1 x SC/APC Adapter, Splice Chip, Ground Stud DM000795 ACCESSORIES 3 Heyco M3234 Compression Fitting, 18 mm to 11 mm Grip (includes 4) – Left Port Only DM001171 Notes: 1. All standard OPN-300 Series configurations come equipped with a ¾" NPT fitting, rubber grommet and Heyco M4519 compression fitting. 2. Contact AFL customer service for additional configurations. 3. See OptiNID Accessory Page for additional kits.
Características:
- Aleación termoplástica resistente a la intemperie
- El diseño de la cubierta con bisagras de cierre automático permite un fácil acceso sin piezas sueltas
- Anillos de enrutamiento colocados para un almacenamiento seguro de la holgura
- Capacidad para hasta dos adaptadores
- Perno de conexión a tierra incluido en la OPN-350SS
- Accesorio de conducto de 1/2" o 3/4" NPT, accesorios de cable de compresión o puertos de entrada con ojal
- Ubicaciones disponibles en la cubierta frontal para logotipos personalizados
