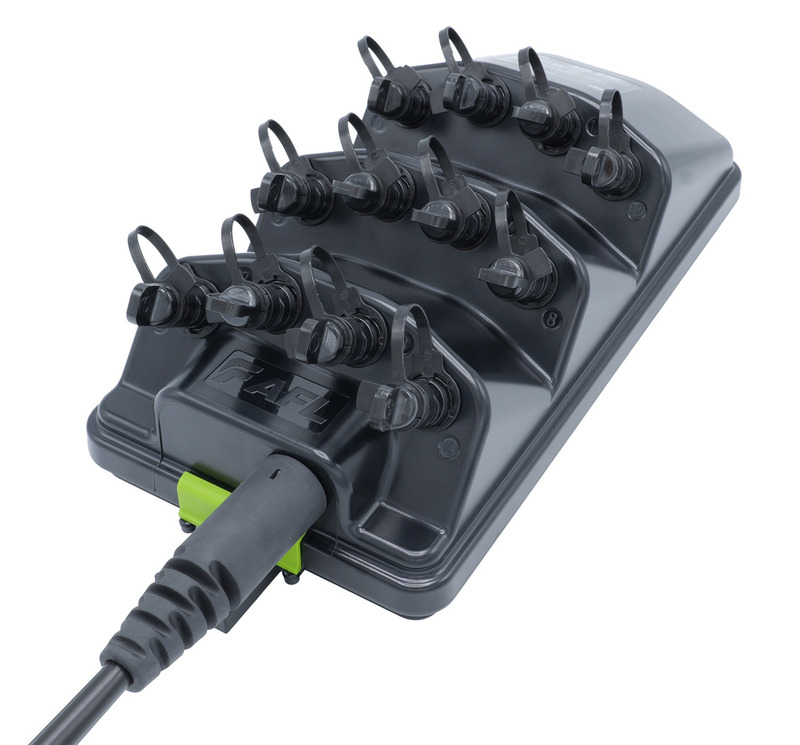

AFL RTD™ Terminal – Powered by Prodigy®
Features
- Reduced size ~40% smaller than full size hardened fiber optic connectors
- Output port range from 2–12 hardened connector ports
- Straight Through/P2P terminals offered with up to 12 ports
- Distributed Split terminals offered with up to 8 ports supporting 1x2, 1x4, and 1x8 optical splitters
- Color coded placards for easy identification
– Point to Point - Green Placard
– 1 x n Splitter - Blue Placard - Available with ADSS, Dielectric Flat Drop, Toneable Flat Drop, and Armored Round Drop cable
- Cable lengths offered up to 5000FT for Flat drop cables and 3400FT for ADSS cables
- Designed and tested to IEC-61573, category G (outdoor ground level environment)
- Versatile mounting options including, Pole, Pedestal, Strand, and Handhole/vault
- Made under license from Commscope utilizing the Prodigy® Hardened SC/APC adapter
- Patent Information: www.AFLglobal.com/patents
Applications
- Below grade vault
- Pole mount, pedestal mount, wall mount and aerial mount
PRODUCT DESCRIPTION
The AFL RTD Terminal powered by Prodigy is the latest offering from AFL to support FTTx deployments. This product features the reduced size Prodigy hardened fiber optic adapters with a large selection of cable types and lengths. The AFL RTD Terminals feature an industry exclusive ADSS cable offering to allow for span lengths up to 3x industry standard flat drop cables.
The AFL RTD features conventional point to point fiber terminations as well as optical splitter versions to support a wide range of system designs. The AFL RTD is factory sealed to withstand the harsh outside plant application environments.
