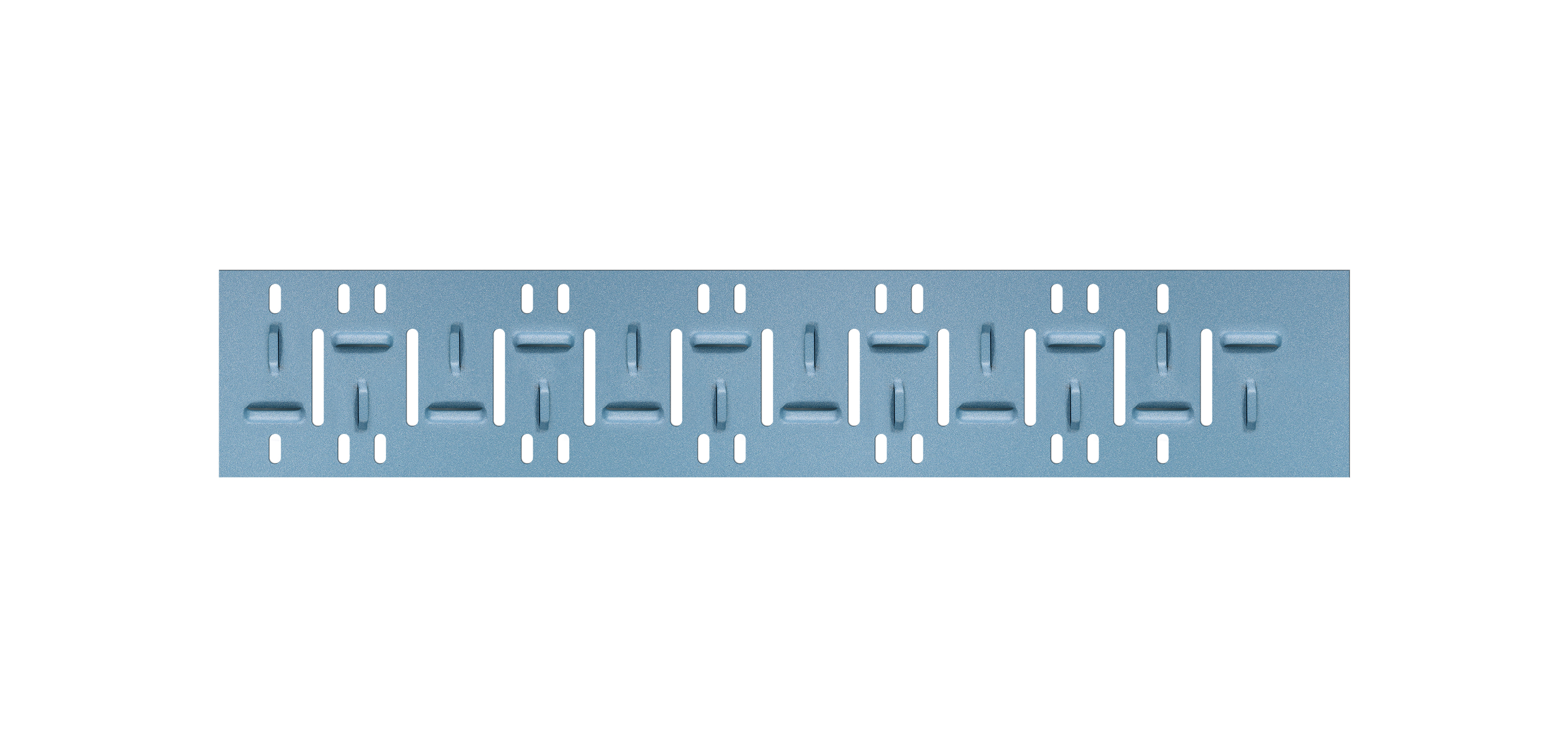

For applications that require cable mounting on the rack itself, the Denali OCM Bracket is designed to efficiently accommodate up to 12 Denali trunk cable assemblies.
ebbdd8f322ef48d689dc6d2049d07732
1 AFLglobal.com 1 ( 8 0 0 ) 8 6 6 -7385 © 2025, AFL, all rights reserved. PP-1-00414, Revision 0 , 6 . 6 . 2025 Speci cations are subject to change w ithout notice. Optical Connectivity 1 Features • Mounts directly to 19” rack rails above or below the DENALI Housing • Supports up to 12 Outback Clip- mounted trunk cables • Provides strain relief and bend radius control before cable entry into the housing • Includes rack tap screws for easy and secure installation • Rugged steel construction for durability DENALI Outback Clip Management (OCM) Bracket provides an intermediate mounting point for high-fiber-count trunk cables before connecting to the rear of DENALI fiber housings, ensuring clean, secure, and strain-relieved cable routing. Designed for use with AFL’s Outback Clip system, available on DENALI trunk cable assemblies. The bracket installs on standard 19” racks – typically 3 to 5 rack units (RUs) above or below the housing – accommodating up to 12 trunk cables, offering structured, high-density cable management in space-constrained environments. By securing cables to the bracket instead of directly to the housing, the OCM Bracket reduces strain, maintains bend radius, and improves overall cable alignment, helping protect network performance during installation and operation. Two clip styles support different mounting preferences: • Hook and Loop – attaches using Velcro ® hook and loop fastening • Rock and Lock – secures to the housing with a lever mechanism This bracket is ideal for installers looking to improve trunk cable routing while ensuring consistent, high-density cable management in demanding network environments. Applications • AI/ML • Hyperscale • Colocation • Campus Networks • Central Office and Office Backbone DENALI ™ Outback Clip Management (OCM) Bracket Ordering Information Category Description AFL No. DENALI Accessories DENALI, Outback Mounting Clip Bracket, 12 Positions OCM-12 Integrated Mounting of "Outback Clip" on DENALI trunk cable assemblies provide simple snap and push release tabs Qualifications Governing Body Standard Code RoHS Compliant
Características:
- Acomoda hasta 12 Clips Outback/Cables de cajón
- Construcción robusta de acero
- Incluye tornillos de rosca para rack
Aplicaciones:
- Centros de datos
- Oficinas centrales
- Cabeceras
- Redes de cableado estructurado
Los conjuntos de cables troncales ASCEND proporcionan una solución plug-and-play de alto rendimiento y vienen equipados con un clip de montaje integrado o con el clip Outback "." Esta pinza Outback elimina la necesidad de abrazaderas de cable adicionales y posiciona de forma segura el cable entrante al tiempo que elimina la tensión no deseada durante la instalación.
Los cables troncales con Clips Outback suelen montarse directamente en la parte trasera de las carcasas ASCEND; sin embargo, para las aplicaciones que requieren el montaje de los cables en el propio bastidor, el soporte ASCEND OCM está diseñado para alojar de forma eficiente hasta 12 conjuntos de cables troncales ASCEND.
