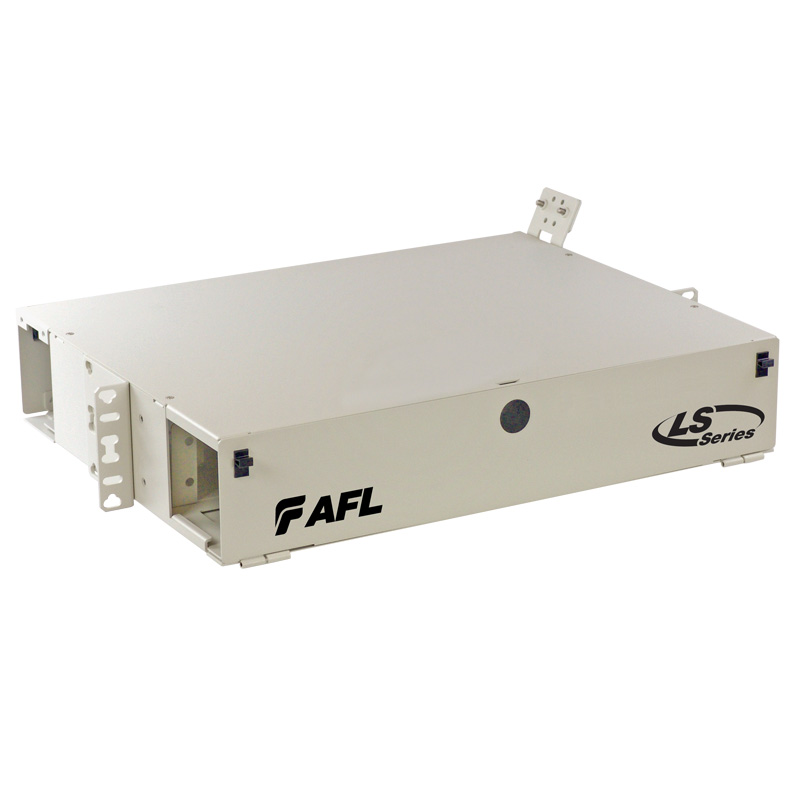

1 AFLglobal.com 1 (800) 866-7385 © 2008, AFL, all rights reserved. PP-2-00070, Revision 7, 9.22.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 1 The AFL 2RU Fiber Termination Patch/Splice Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 72 fibers is desired. The panel design is based on a 2 rack unit height and is provisioned with three LGX ® 118 compatible mounting positions that can accommodate adapter plates, XFM optical cassettes, passive optical modules or any combination therein. Standard 2RU Fiber Termination Patch Panels are available empty for complete field configuration, half loaded with adapter plates, or stubbed with a factory installed circular premise cable (CPC) or loose tube cable assembly. Standard 2RU Fiber Patch and Splice Panels are available empty for complete field configuration, half loaded with adapter plates and splice trays, or loaded with pigtails, adapter plates and splice trays. Features • Fits comfortably into new and existing interconnect, cross- connect, customer premise, and co-location environments • Most common connector styles and types available • Compatible with industry standard equipment frames • Modular design • Slide-out tray with relief cut-outs for simplified connector access • Optional splice tray kit for on site conversion to patch and splice pane • Optional front door key lock for heightened protection of internal components LightLink LANSystem 2RU Fiber Termination Patch/Splice Panel Dimensions Depth (A) in inches Width (B) in inches Height(C) in inches Rack Units Capacity Unloaded Weight 13.51 17.00 3.50 2 36 / 72* 5 lbs. Specifications • Designed around Telcordia ® GR- 63NEBS • Aluminum construction per ASTMB209 • Durable textured powder coat finish available in black or white • Universal 19/23" EIA/TIA rack com - patibility • Standard density: up to 36 fiber • High density: up to 72 fiber • LGX 118 compatible • Standard cable stub location right rear exiting upward • 2RU Patch and Splice Panel holds up to four splice tray kits Applications • Telecommunications closets • Data Centers • Customer Premise • LAN / WAN Networks • Central Offices / Headends • Hubs / Cabinets / Remote Terminals • FTTH / FTTB Networks LGX is a registered trademark of Furukawa Electric North America, Inc. Telcordia is a registered trademark of Telcordia Technologies, Inc. * 72 fiber capacity not available in Patch and Splice configuration. 2 AFLglobal.com 1 (800) 866-7385 © 2008, AFL, all rights reserved. PP-2-00070, Revision 7, 9.22.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 2 LightLink LANSystem 2RU Fiber Termination Patch/Splice Panel Accessories Description AFL No. Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04 (1 splice tray) FM002827-1 Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04 (2 splice trays) FM002827-2 Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04 (3 splice trays) FM002827-3 Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04 (4 splice trays) FM002827-4 Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04, Ribbon (1 splice tray) FM002827-1R Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04, Ribbon (2 splice trays) FM002827-2R Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04, Ribbon (3 splice trays) FM002827-3R Splice Tray Kit: Single Fusion, 12 fiber, 2RU, WME02, WME04, Ribbon (4 splice trays) FM002827-4R Kit, Lock, for CON / CNS Panels FM001318 Ordering Information Configuration AFL No. CON024P—2 RU Patch Panels—24 Fibers—LGX118 EMPTY FM001029 24 PSC adapters (4 Six Packs) 118 LGX (Beige) FM001433 24 UST adapters (4 Six Packs) 118 LGX FM001434 24 PST adapters (4 Six Packs) 118 LGX FM001435 12 UDL (dup) adapters (4 Three Packs) 118 LGX (Blue) FM001441 12 PDL (dup) adapters (4 Three Packs) 118 LGX (Beige) FM001442 24 ASC adapters (4 Six Packs) 118 LGX (Green) FM001439 24 USC adapters (4 Six Packs) 118 LGX (Blue) FM001438 Ordering Information Select the seven digit AFL panel part number, specify the color, and choose the loading character desired. When ordering stubbed (S), enter the cable stub length required in meters. Note: Standard stub is Circular Premise Cable (CPC). FM001433 B S 0010 AFL NO. Color Loading Charactor E = Empty H = Half-loaded with adapters L = Loaded with adapters and pigtails (Patch and Splice only) S = Preterminated with tight buffered CPC cable stub (Riser) (Patch only) R = Preterminated with OSP loose tube cable stub (Patch only) W = White B = Black 0002 = 2 meters 0004 = 4 meters etc. Cable Stub Length (M) Example: Order number for a panel Black in color, loaded with 24 PSC adapters (4 six packs), connectors and a cable stub 10 meters in length. Notes: 1) All MM cable is 62.5 μm unless otherwise specified. 2) When ordering Empty Termination Patch/Splice Panel, accessories are available for field configuration. CNS024P—2U Patch and Splice Panels—24 Fibers—LGX118 EMPTY FM001414 24 PSC adapters (4 Six Packs) 118 LGX, Splice tray FM001411 24 UST adapters (4 Six Packs) 118 LGX, Splice tray FM001412 24 PST adapters (4 Six Packs) 118 LGX, Splice tray FM001413 12 UDL (dup) adapters (4 three Packs)118 LGX , Splice tray FM001419 12 PDL (dup) adapters (4 three Packs)118 LGX , Splice tray FM001420 24 ASC adapters (4 Six Packs) 118 LGX, Splice tray FM001418 24 USC adapters (4 Six Packs) 118 LGX, Splice tray FM001417 Connector/Adapter Key Type Description ASC SC—Angle Polish, Simplex, SM ASF SC—Angle Polish, Duplex, SM PSC SC—Physical Polish, Simplex, MM PSF SC—Physical Polish, Duplex, MM USC SC—Ultra Polish, Simplex, SM USF SC—Ultra Polish, Duplex, SM PST ST—Physical Polish, Simplex, MM UST ST—Ultra Polish, Simplex, SM ADL LC—Angle Polish, Duplex, SM PLC LC—Physical Polish, Simplex, MM PDL LC—Physical Polish, Duplex, MM ULC LC—Ultra Polish, Simplex, SM UDL LC—Ultra Polish, Duplex, SM Qualifications Governing Body Standard Code ASTM ASTMB209 Telcordia GR-63NEBS
