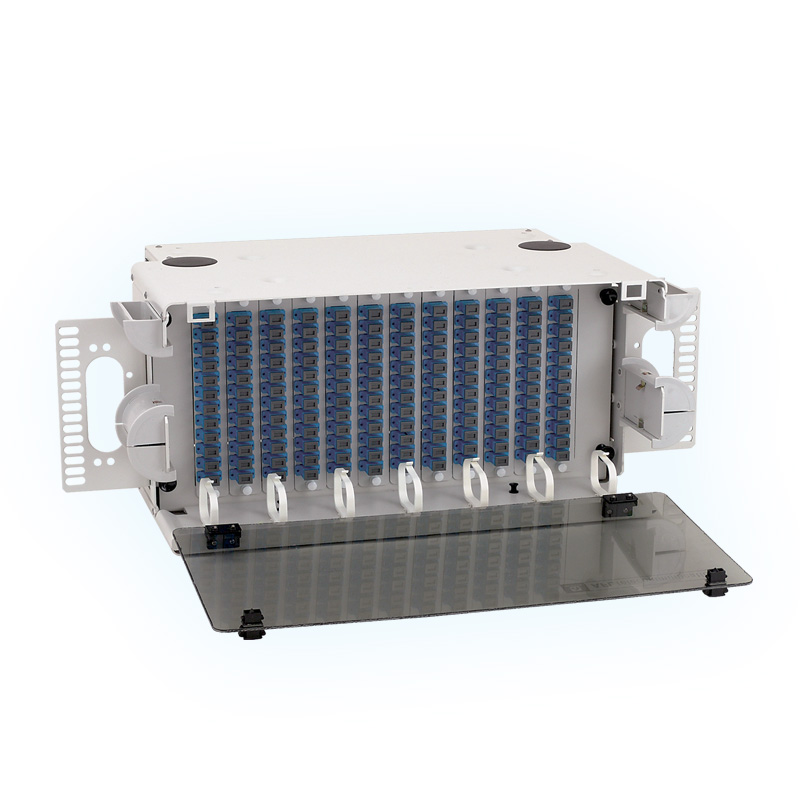

1 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00080,Revision 10, 9.23.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 1 Features • Fits comfortably into new and existing interconnect, cross-connect, customer premise,and co-location environments • Most common connector styles and types available • Compatible with industry standard equipment frames • LGX compatible master plate (170 mm) • Modular design • Provides maximum protection of optical components The AFL 5RU Fiber Termination Patch Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 288 fibers is desired. The panel design is based on a five rack unit height with a master plate that is provisioned with 12 LGX ® 170 compatible mounting positions that can accommodate adapter plates, XFM ® optical cassettes, passive optical modules or any combination therein. Standard 5RU Fiber Termination Patch Panels are available empty for complete field configuration, half loaded with adapter plates, or stubbed with a factory installed circular premise cable (CPC) or loose tube cable assembly. High density panels utilize two 144 fiber stubs for 288 terminations. Specifications • Telcordia ® GR-63 NEBS Tested • Aluminum construction per ASTMB209 • Durable textured powder coat finish available in black or white • Universal 19/23" EIA/TIA rack compatibility • Standard density: up to 144-fiber • High density: up to 288-fiber • LGX 170 compatible • Standard cable stub location is right rear exiting upward Applications • Telecommunications closets • Data Centers • Customer Premise • LAN/WAN Networks • Central Offices/Headends • Hubs/Cabinets/Remote Terminals • FTTH/FTTB Networks LightLink LANSystem 5RU Fiber Termination Patch Panel Dimensions Depth (A) in inches Width (B) in inches Height (C) in inches Rack Units Fiber Capacity Unloaded Weight Material Gauge 11.00 17.00 8.75 5 144/288 9 lbs. 2.03 mm LGX is a registered trademark of Furukawa Electric North America, Inc. Telcordia is a registered trademark of Telcordia Technologies, Inc. 2 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00080,Revision 10, 9.23.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 2 Ordering Information Configuration AFL No. CON144P – 5RU Patch Panels – 144 Fibers – LGX170 EMPTY C211453 144 PSC adapters (12 Twelve Packs) C211471 144 UST adapters (12 Twelve Packs) C211498 144 PST adapters (12 Twelve Packs) C211507 72 UDL (dup) adapters (12 Six Packs) FM000206 72 PDL (dup) adapters (12 Six Packs) FM000207 144 ASC adapters (12 Twelve Packs) C214009 144 USC adapters (12 Twelve Packs) C214006 72 PSF (dup) adapters (12 Six Packs) FM000208 72 USF (dup) adapters (12 Six Packs) FM000209 72 ASF (dup) adapters (12 Six Packs) FM000210 CON288HD – 5RU High Density Patch Panels (uses two 144 stubs) – LGX170 144 UDL (dup) adapters (12 Twelve Packs) C211511 144 ADL (dup) adapters (12 Twelve Packs) FM000346 144 PSF (dup) adapters (12 Twelve Packs) C211475 144 USF (dup) adapters (12 Twelve Packs) FM000212 144 ASF (dup) adapters (12 Twelve Packs) FM000213 LightLink LANSystem 5RU Fiber Termination Patch Panel Ordering Information Select the seven digit AFL panel part number, specify the color, and choose the loading character desired. When ordering stubbed (S), enter the cable stub length required in meters. Note: Standard stub is Circular Premise Cable (CPC). C211471 B S 0010 AFL NO. Color Loading Charactor E = Empty H = Half-loaded with adapters S = Preterminated with tight buffered CPC cable stub (Riser) (Patch only) R = Preterminated with OSP loose tube cable stub (Patch only) W = White B = Black 0002 = 2 meters 0004 = 4 meters etc. Cable Stub Length (M) Example: Order number for a panel Black in color, loaded with 144 PSC adapters (12 twelve packs), connectors and a cable stub 10 meters in length. Notes: 1) All MM cable is 62.5 μm unless otherwise specified. 2) When ordering Empty Termination Patch/Splice Panel, accessories are available for field configuration. Connector/Adapter Key Type Description ASC SC – Angle Polish, Simplex, SM ASF SC – Angle Polish, Duplex, SM PSC SC – Physical Polish, Simplex, MM PSF SC – Physical Polish, Duplex, MM USC SC – Ultra Polish, Simplex, SM USF SC – Ultra Polish, Duplex, SM PST ST – Physical Polish, Simplex, MM UST ST – Ultra Polish, Simplex, SM ADL LC – Angle Polish, Duplex, SM PLC LC – Physical Polish, Simplex, MM PDL LC – Physical Polish, Duplex, MM ULC LC – Ultra Polish, Simplex, SM UDL LC – Ultra Polish, Duplex, SM Qualifications Governing Body Standard Code ASTM ASTMB209 Telcordia GR-63NEBS
