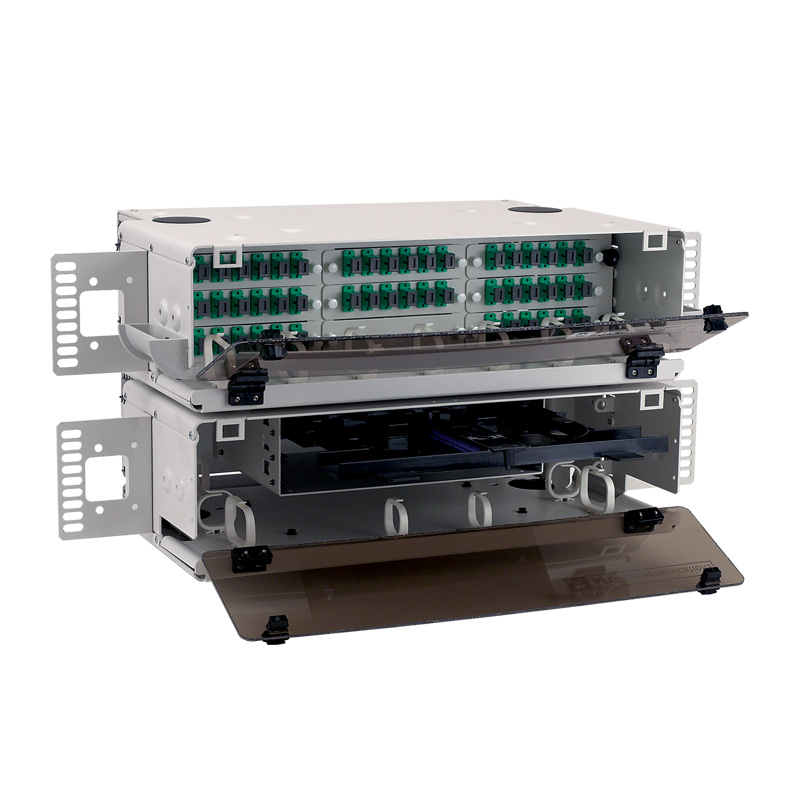

1 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00073,Revision 9, 9.22.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 1 The AFL 6RU Fiber Patch and Splice Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 96 fibers is desired. The two panel design is based on a 6-rack unit height comprised of a 3RU Termination Patch Panel and a 3RU Optical Splice Shelf. The 3RU Termination Patch Panel is provisioned with nine LGX ® 118 compatible mounting positions. The 3RU Optical Splice Shelf utilizes two STF-48 telescoping splice drawers. Standard 6RU Fiber Patch and Splice Panels are available empty for complete field configuration, half loaded with adapter plates and STF-48 telescoping splice trays, or loaded with pigtails, adapter plates and STF-48 telescoping splice trays. LightLink LANSystem 6RU Fiber Patch and Splice Panel Dimensions Depth (A) in Inches Width (B) in Inches Height (C) in Inches Rack Units Fiber Capacity 11.00 17.00 10.5 6 48/96 Features • Fits comfortably into new and existing interconnect, cross-connect, customer premise and co-location environments • Most common connector styles and types available • Compatible with industry standard equipment frames • LGX-compatible master plate (118 mm) • Modular design • Compact and versatile method of organizing splicing and connectivity • Provides maximum protection of optical components Applications • Telecommunications closets • Data Centers • Customer Premise • LAN / WAN Networks • Central Offices / Headends • Hubs / Cabinets / Remote Terminals • FTTH / FTTB Networks Specifications • Designed around Telcordia ® GR-63NEBS • Aluminum construction per ASTMB209 • Durable textured powder coat finish available in black or white • Universal 19/23" EIA/TIA rack compatibility • Standard density: up to 48-fiber • High density: up to 96-fiber • Fiber storage capacity – one meter per spliced fiber (3 mm jacket) • Uses two STF-48 telescoping splice drawers • Two panel package – 3RU patch, 3RU splice • Nine LGX 118 mm positions LGX is a registered trademark of Furukawa Electric North America, Inc. Telcordia is a registered trademark of Telcordia Technologies, Inc. 2 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00073,Revision 9, 9.22.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 2 Empty - Includes master plate, mounting hardware, cable clamp. Unloaded - Includes master plate, adapter plates, adapters, splice drawer (48 & up), hardware, cable clamp. Loaded - Includes master plate, adapter plates, adapters, splice drawer (48 & up), pigtails with connectors, hardware, cable clamp. LightLink LANSystem 6RU Fiber Patch and Splice Panel Example: Order number for a panel Black in color, loaded with, master plate, adapter plates, 48 PSC adapters (8 Six packs), splice drawer (2-48 position), pigtails with connectors, hardware, cable clamp. Ordering Information Select the seven-digit AFL panel part number, specify the color and choose the loading character desired. C211552 B S AFL NO. Color Loading Charactor E = Empty H = Half-loaded with adapters L = Loaded with adapters and pigtails W = White B = Black Accessories Description AFL No. STF-48 Telescoping Splice Drawer 911442-00-00 Configuration Part Numbers Configuration AFL No. CNS048P – 6RU Patch & Splice Panels (1 ea. 3U Patch, 3U Splice) – LGX118 EMPTY C211534 48 PSC adapters (8 Six Packs) Splice Drawer (2-48 position) C211552 48 UST adapters (8 Six Packs) Splice Drawer (2-48 position) C211579 48 PST adapters (8 Six Packs) Splice Drawer (2-48 position) C211588 24 UDL (dup) adapters (8 Three Packs) Splice Drawer (2-48 position) FM000234 24 PDL (dup) adapters (8 Three Packs) Splice Drawer (2-48 position) FM000235 48 ASC adapters (8 Six Packs) Splice Drawer (2-48 position) C210928 48 USC adapters (8 Six Packs) Splice Drawer (2-48 position) C210922 24 PSF (dup) adapters (8 Three Packs) Splice Drawer (2-48 position) FM000236 24 USF (dup) adapters (8 Three Packs) Splice Drawer (2-48 position) FM000237 24 ASF (dup) adapters (8 Three Packs) Splice Drawer (2-48 position) FM000238 CNS096HD – 6U High Density Patch & Splice Panels – LGX118 96 UST adapters (8 Twelve Packs) Splice Drawer 2-48 position) FM000240 96 PST adapters (8 Twelve Packs) Splice Drawer (2-48 position) FM000241 48 UDL (dup) adapters (8 Six Packs) Splice Drawer (2-48 position) C211594 48 PSF (dup) adapters (8 Six Packs) Splice Drawer (2-48 position) C211558 48 PDL (dup) adapters (8 Six Packs) Splice Drawer (2-48 position) C211601 48 USF (dup) adapters (8 Six Packs) Splice Drawer (2-48 position) FM000242 48 ASF (dup) adapters (8 Six Packs) Splice Drawer (2-48 position) FM000243 Notes: 1) All MM cable is 62.5 μm unless otherwise specified. 2) When ordering Empty Termination Patch/Splice Panel, accessories are available for field configuration. Connector/Adapter Key Type Description ASC SC – Angle Polish, Simplex, SM ASF SC – Angle Polish, Duplex, SM PSC SC – Physical Polish, Simplex, MM PSF SC – Physical Polish, Duplex, MM USC SC – Ultra Polish, Simplex, SM USF SC – Ultra Polish, Duplex, SM PST ST – Physical Polish, Simplex, MM UST ST – Ultra Polish, Simplex, SM ADL LC – Angle Polish, Duplex, SM PLC LC – Physical Polish, Simplex, MM PDL LC – Physical Polish, Duplex, MM ULC LC – Ultra Polish, Simplex, SM UDL LC – Ultra Polish, Duplex, SM Qualifications Governing Body Standard Code ASTM ASTMB209 Telcordia GR-63NEBS
