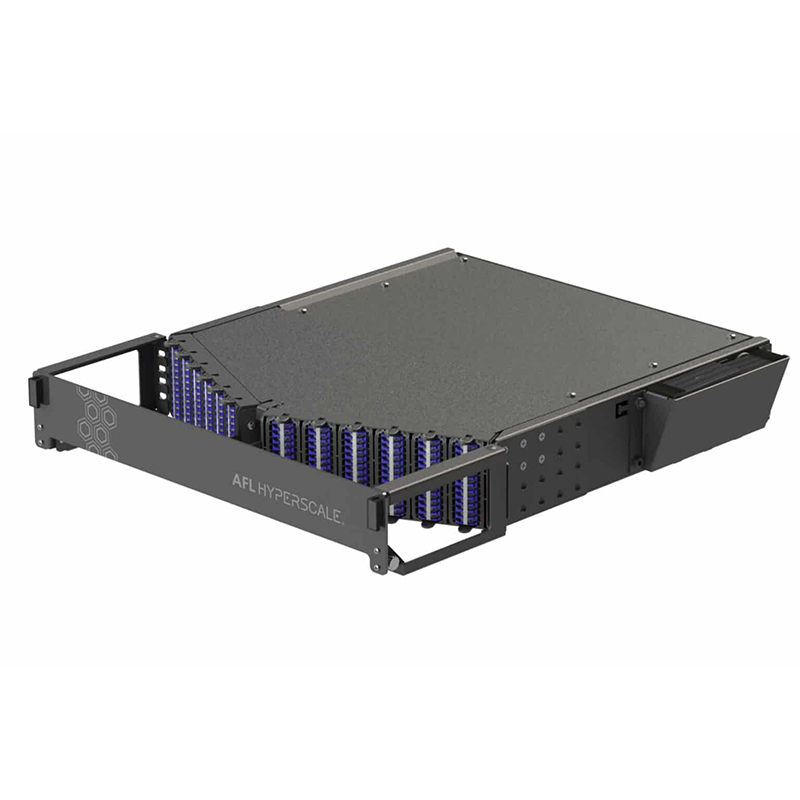

1 AFLglobal.com 1 (800) 866-7385 © 2021, AFL, all rights reserved. PP-2-00340, Revision 2, 10.31.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 1 2RU Front-Access V-Panel (FVP) The 2RU Front-Access V-Panel (FVP) facilitates rapid, cold-aisle, front-access splicing and patching of up to 288 fibers utilizing SpiderWeb Ribbon ® (SWR ® ) Technology to pre-loaded, high-performance SWR LC pigtails. The rack-mountable unit is lightweight and sturdy and easy for one person to install. A slide-out modular drawer is dismounted from the panel so splicing can take place on a workbench at a safe working height. Its V-shaped design provides easy finger access and LC quad shuttered adapters help prevent the ingress of dust or debris while additionally providing laser eye safety. Features • State-of-the-art V-shaped design with a slide-out drawer allows for splicing in an ergonomic, modular, sleek interface • Slide-out drawer pre-loaded with 24F 200 μm SpiderWeb Ribbon LC Pigtails • Ample slack in drawer enables splicing on a workbench at a safe working height as well as multiple re-splices • 2RU 19" rack-mount panels are stackable with the possibility of feeding in cable from the left or right side • Integrated mounting points for cable transitions ensure appropriate management of breakout from cable to splicing area • Accommodates 288F within the slide-out drawer, containing 12 x 24F FVP LC Cassettes • LC quad shuttered adapters help prevent the ingress of dust or debris while also providing laser eye safety • 288F or 2 x 144F SWR cable can be mounted from the left or right side • 6RU option available for the splicing and patching of 864 fibers • Pivoting front and back door can be removed during installation Applications • Hyperscale • Colocation • Data Halls • Main Distribution Areas (MDAs) • Fiber Entrance Facilities Ordering Information Description Application AFL No. 2RU Front Access V Panel Splice Patch BK Premium LC G.657A1 288F (250 μm-pitch Pigtail) 250 μm-pitch version work with SR15E-200 fiber cable F7HAADBPAX-10AM FVP Splice Cassette BK Premium LC SM G.657A1 24F Stub OFNP SWR 250 μm-Pitch MC 4M 250 μm-pitch version work with SR15E-200 fiber cable A7UD24BPAX-14JF-M4 2RU Front Access V Panel Splice Patch BK Premium LC G.657A1 288F (200 μm-pitch Pigtail) 200 μm-pitch version work with SR15E-P200 fiber cable F7HAADBPAX-15AM FVP Splice Cassette BK Premium LC SM G.657A1 24F Stub OFNP SWR 200 μm-Pitch MC 4M 200 μm-pitch version work with SR15E-P200 fiber cable A7UD24BPAX-14JW-M4 2 AFLglobal.com 1 (800) 866-7385 © 2021, AFL, all rights reserved. PP-2-00340, Revision 2, 10.31.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 2 2RU Front-Access V-Panel (FVP) Technical Drawings Specifications Parameter Value Dimensions 482 mm (W) x 88 mm (H) x 559 mm (D) Max Fiber Count (Ribbon Cable) 288 Cable Entry Left or Right Material CR4 Steel, Aluminum Material Thickness 1 mm to 2 mm Material Coating Powder Weight 7.5 kg Color Black Operating Temperature -20°C to +50°C Qualifications Governing Body Standard Code RoHS Compliant Reach Compliant SVHC Compliant 441 mm 480 mm 88 mm (2RU) 159 mm 400 mm 194 mm 41 mm
