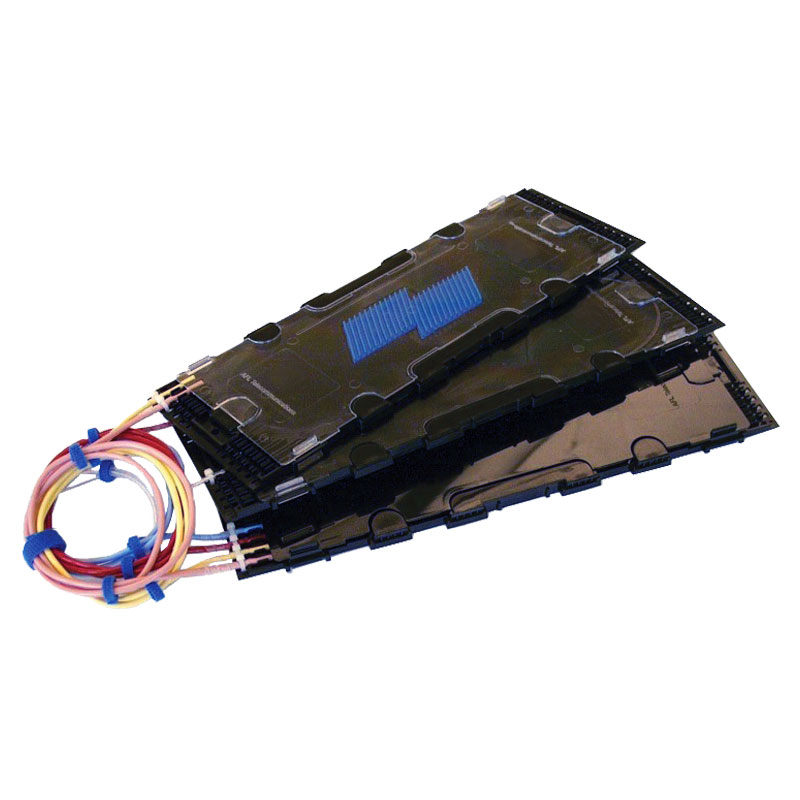

Las bandejas divisoras LightLink son un sistema empaquetado que incluye divisores PLC preinstalados en fábrica y bandejas de empalme, y tecnología planar con características ópticas que incluyen baja pérdida de inserción, alta uniformidad y excelente estabilidad ambiental.
603d7fb9fdd4407d8255f9bf9e626eb2
© 2008, AFL, all rights reserved. PP-2-00148, Revision 6, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity The LightLink Splitter Trays are a packaged system that include factory-preinstalled PLC splitters and splicing trays which easily fit within AFL’s LG Series Closures, LL Series Wall Mount Cabinets and pedestals. These AFL splitter trays feature 1x4, 1x8, 1x16 or 1x32 planar technology with optical characteristics that include low insertion loss, high uniformity, and excellent environmental stability. The products are have longevity and durability in an Outside Plant application. The splitter couplers are factory-preinstalled and secured within the AFL splice trays. The trays are tamper-proof to prevent unwanted entry. With the lengthy transition tubing preinstalled, the device fibers are routed into the splice trays (included as part of the package) to help complete installations in a timely manner. No additional trays are required reducing material costs. LightLink Splitter Trays Optical Specifications PARAMETER VALUE 1 X 4 1 X 8 1 X 16 1 X 32 Wavelength Range 1260 - 1650 nm 1260 - 1650 nm 1260 - 1650 nm 1260 - 1650 nm Max. Insertion Loss 7.5 10.7 14.0 17.4 Max. Uniformity 1.0 1.0 1.2 1.7 PDL (dB) Max. 0.3 0.3 0.3 0.3 Return Loss 50.0 50.0 50.0 50.0 Operating Temperature (°C) -40 to 85 -40 to 85 -40 to 85 -40 to 85 This tray has capacity for up to 24 single fusion splices and are stackable with each other and other similar AFL splice trays. Ordering Information DESCRIPTION AFL NO. SIZE LightLink Splitter FC000898 Tray PKG 1x2 LightLink Splitter FC000571 Tray PKG 1x4 LightLink Splitter FC000539 Tray PKG 1x8 LightLink Splitter FC000538 Tray PKG 1x16 LightLink Splitter FC000537 Tray PKG 1x32 Features • Tamper-Proof Packaging • Fits in all AFL enclosures • No additional trays required • Color-coded transportation tubing Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE Telcordia GR-1209 GR-1221-CORE
Características:
- Embalaje a prueba de manipulaciones
- Encaja en todos los recintos AFL
- No se necesitan bandejas adicionales
- Tubo de transporte codificado por colores
- Cumple con Telcordia GR-1209 y 1221-CORE
