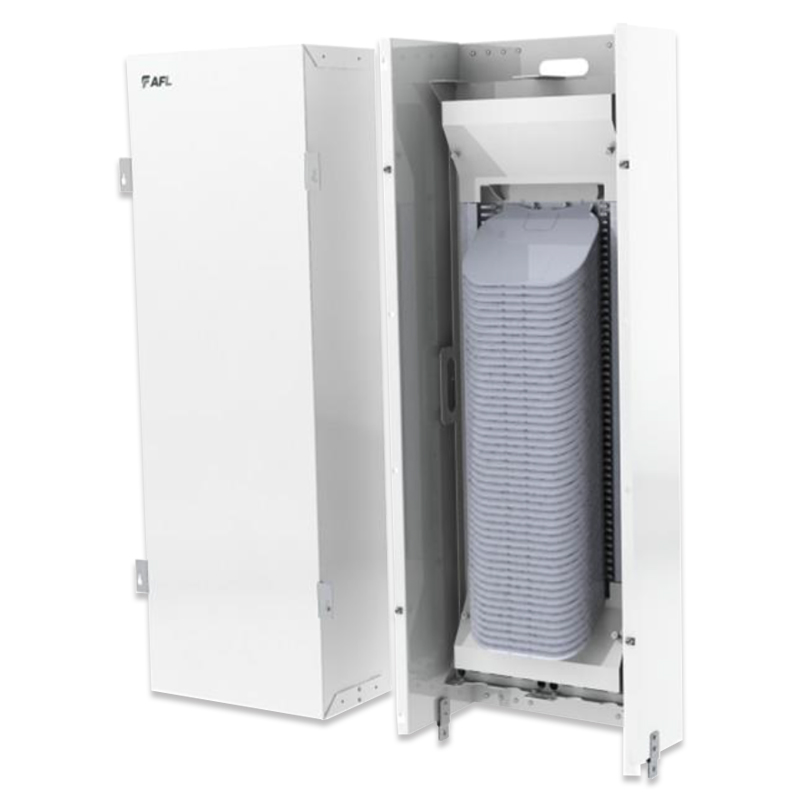

1 AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. PP-2-00401, Revision 1, 12.2.2024 Specications are subject to change without notice. Optical Connectivity 1 High-Capacity Mass Fusion Splice Cabinet Rack Mount Our compact, high-density, indoor Mass-Fusion Rack-Mount Splice Cabinets are perfect for data center interconnection applications. They are designed to provide a transition point between high-fiber count outside plant (OSP) and inside plant (ISP) cables as well as a distribution point for distributing a single high-fiber count cable to be spliced to several lower count cables. The cabinets feature secure, accessible splice trays stacked for easy access and management. The lightweight material of the cabinets makes them easier to install or mount, saving on installation time and cost. Features • Standard 19" rack mounting • Available in max 3456F and max 6912F capacity • Mass fusion splice for traditional ribbon fiber and SpiderWeb Ribbon ® (SWR ® ) fiber with option for single fiber splicing • Interchangeable cable tie-off brackets accommodate flexibility for various sizes of entry/exit cables • Easy-lift-off cover to access the Splice Tray Modular Backboard • Holes available for security padlock to secure cover to Splice Tray Modular Backboard Applications • Data Center Interconnect (DCI) • Building Entrance Facility (BEF) • External Network Interface (ENI) Specifications PARAMETER 3456F 6912F Dimensions (WxDxH) 482 x 232 x 926 mm 482 x 232 x 1282 mm Weight 19 kg 32 kg Fiber Count 3456 6912 Number of Splice Trays 24 48 Fiber Count per Splice Tray 144 144 Max Cable Diameter 34 mm 34 mm IP Rating IP10 IP10 Operating Temperature -40°C to + 60°C -40°C to + 60°C Color RAL7035 (Gray) RAL7035 (Gray) Finish Powder Coat Powder Coat continued 2 AFLglobal.com 1 (800) 235-3423 © 2024, AFL, all rights reserved. PP-2-00401, Revision 1, 12.2.2024 Specications are subject to change without notice. Optical Connectivity 2 High-Capacity Mass Fusion Splice Cabinet Rack Mount Contact AFL for more information. Ordering Information DESCRIPTION AFL NO. AFL High Capacity Cabinet Mass Splice Rack Mount 3456F (GY 7035) FXHLAKDXXX-01ZZ AFL High Capacity Cabinet Mass Splice Rack Mount 6912F (GY 7035) FXHLALDXXX-02ZZ ACCESSORIES (purchased separately) Fiber Splice Tray Single Splice 36F GY 7035 FXSAXXDXXX-15ZZ Fiber Splice Tray Mass Splice 144F GY 7035 FXSAXXDXXX-16ZZ Cable Tie Bracket for Mass Fusion Splice Cabinet up to 6 x Ø 13 mm Cables CTB613 Cable Tie Bracket for Mass Fusion Splice Cabinet up to 7 x Ø 10 mm Cables CTB710 Cable Tie Bracket for Mass Fusion Splice Cabinet up to 4 x Ø 13 mm Cables CTB418 Cable Tie Bracket for Mass Fusion Splice Cabinet up to 24 x Ø 12 mm Cables CTB2412 Cable Tie Bracket for Mass Fusion Splice Cabinet up to 2 x Ø 35mm Cables – Extended CTB235-EX Cable Tie Bracket for Mass Fusion Splice Cabinet up to 12 x Ø 10mm Cables CTB1210 Diagram 440 886 926 (included Padlock Hasp) 482 232 224 440 1242 1282 (included Padlock Hasp) 482 232 224 3456F Cabinet 6912F Cabinet
