The One-Click® Cleaner is designed to clean MPO and MTP® multi-fiber connectors used in Data Centers and other high density optical networks. The One-Click Cleaner MPO / One Click Cleaner MPO-16 are revolutionary push-type cleaners which simplify cleaning of the ferrule end-face of both exposed MPO/MTP® connectors and MPO/MTP® connectors in adapters, both 12 fiber and 16 fiber (including multi-row variants). The One-Click Cleaner MPO / MPO-16 use the innovative push-to-clean design.
156c268ed3d149fc87695b53017f6f91
Features:
- Ergonomic, comfortable design with single One-Click action cleaning
- Automatically advance ensures each clean is performed with fresh cleaning tape
- 500 cleans per unit
Applications:
- Ideal for Data Centers and other high density optical networks
- Designed to work on MPO/MTP multi-fiber connectors including 4, 8, 12, 16, 24, 32, 48, and 60 fiber
- Cleans connectors on jumpers and in adapters (plugs and ports)

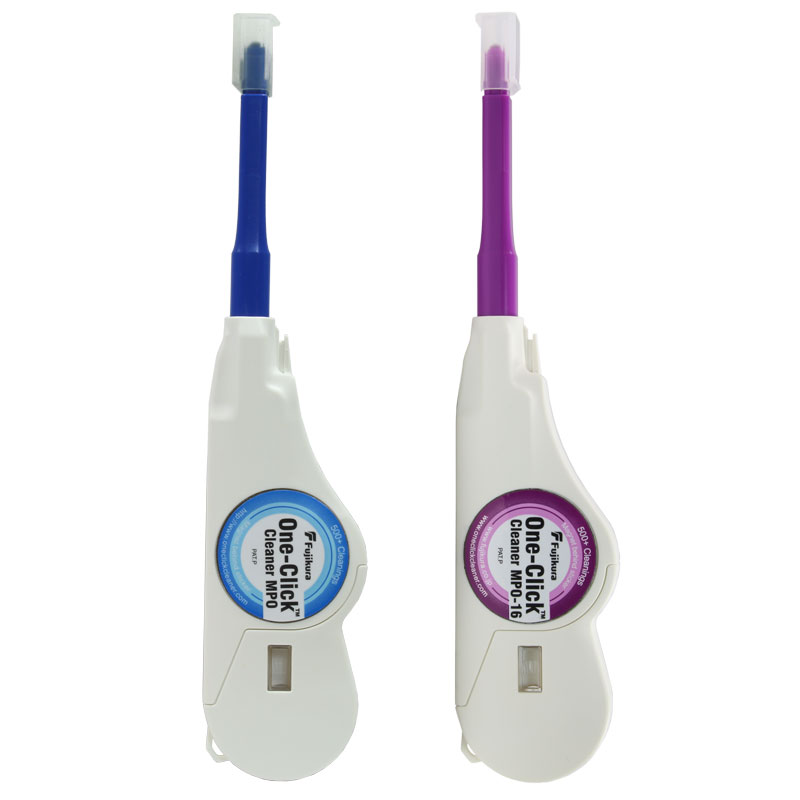

One-Click® Cleaner MPO / One-Click® Cleaner MPO-16
The One-Click Cleaner is designed to clean MPO and MTP® multi-fiber connectors in data centers and other high-density optical networks. The One-Click Cleaner MPO / One-Click Cleaner MPO-16 are revolutionary push-type cleaners that simplify cleaning of the ferrule end-face of both exposed MPO/MTP® connectors and MPO/MTP® connectors in adapters, both 12 fiber and 16 fiber (including multi-row variants).
As with all One-Click Cleaners, the One-Click Cleaner MPO/MPO-16 uses the innovative push-to-clean design. The mechanical push action advances the optical-grade cleaning tape while effectively and gently cleaning the connector's end face.
One-Click® MPO-16
The One-click MPO-16 is intended for cleaning 16-fiber MPO/MTP connectors, both pinned (male) and socketed (female). MPO-16 is used with IEEE 802.3bs 400G trunk cabling, with each fiber carrying 25 Gbps data signals (400GBASE-SR16, for example), among other applications.
Ordering Information:
|
MODEL
|
DESCRIPTION
|
AFL NO.
|
|
One-Click MPO-16
|
One-Click Cleaner MPO-16 (500+ cleans)
|
8500-05-0013MZ
|
|
One-Click MPO
|
One-Click Cleaner MPO (MPO/MTP®, 500 cleans)
|
8500-05-0030MZ
|
