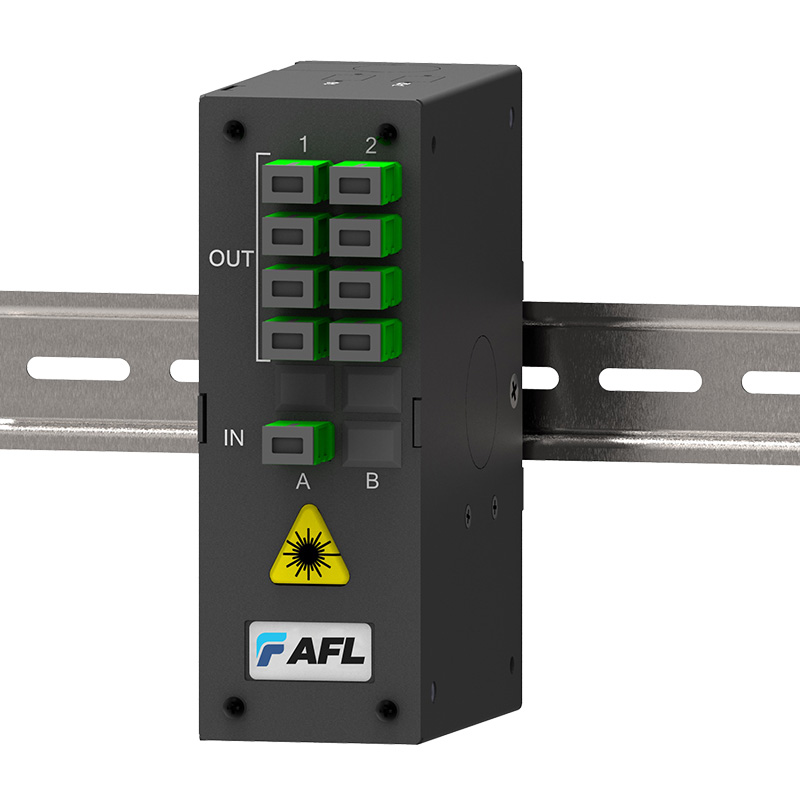

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com Fibre Passive Devices 1 © 2002-2020, AFL, all rights reserved. 1099, R evision 2 , 2 4.03.20 Specications are subject to change without notice. Mini DIN Rail Mounted Splitter Enclosure AFL’s mini DIN rail mounted splitters are the ideal splitter for use in GPON installation where splitting is to be performed in shallow cabinets. Offering standard split ratios of 1:4 and 1:8, our DIN rail splitter provides plug and play interconnection into passive optical networks. Applications • PON/POL Installations Features • Compact size • DIN rail mount • Plug and play solution Specifications DESCRIPTION 1:4 Mini DIN Rail Splitter 1:8 Mini DIN Rail Splitter Attenuation < 7.2 dB < 10.5 dB Dimensions (w x h x d) 54.5 x 155 x 133 mm Material and Colour Powder coated 1.6 mm zinc annealed steel – AFL Grey Ordering Information PART NUMBER DESCRIPTION FPD-OS114SCA1-D1 1 x 1:4 PLC Splitter DIN Rail, 1260-1650 nm FPD-OS118SCA1-D1 1 x 1:8 PLC Splitter DIN Rail, 1260-1650 nm Also available in alternative configurations Associated Products • AFL GPON Solution • Fibre Passive Devices
