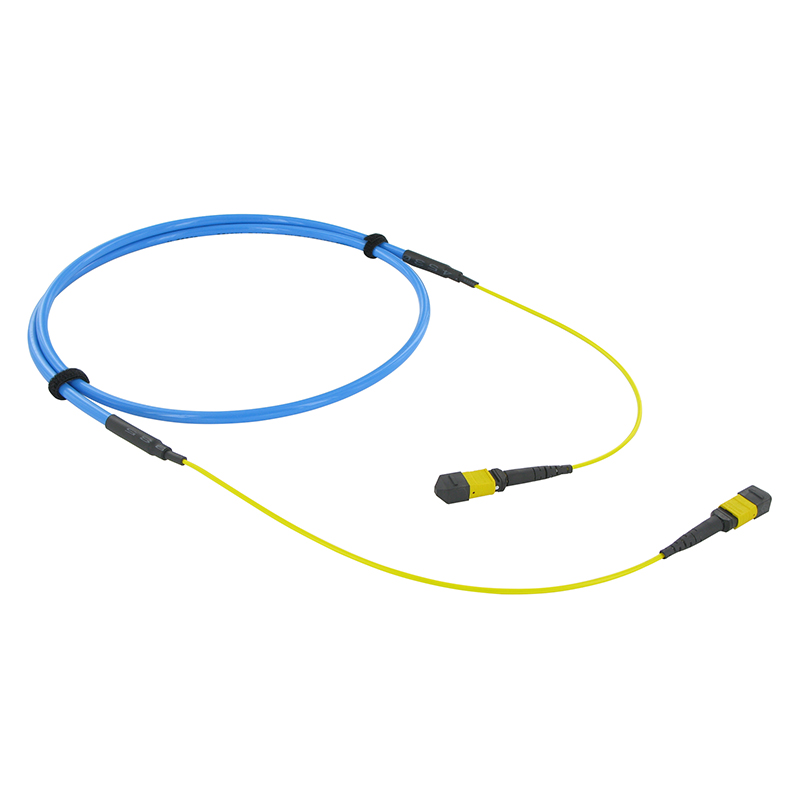

Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 1 © 2002-2025, AFL, all rights reserved. 2385, Revision 01, 10.12.25 Specifications are subject to change without notice. MTP ® Outdoor Cable Assemblies Features • Fully pre-terminated multi-fibre plug & play operation improves speed or network deployment • Pigtail option for splicing into high core-count backbones • A range of compact loose tube and tactical cable designs to allow ease of installation Applications • Infrastructure, Telecommunication outside plant • Industrial, Battery Energy Storage Systems (BESS) networks • Lead-in and drop cable customer connections • Campus Interconnect • External cabinet connectivity feed-in AFL MTP ® Outdoor Cables offer a low loss plug and play solution for external applications. These 12F to 288F pre-terminated cable assemblies are designed to meet the increasing demands of high bandwidth applications in outside plant environments while minimising network build times. Cable Options For MTP ® Outdoor Cable Assemblies, AFL have carefully selected several cables that will meet the criteria of most outdoor installation environments. Other cable options are available upon request. RMU – LQD Mini Axial Loose Tube Cable Axial loose tube cable comprising of 12 optical fibres contained in a jelly-filled loose tube strengthened with flexible non-metallic elements bonded to a polyethylene (PE) sheath and an outer UV stable, termite resistant Nylon jacket. Termite Resistant Nylon Jacket Polyethylene Sheath Flexible Non-metallic Strength Element Moisture Resistant Jelly-Filled Loose Tube Optical Fibre RUA – RLD Axial Non-Metallic Flat FRP Loose Tube Engineered to withstand high tensile and crush loads, the Non-metallic Flat FRP Armoured Cable integrates 12 fibres in a jelly-filled axial loose tube construction. Key to the high strength design is the use of 6 x Flat FRP strength elements providing enhanced tensile and crush performance characteristics. Coupled with the Flat FRP Armour against rodent attack, the Nylon jacket provides an insect (termite) resistant layer, strategically positioned to ensure longevity. The cable is then sheathed with an outer UV stabilized Polyethylene compound. Outer Polyethylene Sheath Flat FRP Rod Armour Termite Resistant Nylon Jacket Inner Polyethylene Sheath Flexible Non-metallic Strength Element Moisture Resistant Jelly-Filled Loose Tube Optical Fibre 12F RLD Non-Metallic Flat FRP Loose Tube Cable - Cross Section 12F LQD Mini Axial Loose Tube Cable - Cross Section MTP is a registered trademark of US Conec, Ltd. 12F RMU Cable Assembly 144F LTS Cable Assembly Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 2 © 2002-2025, AFL, all rights reserved. 2385, Revision 01, 10.12.25 Specifications are subject to change without notice. MTP ® Outdoor Cable Assemblies TAC – Tactical Micro Cable AFL Tactical Micro Cable is ideal for use in installations where extreme environmental conditions are present. Designed for indoor / outdoor applications, AFL Tactical Micro Cable is flame retardant and suitable for direct MTP termination. LTS – LMD Stranded Loose Tube Stranded cable comprising of up to 288 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with Polyethylene (PE) and UV stable, termite resistant nylon jacket. Further processing to Stranded cables can add either an additional UV stable, sacrificial PE outer sheath for installation through torturous paths, as well as Non-Metallic Armouring (NMA) + sacrificial sheath for added rodent resistance, robustness and tensile strength. Connector Specifications MTP Elite ® OPTICAL PERFORMANCE MULTIMODE 850 nm (PC POLISH) SINGLE-MODE 1310 nm (APC POLISH) TEST METHOD Insertion Loss (Max.) ≤ 0.35 dB ≤ 0.35 dB IEC 61300-3-4 Return Loss (Max.) ≥ 20 dB ≥ 60 dB IEC 61300-3-6 12F Tactical Micro Cable - Cross Section 72F LMD Stranded Loose Tube Cable - Cross Section 12F Sub-unit Polyethylene Sheath Polyurethane Jacket Termite Resistant Nylon Jacket Water Blocking Aramid Strength Member Moisture Resistant Jelly-Filled Loose Tube 250μm Coated Fibre Optical Fibre Central Strength Member Dry Water Blocked Core Central Strength Member * When installation aids are part of the assembly, the gland will be fixed behind a heatshrink bump, 60mm back from the breakout module. See ‘Installation Aids’ for more details END A Gland* Gland* Breakout Length Breakout Length 60mm 60mm Cable Cable Assembly Length (metres) END B 12F Assemblies (RUA/RMU/TAC/LTS) For 12F MTP ® cable assemblies, the customer ordered length is measured between the connector ferrules on each end. Breakout length is measured from the tail end of the breakout module point to the connector ferrule Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com MTP Cabling System 3 © 2002-2025, AFL, all rights reserved. 2385, Revision 01, 10.12.25 Specifications are subject to change without notice. MTP ® Outdoor Cable Assemblies RMU, TAC RUA, LTS Gland Type / Size Spiral, M20 Compression, M20 Approx. O.D 35mm 40mm 3 3 1 1 2 2 3 3 4 4 1 1 4 4 2 2 RMU Installation Aid shown END A Gland* Gland* Breakout Length 50mm 50mm 50mm 50mm 50mm 50mm Breakout Length 60mm 60mm Cable Cable Assembly Length (metres) END B Installation Aids Installation aids are designed to protect the MTP ® connector during hand hauling installation. 24F to 288F Assemblies (LTS) For LTS cable assemblies greater than 12F, the connectors will be staggered in individual connector groups, increasing in length by 50mm per group. The customer ordered length is measured between the connector ferrules in the first groups on each end. Ordering Information Connector Type: 12F = 12F Female 12M = 12F Male 12FM = 12F Female End A / 12F Male End B 12MF = 12F Male End A / 12F Female End B Polarity: A = Type A (Straight through) B = Type B (Ribbon Flip) C = Type C (Pair Cross) Length 2 : 20 = 20m 100 = 100m 1500 = 1500m Installation Aids 4 : 5 = Installation Aid End B 6 = Installation Aid End A & B Fibre Type: 1 = Single-mode 4 = OM4, Bend Tolerant Cable Type: RMU = LQD Mini Axial Loose Tube RUA = RLD Axial Flat Rod NMA Loose Tube TAC = Tactical Micro Cable LTS = LMD Stranded Loose Tube Fibre Count: 12 = 12F 24 = 24F 48 = 48F 72 = 72F 96 = 96F 144 = 144F 288 = 288F Product Type 1 : MT = MTP Outdoor Cable Assembly PMT = MTP Outdoor Pigtail Assembly Internal Use Breakout Length 3 : 1 = 500mm 2 = 1000mm 3 = 1500mm 4 = 2000mm 5 = 2500mm 6 = 3000mm 7 = 3500mm 8 = 4000mm Oversleeve Colour: YL = Yellow AQ = Aqua Oversleeving O.D: RMU / RUA = 4.8mm TAC / LTS = 3mm MT 12 YL C 1 0 6 K 1 12F RMU 100 1. For all Product Types, if shipping reel is required, 'Connector End A' will be on the outside (exposed) end of the reel. 'Connector End B' will be on the inside of the reel. For 'PMT - Pigtail' assemblies, Blunt will be End A, MTP End B. 2 . Cable assemblies ≥40m will be on reel. 3 Max. breakout length for LTS assemblies is 1500mm. 4. Applicable installation aids and glands are dictated by assembly configuration. Note: For other cable types, please contact AFL. * When installation aids are part of the assembly, the gland will be fixed behind a heatshrink bump, 60mm back from the breakout module. See ‘Installation Aids’ for more details
