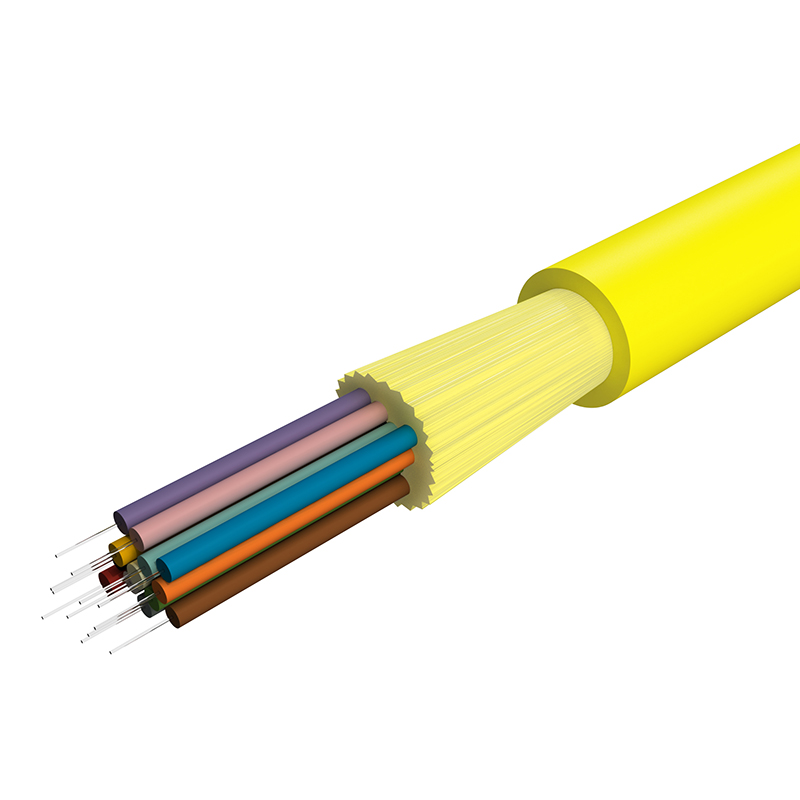

Fibre Optic Cable Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com 1 © 2002-2024, AFL, all rights reserved. 2039, Revision 03, 02.10.24 Specifications are subject to change without notice. Indoor/Outdoor Premise Tight Buffered Cable The AFL Indoor/Outdoor multi-fibre premise cables are constructed using 900 micron LSZH tight buffer fibres, stranded with water blocking aramid yarns and sheathed with a UV stable LSZH outer jacket. Specified for campus network cabling between buildings, where interbuilding lengths are short enough that the installer can recognize savings from the lower costs of terminating tight buffered cables. For indoor applications, the cable is constructed completely of LSZH materials, PVC Free. For outdoor applications, the cable incorporates ‘Dry’ water blocking properties suitable for protected use in external covered tray or free draining conduit. Features • Available with 2 to 24 fibres • Water-blocked • LSZH UV-resistant outer jacket 1 • PVC Free construction • RoHS 3 (EU Directive 2015/863) • Flame retardant - AS/NZS IEC 60332.1 Applications • Campus LAN • Building Interconnections • LSZH inside plant and outside plant environments Cable Components Fibre Specifications CORE SIZE/ FIBRE TYPE ISO/ IEC MAX. ATTENUATION ( D B/KM) OVERFILL LAUNCH MIN. BANDWIDTH (MHZ•KM) G-ETHERNET MAX. LINK DISTANCE (METERS) 10G-ETHERNET MAX. LINK DISTANCE (METERS) 850 NM (MM) 1300 NM (SM) 1310 NM 1550 NM 850 NM (MM) 1300 NM (SM) 1310 NM 850 NM (MM) 1300 NM (SM) 1310 NM 850 NM (MM) 1300 NM (SM) 1310 NM (62) 62.5μm Multimode OM1 3.0 1.2 N/A 200 500 300 500 — — (53) 50μm Multimode OM3 3.0 1.2 N/A 1,500 500 1,000 550 300 — (55) 50μm Multimode OM4 3.0 1.2 N/A 3,500 500 1,040 550 530 — (1F) Single-mode (ITU G.652.D/G.657.A1) OS1 / OS2 N/A 0.4 0.3 N/A N/A N/A 5,000 N/A 10,000 Outer LSZH Jacket 900μm LSZH Tight Buffered Fibre FRP Central Strength Member Aramid Yarn Reinforcement 'Dry' Blocked Core Fibre Optic Cable Australia: 1300 232 476 New Zealand: 09 927 7140 www.AFLglobal.com 2 © 2002-2024, AFL, all rights reserved. 2039, Revision 03, 02.10.24 Specifications are subject to change without notice. Indoor/Outdoor Premise Tight Buffered Cable Mechanical Data CABLE TYPE PART NUMBER FIBRE COUNT NOM. DIAMETER NOM. WEIGHT MAX TENSILE (INSTALLATION) MIN BEND RADIUS (MM) CRUSH ( K N/100MM) IMPACT (MM) (KG/KM) ( K N) UNDER LOAD (20 X OD) NO LOAD (10 X OD) SHORT TERM LONG TERM (J) Indoor/ Outdoor Tight Buffered Cable TVBQ**AA002 †† 2 5.2 28 1 104 52 1.0 0.5 5 TVBQ**AA004 †† 4 5.4 30 1 108 54 TVBQ**AA006 †† 6 5.8 34 1 116 58 TVBQ**AA008 †† 8 6.3 41 1 126 63 TVBQ**AA012 †† 12 6.4 43 1 128 64 TVBQ**AA024 †† 24 8.1 63 1.3 162 81 ** Fibre Types - Replace (**) in AFL number with number in the Fibre Specifications table on previous page. †† Outer Jacket Colour - Replaces ( †† ) in the AFL number with letters in the Cable Jacket Colour table below Qualifications GOVERNING BODY STANDARD CODE COMPONENT AS/CA S008 Cable IEC 60794 Cable Standards Australia AS 1049 Materials IEC 60793 Fibre ITU-T G.652.D / G.657.A1 / G.651.1 Fibre TIA 598-D Fibre RoHS EU Directive 2015/863 Cable AS/NZS IEC 60332.1 Cable Cable Jacket Colour †† Options BE - Blue BK - Black OE - Orange YW - Yellow GN - Green VT - Violet BN - Brown PK - Pink GY - Grey AQ - Aqua WE - White EV - Erika Violet RD - Red 1 All jacket colours are UV stable however not suitable for prolonged direct UV exposure For best performance AFL recommends a Black Outer Jacket Temperature Specifications TEMPERATURE RANGE Installation 0°C to +60°C Operation -10°C to +70°C Storage -10°C to +70°C Contact AFL for additional information or cable design assistance
